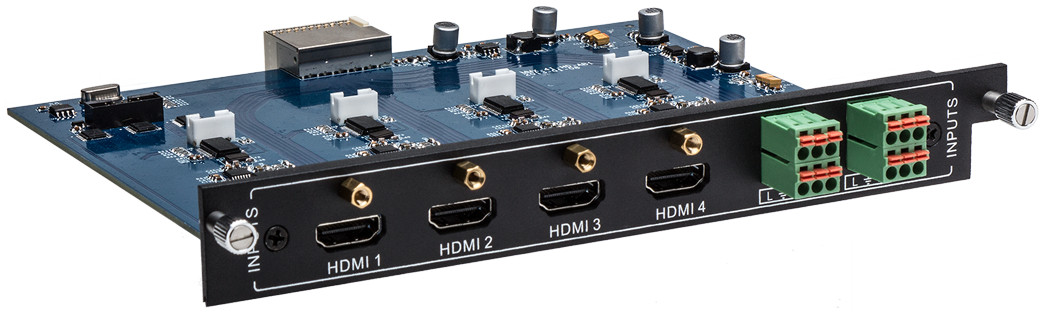

Intelix FLX-HI4A
4-Port HDMI Input Card for FLX-88, FLX-1616, FLX-3232

OUR PART #:  FLX-HI4A

Features: HDMI input card for FLX-88, FLX-1616...
Learn More
Our Price: $740.66
List Price: $822.95
You save 10%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Intelix FLX-HI4A
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Features:

  • HDMI input card for FLX-88, FLX-1616, FLX-3232
  • Four HDMI inputs
  • Stereo analog audio embedding on each input
  • HDMI and HDCP compliant

Applications:

  • Designed for use with FLX-88, FLX-1616, FLX-3232
  • Ideal for corporate facilities, churches, schools, conference centers, and any other application requiring HDMI connectivity

Specifications:

  • I/O Connections:
    HDMI Input: Four (4) HDMI Type A Receptacle Connector
    Analog Audio In: Four (4) 3 pole Euroblock Connectors
    Supported Audio and Video:
    Maximum Video Compatibility: Deep Color 48/36/30/24 Bit at 1080p, 3D
    Video Compliance: HDMI and HDCP (Selectable)
    HDMI Audio Compatibility: Up to PCM 8 channel, Dolby Digital TrueHD, and DTS-HD Master Audio
    Analog to Digital Conversion Audio Format: PCM 2 Channel 48kHz
  • Analog Audio:
    Performance per Channel: Unbalanced Stereo Audio, -10 dBV nominal
    Pinout (Left to Right): Left (+), Ground, Right (+)
    Input Impedance: >10kO
    Frequency Response: 20 Hz to 20 kHz, ±0.5 dB
    THD + Noise: < 0.002% from 20 Hz to 20 kHz
  • HDMI Signal Characteristics:
    Bandwidth: 340 MHz (10.2 Gbps)
    Gain: 0 dB
    Resolution Range: Up to 1920x1200
    Crosstalk: < -50 dB at 5 KHz
    Input Level: TMDS 2.9V/3.3V
  • Chassis and Environmental:
    Construction: Plug-in card with keyed black metal plate
    Shipping Weight: 0.45 kg (1 lbs.)
    Operating Temperature: 0° to +40° C (+32° to +104° F)
    Operating Humidity: 20% to 90%, Non-condensing
    Storage Temperature: -10° to +60° C (+14° to +140° F)
    Storage Humidity: 20% to 90%, Non-condensing
  • Other:
    Warranty: 2 years
    Matrix Switcher Compatibility: FLX-88, FLX-1616, FLX-3232
