Ensemble Designs BEM-2
BrightEye Mitto HD/SD Scan Converter


The BrightEye Mitto™ family of high performance scan converters provide a new way to take just about any source to HD or SD SDI video.
Learn More
Our Price: $2,375.00
List Price: $2,500.00
You save 5%!
Write the first review.
Ensemble Designs BEM-2
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The BrightEye Mitto™ family of high performance scan converters provide a new way to take just about any source to HD or SD SDI video. Computer video can now be used for the most demanding applications including broadcast, high-end military, medical, classroom, church and corporate.

All BrightEye Mitto units convert YouTube, Skype video, weather radar, emails and maps to video. Just a small part of the screen, such as a Skype window, can be selected with a mouse and converted to full screen HD. Ensemble uses the latest technology in its proprietary upconversion and filtering and that means you have the best looking video.

All Mitto units accept VGA, DVI and HDMI input signals from PC and Mac computers.


  • Best way to bring YouTube™, Skype™, Weather Radar, Maps and Emails to Video for Production Use
  • Use with all Types of Macs and PCs including Laptops, iPhone® and iPad™
  • DVI I/O, VGA and HDMI Support with an Adapter
  • Choose a Mitto with Adjustable Audio Delay for Skype and Broadcast Applications
  • Genlock and Time to House Reference, Fully Timeable
  • Memory Presets for Your Favorite Settings
  • Memory Presets for Your Favorite Settings
  • High Performance Scan Converter for PC and Mac
  • Superior Quality– Proprietary Scaling and Filtering System Provides Maximum Detail, Flicker-Free Video Output

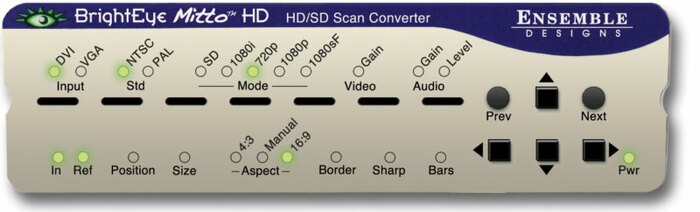

  • Intuitive Front Panel Controls
  • Output Choices: HD, SD SDI, Composite Video
  • Auto senses DVI or VGA
  • Use a Mouse to Select the Part of the Video You Want to Output
  • Easily Adjust Video Parameters and Select Video Output Format
  • Genlock and Time to House Reference, Fully Timeable
  • Rackmountable


Computer Input

  • Number: One
  • Type: DVI (Supports HDMI or VGA with adapter)
  • Connector: DVI-I
  • Resolution: Up to 1920 × 1080

Reference Input

  • Number: One, BNC
  • Type:  1 V P-P Composite Video PAL, NTSC, Tri-Level Sync
  • Impedance: 75 Ohm
  • Return Loss: >40 dB

Note: When no reference is provided, Mitto runs from an internal "sync gen grade" precision frequency reference.

Analog Audio Inputs

  • Number: One stereo pair
  • Connector: 1/8” mini jack
  • Impedance: >15K ohm
  • Max Input Level: 24 dBu
  • Quantization: 24 bits, 128 x oversampled
  • Sample Rate: 48 KHz
  • Reference Level: -10 dBu or +4 dBu
  • Frequency Response: ±0.1 dB, 20 Hz to 20 KHz
  • Crosstalk: <106 dB
  • Dynamic Range: >106 dB

AES/EBU Digital Inputs

  • Number: Two (four channels)
  • Type: AES3id, S/PDIF
  • Connector: 1/8” mini jack
  • Bit Depth: 20 and 24 Bit
  • Sample Rate: 30 KHz to 192 KHz (Sample Rate Converted Internally to 48 KHz)

Serial Digital Output

  • Number: Two, BNC
  • Signal Type:
  • SDI, SMPTE 259M
  • HD SDI,SMPTE 424M, 425


  • 16 bit processing
  • 12 and 14 bit upconversion
  • Delay: Adjustable from 16 msec to 40 msec

Note: Output is fully timeable with respect to the reference input.

  • Audio: Embedded
  • Impedance 75 ohm
  • Return Loss:
      -  >15 dB to 1.485 GHz
      -  >10 dB to 2.97 GHz
  • Output DC: None (AC coupled)

SDI Standard Supported

  • 1080i 50, 59.94 or 60 Hz, SMPTE 274M -4,5,6
  • 720p 50, 59.94 or 60 Hz, SMPTE 296M -1,2,3
  • 525i, 625i (SMPTE 259M)
  • Also supports: 1080p 50, 59.95 or 60 Hz, SMPTE 424M, 425M, Level A

Analog Video Output

  • Number: One, BNC
  • Type: Composite PAL or NTSC (when SD is selected on the SDI output)
  • Return Loss: >40 dB
  • Output DC: <100 mV

Computer Monitor Output

  • Number: One, looping
  • Type: DVI (Supports HDMI or VGA with adapter)
  • Connector: DVI-I
  • Format: Follows input


  • Number: One
  • Connector: 9 pin D
  • Type: RS-232, GPI

General Specifications

  • Size: 5.625” W x 1.7” H x 5.5” D (143 mm x 20 mm x 140 mm) including connectors
  • Weight: 1 lb 6 oz
  • Power: 12 volts, 12 watts (100-230 VAC modular power supply)
  • Temperature Range 0 to 40° C ambient (all specs met)
  • Relative Humidity 0 to 95° non-condensing
  • Altitude: 0 to 10,000 feet

NOTE: Due to ongoing development, prices and specifications subject to change without notice.

What's in the Box:

  • 1 USB cable
  • 2 VGA to DVI adapters
  • 1 modular power supply
  • BrightEye Software for Mac and PC
