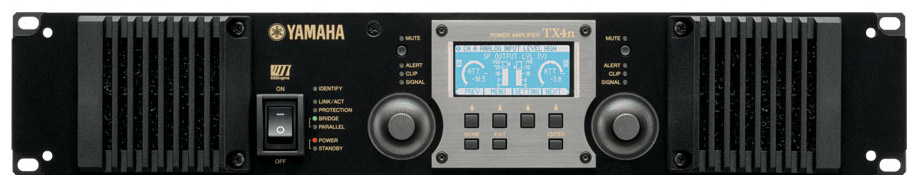

Yamaha TX4N
2Ch TXn Series 2000W @ 4 Ohms DSP Power Amplifier for MY Card


Call for price! Not available online.

Recommended Accessories
The DSP enabled TXn series provides many more benefits than simply saving precious rack space or eliminating cabling.


Onboard DSP
Digital signal processing is an area in which Yamaha quality is legend. All three TXn models incorporate a sophisticated 24-bit ADDA 96-kHz DSP engine that affords an extraordinary range of control and processing capabilities. In addition to basic amplifier control and status monitoring, there is enough DSP power built in to provide extensive speaker processing capabilities that will make external processors unnecessary in most applications. The TXn provides separate input and output processing. The onboard DSP parameters and functions can be accessed directly through the LCD and button interface provided on the front panel of the amplifier, or via Yamaha's amplifier control software running on a computer connected via Ethernet.

Flexible Input Configuration
The TXn series amplifiers feature a Yamaha mini-YGDAI standard card slot that comes fitted with an AES/EBU I/O card for digital input and throughput. The amplifier's balanced analog inputs and throughputs are permanently installed on the rear panel. The analog and digital inputs can be used independently, or signals can be applied to both and mixed or switched automatically for emergency announcements, for example. The original AES/EBU I/O card can be replaced with compatible Yamaha mini-YGDAI cards that provide other digital or analog input/output formats, or with network cards that allow full compatibility with CobraNet or EtherSound audio networks.


  • Rental companies can simplify warehouse inventory — The TXn series amplifier are multi-functional amplifiers that can be used to drive various speaker systems.
  • Truly versatile: Not only is the TXn flexible in its I/O formats, but voltage gain/ sensitivity can be adjusted in 0.1dB steps. The TXn can be configured to use with any kind of system.
  • TXn can accept multiple digital formats. Staying digital longer with the TXn allows for better S/N structure. Cabling is also lighter with digital.
  • Precise control and monitoring of your amplifiers: Detailed control and monitoring parameters unimaginable with conventional amplifiers are now available from a remote location.
  • Failsafe security: Combination of analog inputs and card slot inputs provides failsafe signal redundancy. The ultra low latency AES/EBU card's "THRU" output is designed to send signal even in case of power failure on the amplifier.


See Detail Tab above for PDF specificatons.

16 Channel CobraNetâ„¢ network I/O cardYamaha MY16-CII 16 Channel CobraNetâ„¢ network I/O card

16 Channel I/O CobraNetâ„¢ interface that integrates into any standard CobraNetâ„¢ network. Primary and secondary network connections (2 RJ45 connectors), and reduced power consumption for compatibility with additional models.

Call for info!

8-Channel A/D Converter, 24-bitYamaha AD8HR 8-Channel A/D Converter, 24-bit

Awe-inspiring sound quality derived from the PM5000 with sampling rates of up to 96kHzIt goes without saying that head amplifiers play a vital role in determining the sound quality of any analog-to-digital converter, and for this reason, ...

Call for info!

8 channel AES/EBU format I/O with REF VIDEO InputYamaha MY8AEB 8 channel AES/EBU format I/O with REF VIDEO Input

The MY8-AEB is one of Yamahas MY-series plug-in interface cards, providing expanded I/O functionality for compatible Yamaha digital audio products. Specifically, the MY8-AEB provides 8 channels of AES-3id-1995 standard (75O BNC connectors) ...

Call for info!

8-Channel Microphone AmplifierYamaha MLA8 8-Channel Microphone Amplifier

The MLA8 is an eight-channel head amplifier inheriting top-performance head amp technology from Yamaha's acclaimed DM2000 digital mixing console. In a compact 1U unit the MLA8 features a 26 dB pad, adjustable 44 dB gain trim, an 80 Hz ...

Call for info!
