Liberty AV Solutions 22-6C-PSH-WHT

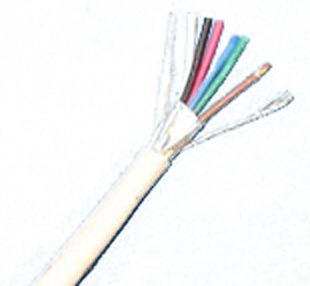

1000' White Commercial Grade 22 AWG 6 Conductor Plenum Shielded Cable

OUR PART #:  22-6C-PSH-WHT

Liberty AV's 22-6C-PSH-WHT is a 1000 ft. reel of white commercial grade general purpose 22 AWG 6 conductor plenum shielded cable.
Learn More
Our Price: $379.80
List Price: $422.00
You save 10%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Liberty AV Solutions 22-6C-PSH-WHT
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Liberty AV's 22-6C-PSH-WHT is a 1000 ft. reel of white commercial grade general purpose 22 AWG 6 conductor plenum shielded cable.

Features:

  • 7-Strand Annealed Bare Copper Conductors
  • Plenum rated PVC Alloy Insulation
  • Twisted, shielded
  • Plenum rated PVC Alloy Jacket
  • NEC CMP, CEC CMP FT6, RoHS Compliant
  • 1000 Foot Spools

Applications:

  • Low Voltage Security and Control
  • Low Power Speaker systems, distributed audio
  • DC Power, Class 2 and Class 3 power

Specifications:

Summary SECURITY Wire: 22/6 stranded twisted shielded 300V CMP jacketed .162 OD
Conductor Count 6
Conductor Group Conductor
Conductor Total 6
Conductor Gauge 22 AWG
Strand Count 7
Strand Gauge 30 AWG
Conductor Composition BC - BARE COPPER
Conductor Diameter 0.030 Inches
Conductor Insulation Composition PL-PVC - PLENUM RATED POLYVINYL CHLORIDE
Conductor Insulation Thickness 0.007 Inches
Conductor Insulation Diameter 0.044 Inches
Conductor Lay 4
Conductor Twist per Foot 3.00
Conductor Color Code BLACK, RED, WHITE, GREEN, BROWN, BLUE
Shield Component AP - ALUMINUM/POLY FOIL OUT
Shield Coverage 100%
Shield Drain Gauge 24 AWG
Drain Strand AWG 32
Drain Composition TC - Tinned Copper
Ripcord Present YES
Jacket Composition PL-PVC - PLENUM RATED POLYVINYL CHLORIDE
Jacket Thickness 0.015 Inches
Overall Diameter 0.162 Inches
Jacket Colors YELLOW; WHITE
Weight 27
Bend Radius 1.62
Temperature Rating 60 Degrees Celsius
NEC Rating CMP
NEC Art 800
CEC Rating CMP
ROHS Rate Yes
ROHS Date 15-Jun-2005
Foot Marker YES
