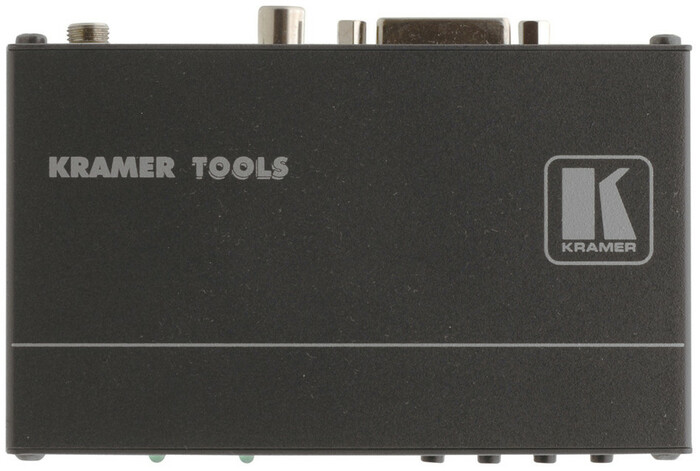

Kramer VP-506
DVI & Computer Graphics Video Scan Converter

OUR PART #:  VP506

The Kramer VP-506 is a high-quality scan converter for down-scaling DVI, computer graphics (VGA) and component video (YPbPr) to PAL or NTSC video.
Learn More
Our Price: $476.00
List Price: $595.00
You save 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer VP-506
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products
The Kramer VP-506 is a high-quality scan converter for down-scaling DVI, computer graphics (VGA) and component video (YPbPr) to PAL or NTSC video. It supports VGA up to UXGA, as well as component resolutions up to 1080p.

Kramer VP-506 Features:

  • Max. Resolution:  UXGA & 1080p.
  • HDTV Compatible Input.
  • Selectable Video Standards:  PAL or NTSC.
  • Memory Locations:  Saves and recalls up to four setups, including picture, input, output, zoom and advanced feature setups.
  • Built-In ProcAmp Features:  Color, sharpness, contrast and brightness.
  • Control:  Front panel buttons and OSD (on screen display).
  • Compact Kramer TOOLS™:  3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter.

Kramer VP-506 Specifications:

  • Input: 1 DVI-I (DVI-D, VGA, YPbPr) on a 24-pin Molex connector.
  • Output: 1 composite video, 1Vpp/75Ohm on an RCA connector.
  • Input Resolutions: Up to WUXGA/1080p.
  • Controls: Front panel and OSD: ProcAmp video controls, freeze, underscan /overscan, 8 color bars.
  • Power Consumption: 5V DC, 540mA.
  • Operating Temperature: 0° to +55°C (32° to131°F).
  • Storage Temperature: -45° to +72°C (-49° to162°F).
  • Humidity: 10% to 90%, RHL non-condensing.
  • Dimensions (WxDxH): 4.7" x 2.95" x 0.98" (12cm x7.5cm x 2.5cm)
  • Weight: 0.67 lbs. (0.3 kg) approx.
  • Accessories: Power supply, mounting bracket.
  • Options: RK-3T 19" rack adapter.
