Roland System Group R-88
8-Channel Recorder and Mixer

OUR PART #:  R-88

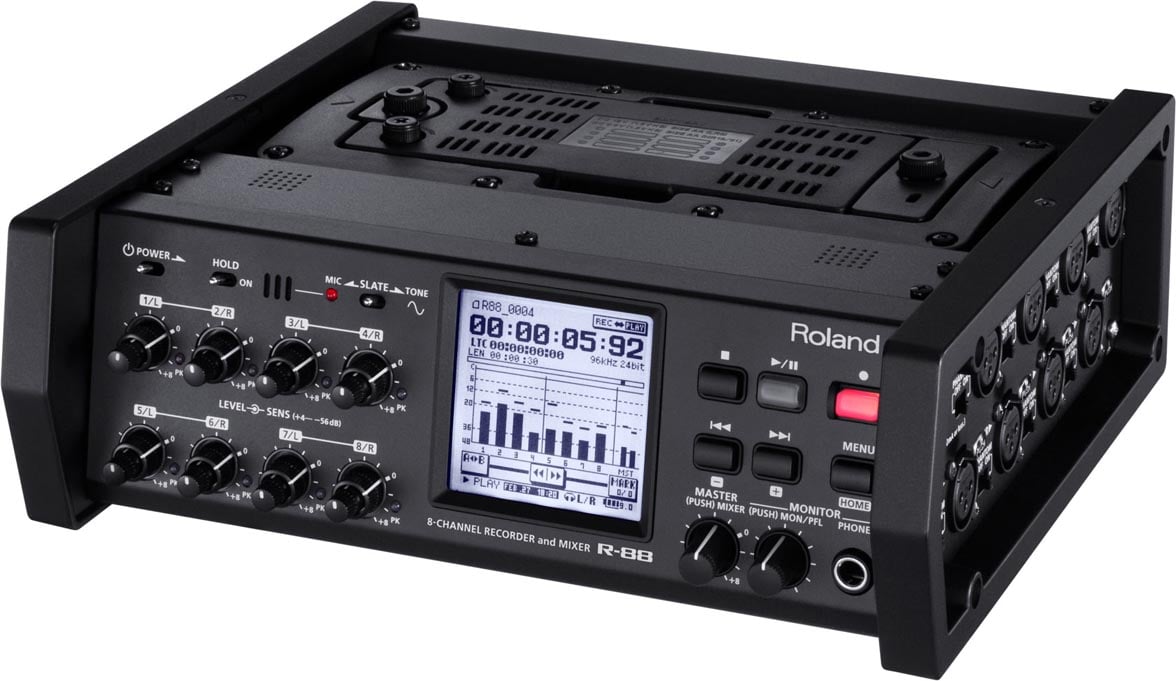

The Roland R-88 establishes a new standard in professional portable recording by providing seamless integration of a recorder, mixer and a multi-channel audio interface.
Learn More
R-88 - Buttons & Switches
R-88 - Input/Output Diagram
R-88 - Detachable Battery Pack (Open)

Click a thumbnail to see more images. (10 total)

Our Price: $1,995.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Roland System Group R-88
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Roland R-88 establishes a new standard in professional portable recording by providing seamless integration of a recorder, mixer and a multi-channel audio interface.  With eight discrete channels of audio recording plus a stereo mix, the R-88 is ideal for demanding multi-channel applications such as location sound design, event production, event videography, and live musical performance.


  • Simultaneous recording of 8 channels + stereo mix (up to 96kHz)
  • Up to 24-bit/192 kHz uncompressed linear PCM recording (up to 4 channels)
  • 3 hours of recording time using 32GB SDHC card (24bit/96kHz, 10ch)
  • 8 XLR inputs, 8 XLR outputs, AES/EBU input/output
  • Built-in 8 channel mixer with 3-band EQ and MS microphone decoder
  • Built-in 10 in/8 out USB audio interface to use with any common DAW
  • Touch Panel Display for intuitive navigation
  • SMPTE time code In/out for video sync
  • BWF and iXML embedded metadata
  • Supported power types – AA batteries, rechargeable Ni-MH battery, AC power, and 4-pin XLR external battery types.

Seamless integration of recording, mixing and an audio interface - a new dimension in professional portable recording.

The Roland R-88 includes all the features required by location sound professionals including a full on-board mixer, various timecode modes and slate tone/mic for memos.  The stereo mix output on the R-88 is perfect for location sound recording applications enabling a stereo mix back to the camera to record reference audio or provides a stereo monitor output while simultaneously recording individual tracks.  With 8 discrete outputs you can also embed the audio tracks into a SDI video feed by using a multi-channel SDI audio embedder.  It also features professional AES/EBU digital I/O to digitally record from or send to a mixing console or other digital source.

The R-88's built-in mixer is equipped with a 3-band EQ enabling a quality stereo mix to be monitored and/or recorded simultaneously along with each discrete audio track.  The large touch screen display enables clear and intuitive device setup and control.  You can lock the display and front controls to avoid any accidental operations.

Beyond field applications the R-88 is nicely suited for post-production environments featuring a built-in 10-input/8-output USB audio interface for multi-channel recording.  The eight-output ports are especially useful for surround projects.  The interface function is also able to provide a backup record mechanism simultaneously recording all tracks to a DAW of choice.

The R-88 supports BWF and iXML metadata including tags such as SCENE, TAKE, TIMECODE_RATE, etc.  This enables and intelligent and seamless interchange of data with editing systems such as Final Cut Pro and Pro Tools.

The R-88 is extremely portable weighing less than six pounds including eight AA batteries.  Optional accessories include a custom carrying bag, and remote footswitch controllers for start, stop and record, marking functions, etc.

Application Examples

Recorder Specifications:

  • Channels: 8 channels + 2 channels (stereo mix from built-in mixer) (44.1, 48, 88.2 and 96 kHz), 4 channels (192kHz)
  • Signal Processing: AD Conversion: 24 bits, DA Conversion: 24 bits
  • Data Type: Format: BWF (mono/stereo), Sampling Frequency: 44.1/48/88.2/96/192 kHz, Bit Depth : 16/24 bits
  • Recording Media: SDHC Memory Card: 4 GB to 32 GB, SD Memory Card: 2 GB

Mixer Specifications:

  • Mixing Channels: Input: 8 channels, Output: 2 channels (stereo)
  • Channel Strip: 3-band equalizer, Fader, Panpot, Stereo channel link
  • Master: Fader, Limiter

Audio Input and Output Specifications:

  • IN 1-8 (Analog Inputs): XLR type (Phantom powered):
    - Nominal Input Level:
    Input Sens Knob: -56, -50, -44, -38, -32, -26, -20, -14, -8, -2, +4 dBu (Input Level Knob: 0)
    Input Level Knob: Minus infinity to +8 dB
    - Maximum Input Level: +26 dBu
    - Input Impedance:
    Mic Input (Input Sens Knob: -56 to -20 dBu): 4 k ohms
    Line Input (Input Sens Knob: -14 to +4 dBu): 5.6 k ohms
  • OUT 1-2 (Analog Outputs): XLR type:
    - Output Bus: Channel 1/2, 3/4, 5/6, 7/8 or Stereo mix from internal mixer
    - Output Level: +4 dBu/-60 dBu
    - Maximum Output Level: +24 dBu
    - Output Impedance: 600 ohms
  • OUT 3-8 (Analog Outputs)*: XLR type:
    - Output Bus: Channel 1/2, 3/4, 5/6, 7/8 or Stereo mix from internal mixer
    - Output Level: +4 dBu
    - Maximum Output Level: +24 dBu
    - Output Impedance: 600 ohms
    *When sampling rate is 192kHz, outputs 5-8 are inactive.
  • MIX OUT (Analog Outputs): Stereo miniature phone type:
    - Output Bus: Stereo mix from internal mixer
    - Maximum Output Level: 2Vrms/-30dBu
    - Output Impedance: 1 k ohms
  • Digital Input/Output: XLR type (AES/EBU, conforms to IEC 60958-4):
    - Output Bus: Stereo mix from internal mixer
  • Headphones: Stereo 1/4" phone type:
    - Output Level: 80mW (32 ohms)
    - Output Impedance: 10 ohms
  • Built-in Speaker: Stereo
  • Phantom Power: 48 +/- 4 V, 10 mA per 1 channel (8 channels of phantom power available simultaneously)
  • Residual Noise Level:
    - OUT 1–8: –80dBu (Input Level Knob: Min)
    - MIX OUT: –90dBu (Input Level Knob: Min)
  • Total Harmonic Distortion + Noise: 0.02 % or less (SENS Knob: +4 dBu, Input Level Knob: 0)
  • Frequency Response: 20 Hz to 40 kHz (0 to -3 dB, Sampling Frequency: 96 kHz/192 kHz)
  • Input Effects: Limiter, Low cut, Stereo channel link
  • MS microphone decoder: For REC, for play and monitor
  • Slate Mic/Tone: Built-in 1 kHz, –20 dBFS/Alarm Tone
  • Monitor: Pre Fader Listening (PFL), Real Time Analyzer (RTA)

Other Terminals:

  • USB Interface**:
    - A Type Connector (For USB Memory) supports USB 2.0 and 1.1 Mass Storage Device Class
    - B Type Connector (For Computer) supports USB 2.0 and 1.1 Mass Storage Device Class or USB Audio (Hi-Speed USB, 10 channels inputs and 8 channels outputs)
    **When sampling rate is 192kHz, the USB audio interface is inactive.
  • SMPTE Timecode connectors: BNC Connectors (Conforms SMPTE 12M-1999)
  • CONTROL 1,2 jack: 1/4" TRS phone type


  • Display: 160 x 160 dots graphic display (touch screen)
  • Indicators: IN 1 to 8 Peak Indicators, Slate Mic Indicator, REC Indicator, Play Indicator
  • Power Supply: AC Adaptor (PSB-1U), Alkaline battery (AA, LR6) x 8, or Rechargeable Ni-MH battery (AA, HR6) x 8, External
  • Power Supply: 4-pin XLR type (9 to 16 V)
  • Accessories: Owner's Manual, AC Adaptor (PSB-1U), AC Adaptor - 4pin XLR type connector conversion cable
  • Recording Time using 32GB SDHC memory card***:
    - 1ch: 100 hours (16 bits/44.1 kHz), 16 hours (24 bits/192 kHz)
    - 4ch: 25 hours (16 bits/44.1 kHz), 3.8 hours (24 bits/192 kHz)
    - 8ch: 12 hours (16 bits/44.1 kHz), 3.8 hours (24 bits/96 kHz)
    - 10ch: 10 hours (16 bits/44.1 kHz), 3 hours(24 bits/96 kHz)
    ***These recording times are approximate. Actual results may vary somewhat. If more than one recorded file exists, the total recordable time will be less.
  • Dimensions: 10-1/4" W x 9-5/16" D x 3-11/16" H (260 x 235 x 93 mm)
  • Weight including batteries: 5 lbs, 15 oz. (2.67 kg)

NOTE: 0dBu=0.775Vrms
