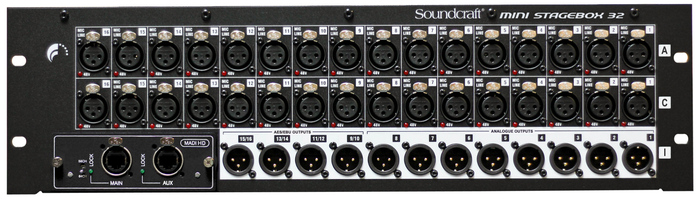

Soundcraft Mini Stagebox 32
32 x 16 Mini Stagebox for Si and Vi Consoles

OUR PART #  MINI-STAGEBOX-32

Our Price: $1,999.00
List Price: $2,499.00
You save 20%! (Low Price Guarantee)
In Stock

The Mini Stagebox 32, part of the Mini Stagebox range from Harman's Soundcraft, offers a simple solution to stage connectivity, delivering a lower-cost option for many systems where the modularity and configurability of the larger systems are not needed. It comes in a 3RU package and is equipped with 32 analog inputs plus 8 analog line outputs, with 4 pairs of AES outputs, all providing a total I/O capacity of 32 inputs and 16 outputs. It can connect to any of the Soundcraft Si Expression, Si Compact, Si Performer, Si Series and Vi Series consoles via a MADI card fitted into the option card slot. Also included is an integral PSU so it's completely self-contained and can sit comfortably stage-side. It comes supplied with the stagebox card installed, plus the corresponding card for an Si series console (Vi console MADI cards sold separately), and is part of the ViSi Connect range of interface options for all Soundcraft mixing consoles, which include the Compact and Vi Stageboxes, as well as a range of option cards such as MADI, CobraNet, and AES (sold separately).

Recommmended applications:

  • Broadcasting
  • Houses of Worship
  • Music Venues
  • Theatres
  • Tour Sound
  • Musicians & Bands
  • Recording

Soundcraft Mini Stagebox 32 Typical Specifications:

  • Frequency Response:
    • Mic / Line Input to any Output: +0/-1dB, 20Hz – 20kHz
  • T.H.D.:
    • Mic Sensitivity -30dBu: < 0.01% @ 1kHz
  • Noise:
    • Residual noise: -85dBu
    • Mic Input E.I.N. (maximum gain): -125dBu (150Ohm source)
    • Mix noise, masters at unity: < -86dBu
    • 1 input to mix at unity gain: -84dBu
    • CMRR mic @1KHz (max gain): -86dBu
  • Crosstalk (@ 1kHz)
    • Mic – Mic: <-80dB @ 1kHz
  • Input Gain:
    • Mic Gain: -5dB – 58dB integrated pad design 1dB steps
  • Max. input level: +24dBu
  • Max. output level: +22dBu
  • Sample rate: 48kHz
  • Converter resolution: 24-bit
  • Latency: 1.5ms
  • Internal clock accuracy: +/- 25ppm
  • Mains power consumption: 33W
  • Mains voltage operating range: 90 — 264 VAC, 47 — 63Hz
  • Operating temperature range: -10°C — +50°C
  • Storage temperature range: -10°C — +50°C
  • Relative humidity: 0 — 90%

Soundcraft Mini Stagebox 32
32 x 16 Mini Stagebox for Si and Vi Consoles

OUR PART #  MINI-STAGEBOX-32

Product Information:

The Mini Stagebox 32, part of the Mini Stagebox range from Harman's Soundcraft, offers a simple solution to stage connectivity, delivering a lower-cost option for many systems where the modularity and configurability of the larger systems are not needed. It comes in a 3RU package and is equipped with 32 analog inputs plus 8 analog line outputs, with 4 pairs of AES outputs, all providing a total I/O capacity of 32 inputs and 16 outputs. It can connect to any of the Soundcraft Si Expression, Si Compact, Si Performer, Si Series and Vi Series consoles via a MADI card fitted into the option card slot. Also included is an integral PSU so it's completely self-contained and can sit comfortably stage-side. It comes supplied with the stagebox card installed, plus the corresponding card for an Si series console (Vi console MADI cards sold separately), and is part of the ViSi Connect range of interface options for all Soundcraft mixing consoles, which include the Compact and Vi Stageboxes, as well as a range of option cards such as MADI, CobraNet, and AES (sold separately).

Recommmended applications:

  • Broadcasting
  • Houses of Worship
  • Music Venues
  • Theatres
  • Tour Sound
  • Musicians & Bands
  • Recording

Soundcraft Mini Stagebox 32 Typical Specifications:

  • Frequency Response:
    • Mic / Line Input to any Output: +0/-1dB, 20Hz – 20kHz
  • T.H.D.:
    • Mic Sensitivity -30dBu: < 0.01% @ 1kHz
  • Noise:
    • Residual noise: -85dBu
    • Mic Input E.I.N. (maximum gain): -125dBu (150Ohm source)
    • Mix noise, masters at unity: < -86dBu
    • 1 input to mix at unity gain: -84dBu
    • CMRR mic @1KHz (max gain): -86dBu
  • Crosstalk (@ 1kHz)
    • Mic – Mic: <-80dB @ 1kHz
  • Input Gain:
    • Mic Gain: -5dB – 58dB integrated pad design 1dB steps
  • Max. input level: +24dBu
  • Max. output level: +22dBu
  • Sample rate: 48kHz
  • Converter resolution: 24-bit
  • Latency: 1.5ms
  • Internal clock accuracy: +/- 25ppm
  • Mains power consumption: 33W
  • Mains voltage operating range: 90 — 264 VAC, 47 — 63Hz
  • Operating temperature range: -10°C — +50°C
  • Storage temperature range: -10°C — +50°C
  • Relative humidity: 0 — 90%
