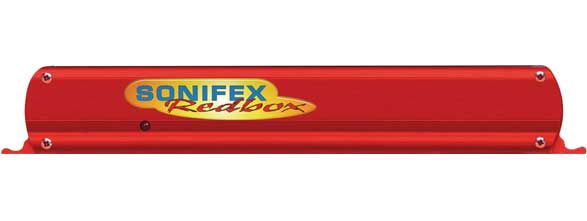

Sonifex RB-DDA6W 6-Way Word Clock Distribution Amplifiers

The RB-DDA6W word clock distribution amplifier distributes a word clock BNC input signal to 6 word clock BNC outputs re-conditioned. It is used to distribute reference clocks for digital audio systems.

It has a single female BNC audio input which is distributed to 6 female BNC outputs. The units primary application is to distribute a master TTL word clock source to multiple pieces of equipment that need to be synchronised from the master.

Specifications:

• Audio Specification
• Input impedance: 75O
• Output impedance: < 50O
• Inputs: 1 x BNC female
• Outputs: 6 x BNC female
• Mains Input: Filtered IEC, switchable 110-120V, or 220-240V, fused, 6W max
• Fuse Rating: Anti-surge fuse 100mA 20 x 5mm (230VAC)
• Anti-surge fuse 250mA 20 x 5mm (115VAC)
• Dimensions (Raw):
  • 11” (W) x 4.3” (D) x 1.7” (H) (1U)
• Weight:
  • Nett: 2lbs
