DPA Microphones ST2006A
Stereo Matched Pair of 2006A Omnidirectional Microphones

OUR PART #:  ST2006A

The DPA ST2006A is a complete DPA 2006A Stereo Pair with two handpicked omni microphones, selected on sensitivity within ±1.5 dB.
Learn More
Our Price: $1,979.95

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

DPA Microphones ST2006A
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The DPA ST2006A is a complete DPA 2006A Stereo Pair with two handpicked omni microphones, selected on sensitivity within ±1.5 dB.

As main AB stereo pair the 2006As deliver precise acoustic fingerprint and true tone. Orchestra, acoustic piano, guitar, wind instruments and choirs are among the most evident applications for this high-value-for-money pair.

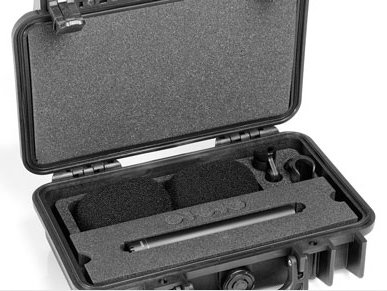

The foam design in the heavy-duty transportation box allows for fast and easy exchange of microphone and accessory inlays.

Features:

  • Sensitivity selected pair
  • Acoustic authenticity
  • Linear in a large frequency bandwidth
  • Peli™ Case transportation and protection

Specifications:

  • Directional pattern:  Omnidirectional
  • Principle of operation:  Pressure
  • Cartridge type:  Pre-polarized condenser, Twin Diaphragm Capsule
  • Frequency range:  20 Hz - 20 kHz
  • Frequency range, ± 2 dB:  50 Hz - 20 kHz with typ. 3 dB soft boost at 14 kHz
  • Sensitivity, nominal, ± 2 dB at 1 kHz:  40 mV/Pa; -28 dB re. 1 V/Pa
  • Equivalent noise level, A-weighted:  Typ. 16 dB(A) re. 20 µPa (max. 18 dB(A))
  • Equivalent noise level, ITU-R BS.468-4:  Typ. 28 dB (max. 30 dB)
  • S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL):  Typ. 78 dB(A)
  • Total Harmonic Distortion (THD) at 1 kHz:  < 1 % up to 130 dB SPL peak
  • Dynamic range:  Typ. 114 dB
  • Max. SPL, peak before clipping:  141 dB
  • Switchable attenuator:  0 dB / -20 dB
  • Output impedance:  < 200 ohm
  • Minimum load impedance:  2 kohm
  • Cable drive capability:  100 m (328 ft)
  • Output balance principle:  Impedance balancing with Active Drive
  • Common Mode Rejection Ratio (CMRR):  > 60 dB
  • Power supply (for full specifications):  48 V Phantom power (± 4 V)
  • Current consumption:  2.8 mA
  • Connector:  XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
  • Color:  Matte black
  • Weight:  160 g (5.6 oz)
  • Microphone diameter:  19 mm (0.75 in)
  • Length:  164 mm (6.5 in)
  • Output voltage, RMS:  > 5 V
  • Polarity:  +V at pin 2 for positive sound pressure
  • Temperature range:  -40 °C to 45 °C (-40 °F to 113 °F)
  • Relative Humidity (RH):  Up to 90%
  • Sensitivity selection tolerance (at 1 kHz):  ± 1.5 dB

What's Included:

  • Two carefully matched 2006A omni microphones
  • Sturdy PeliTM case
  • Holders
  • Windscreens
