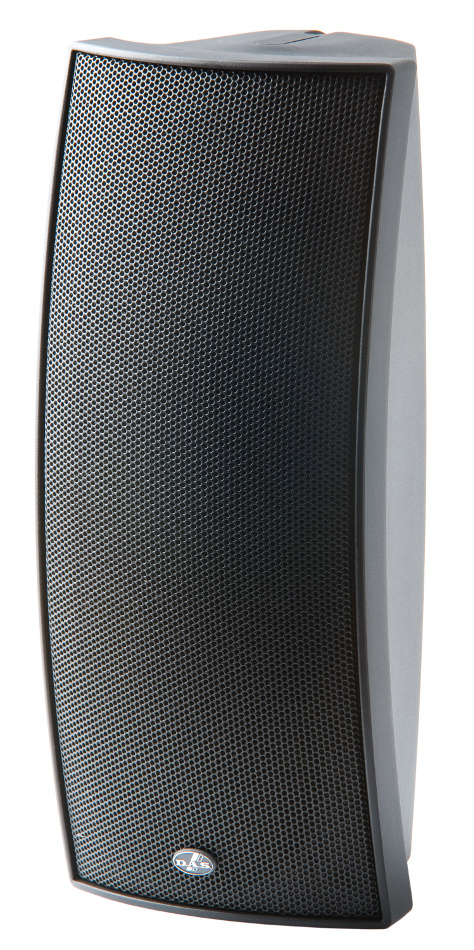

DAS Audio Arco 24T
Dual 4" 400W Peak Installation Speaker with 70/100V Multitap Transformer

OUR PART #:  ARCO-24T

The DAS Audio Arco 24T incorporates two 4” woofers with weather resistant polypropylene cones.
Learn More

Call for price! Not available online.

Select model: (shipping times are approximate)
Similar Products

The DAS Audio Arco 24T incorporates two 4” woofers with weather resistant polypropylene cones. High frequency reproduction is handled by a 25 mm neodymium dome tweeter for brilliant highs and balanced performance. An Overload Safety Circuit protects the speakers from damage in case of overpowering. The “T” versions include a multi-tap transformer with 10-20-30 W settings.

IP-54 versions for outdoor use are available.

DAS Audio Arco 24T Features:

  • Molded high-impact ABS enclosures
  • Available in black or white color options
  • Small size and ready-to-paint exterior
  • Adjustable ceiling/wall mount
  • “T” versions equipped with factory-installed multi-tap transformers

DAS Audio Arco 24T Specifications:

  • RMS Power Handling: 100 W
  • Peak Power Handling: 400 W
  • Frequency Range (-10 dB): 65 Hz-22 kHz
  • On-axis Sensitivity 1 W / 1 m: 89 dB SPL
  • Rated Peak SPL at 1 m: 115 dB
  • Transformer Taps:
    • 30/20/10 W (100 V)
    • 15/10/5 (70 V)
  • Dispersion: 80ºH x 70ºV
  • Enclosure Material: Paintable ABS Plastic
  • Color/Finish: Black or White
  • Connectors: Spring-Loaded Terminals
  • Dimensions (H x W x D):  17.7" x 5.9" x 5.9" (34 x 15 x 15 cm)
  • Weight:  5.7 lb (2.6 kg)
