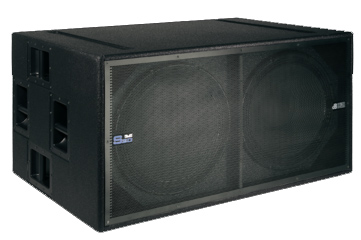

DB Technologies DVA-S20DP
18" Active Double Subwoofer

OUR PART #:  DVA-S20DP

Featuring a dual 18” subwoofer pairing in a bass reflex housing, the DVA S20 delivers powerful performance...
Learn More
Our Price: $4,499.00
List Price: $5,600.00
You save 20%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

DB Technologies DVA-S20DP
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products
Featuring a dual 18” subwoofer pairing in a bass reflex housing, the DVA S20 delivers powerful performance, rendering frequencies as low as 25 hertz assertively and with impressive authority. It is the perfect sub-bass provider for DVA S10/T4 systems and an excellent complement to DVA T4 mid-/high-range units in stacked arrays.

Specifications:

  • Speaker Type:  Active Bassreflex Subwoofer

Acoustical data

  • Frequency Response [+/- 3dB]: 35 - 120 Hz
  • Max SPL: 138 dB
  • Directivity: Omnidirectional, Cardiod Option with SDD Module
  • LF:  2x18 "
  • Type LF:  RCF Neodymium
  • Voice Coil LF:  4 "

Amplifier

  • Amp Technology:  digipro
  • Amp Class:  Class D
  • LF Amp:  2000 W/RMS
  • Cooling:  Convection

Processor

  • Controller: Analog
  • Phase: 0, 180 °
  • Limiter: RMS, Peak, Thermal
  • Delay Option: SDD Module
  • Crossover Frequency LF-MF:  90, 120 Hz
  • Slope LF-MF:  12 dB/Octave

Input Section

  • Signal Input: 1x XLR fem, sym.
  • Input Sensitivity [dBu]: -00 - -2 dBu
  • Signal Output:
      -  1x Link XLR, male, sym
      -  1x X-Over Out, XLR male, sym.
  • Power Socket: Powercon In
  • Voltage Range: 240 V

Mechanics

  • Housing: Multiplex birch plywood
  • Housing Design: Rectangular
  • Color: Black, white
  • Surface Texture: Textured acrylic lacquer
  • Handles: 4x Per Side
  • Pole Mount: No
  • Front Grille: 1.5mm metall grille
  • Castors: Optional
  • Width:  1100 mm (44 in)
  • Height:  580 mm (23.2 in)
  • Depth:  720 mm (28.8 in)
  • Weight:  69 kg (152.12 lbs)
Caster Kit for Sub 18D and DVA S20DP
DB Technologies SWK-18 KIT Caster Kit for Sub 18D and DVA S20DP
The SWK-18 KIT from dB Technologies is caster kit featuring four 100mm wheels, designed for dB Technologies' Sub 18D and DVA S20DP subwoofers.
