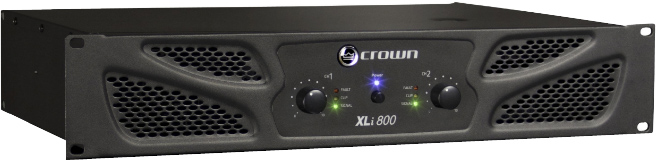

Crown XLi800
300W @ 4 Ohms Power Amplifier


Our Price: $249.00
List Price: $449.00
You save 45%! (Low Price Guarantee)

In Stock

The Crown XLi800 is a 300W per channel @ 4 Ohms power amplifier. The XLi Series of power amplifiers from Crown® represents a new era in affordable, quality power amplification. All four models in the series are powerful, rugged and reliable. They are suited for musicians, DJs, and entertainers as well as houses of worship, discos, and pubs.

The four models in the series are the XLi800, XLi1500, XLi2500 and XLi-3500. They are identical except for output power.

Features include RCA and XLR inputs, user selectable input sensitivity of 0.755V or 1.4V, Speakon® and binding post outputs, stereo/parallel/bridge-mono mode, power/fault/signal presence/clip indicators, forced-air cooling; and protection against shorts, no-load, on/off thumps and radio-frequency interference.

With over six decades of experience designing and building rock-solid products, Crown is the standard in amplifier technology. They are a powerful argument for quality and value.

Crown XLi800 Features:

  • Stereo/parallel/bridge-mono mode
  • User selectable input sensitivity - 0.775V and 1.4V
  • Electronically balanced RCA & XLR inputs; binding post and Speakon ®outputs
  • Efficient forced-air cooling prevents excessive thermal buildup
  • Electronically balanced RCA & XLR inputs; binding post and Speakon ®outputs
  • Two level controls, power switch, power LED, and six LEDs which indicate signal presence, clip and fault for each channel
  • Protection against shorts, no-load, on/off thumps and radio-frequency interference

Crown XLi800 Specifications:

  • Channels: 2
  • Power Rating (@ 1kHz):
    • 4-Ohm Stereo: 300W/ch
    • 8-Ohm Stereo: 200W/ch
    • 8-Ohm Bridge-Mono: 600W
  • Sensitivity (for full rated power at 8 ohms): 0.775V or 1.4V
  • Signal to Noise Ratio (below rated power 20Hz to 20kHz, A-Weighted): >100dB
  • Total Harmonic Distortion: (THD) (20Hz - 20kHz):<0.05%
  • Intermodulation Distortion (60 Hz and 7 kHz at 4:1 from full rated output to –40 dB): = / <0.35%
  • Frequency Response (@ 1W, 20 Hz - 20 kHz): 0dB, -1dB
  • Crosstalk (below rated power):
    • at 1kHz: -75dB
    • at 20kHz: -59dB
  • Damping Factor (from 10Hz to 400Hz, 8 ohms load): > 200
  • AC Line Voltage and Frequency Configurations (± 10%):
    • 120VAC, 60Hz
    • 220VAC, 50/60Hz
    • 230-240VAC50/60Hz
  • Dimension (H x W x D): 3.5" x 19" x 12.4"
  • Net Weight: 25.1 lbs.
  • Net Shipping Weight: 29.5 lbs.
