Product Overview
The Intelix FLX-BO4 takes advantage of HDBaseT outputs connect any source device to a remote display, up to 70m away, utilizing standard Cat 5e cable with a TIA-568B crimp. The RS232 and wide-band IR connections for each output allow bi-directional control signals at the equipment rack to interface with display devices when used with the DIGI-HD60C-R or DIGI-HDE-R HDBaseT receivers. The optional DIGIB-EMT (IR emitter) and DIGIB-EYE (IR receiver) are required for IR control functionality.
Applications:
- Designed for use with FLX-8X8A, FLX-88, FLX-1616,FLX-3232
- Ideal for installations requiring long HDMI runs andremote control of source & destination devices
- Transmit signal from remote sources: 1080p up to 229 feet
Intelix FLX-BO4 Features:

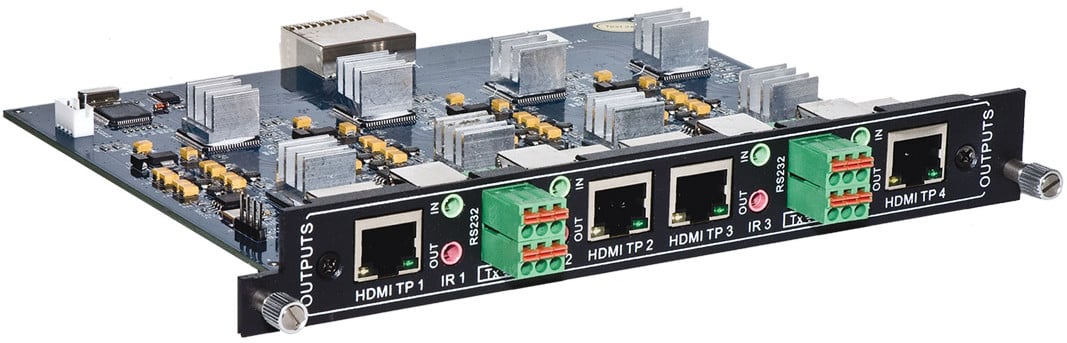

- HDBaseT output card for FLX-8X8A, FLX-88, FLX-1616,FLX-3232
- Four HDBaseT RJ45 outputs
- RS232 and bidirectional IR embedding
- Can be used with DIGI-HD60C-S, DIGI-HD70-S orDIGI-HDE-S to transmit signal to remote displays
- Supports HDBaseT Specifications; HDMI and HDCP compliance
Intelix FLX-BO4 Specifications:
- I/O Connections:
- HDBaseT Port: Four (4) 8P8C port (Shielded RJ45)
- IR In: Four (4) 3.5 mm TS (Requires DIGIB-EYE)
- IR Out: Four (4) 3.5 mm TRS (Requires DIGIB-EMT)
- RS232: Four (4) 3 pole Euroblock Connector
- Supported Audio and Video:
- Maximum Video Compatibility at 70 m: Deep Color36/30/24-Bit at 1080p
- Maximum Video Compatibility at 40 m: Deep Color 48-Bit at 1080p, 3D
- Video Compliance: HDMI and HDCP
- Embedded Audio: Up to PCM 8 channel, Dolby Digital TrueHD, and DTS-HDMaster Audi
- HDBaseT Signal Characteristics:
- Maximum Distance: 70 m
- Cable Requirements: Solid core Category 6 or 6A with TIA/EIA-568B crimp pattern
- Bandwidth: 10.2 Gbps
- Gain: 0 dB - 10 dB at 100 MHz
- Resolution Range: 800x600 - 1920x1200
- Signal to Noise Ratio (SNR): > 70 dB at 100MHz over 100 m
- Return Loss: < -30 dB at 5 KHz
- Total Harmonic Distortion (THD): < 0.005% at1 kHz
- Min-Max Signal Level: < 0.3 V - 1.45 Vp-p
- Differential Phase Error: ±10° at 135 MHz over 100 m
- Chassis and Environmental:
- Construction: Plug-in card with keyed black metal plate
- Shipping Weight: 0.95 lbs. (0.43 kg)
- Operating Temperature: 0° to +40°C (+32° to+104°F)
- Operating Humidity: 20% to 90%, Non-condensing
- Storage Temperature: -10° to +60°C (+14° to+140°F)
- Storage Humidity: 20% to 90%, Non-condensing
- Other:
- Warranty 2 years
- Matrix Switcher Compatibility: FLX-8X8A, FLX-88,FLX-1616, FLX-3232
- HDBaseT Receiver (A/V and Control)Compatibility: DIGI-HD60C-R, DIGI-HDE-R
- HDBaseT Receiver (A/V Only)Compatibility: DIGI-HD70-R
- Infrared (IR) Emitter: DIGIB-EMT
- Infrared (IR) Receiver: DIGIB-EYE
NOTE:
Distances and picture quality may be affected by cable grade, cable quality, source and destination equipment, RF and electrical interference, and cable patches. Intelix specifications are based on straight-through cabling with standard-grade Cat 6 unless noted otherwise.
