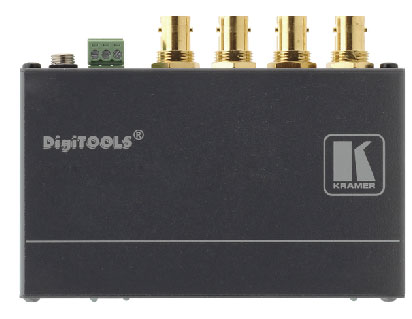

Kramer VS-211HDXL 2x 1:2 3G HD-SDI Automatic Standby Switcher

The VS-211HDxl is a high-performance automatic switcher for 3G HD-SDI video signals. When configured as a standby switcher, it switches to the secondary input when the primary input is lost.

Features

• Max. Data Rate - 3Gbps.
• Multi-Standard Operation - SDI (SMPTE 259M and SMPTE 344M), HD-SDI (SMPTE 292M) & 3G HD-SDI (SMPTE 424M).
• HDTV Compatible.
• Control - Contact closure or automatic switching.
• Automatic Standby Switching - Switches from the secondary input to the primary input when a primary signal is detected.
• Primary Input - Selectable.
• Active Input LED Indicators.
• Compact DigiTOOLS™ - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter.

Specifications

• Inputs: 2 x 3G HD-SDI video on BNC connectors.
• Outputs: 2 x 3G HD-SDI video on BNC connectors.
• Max. Output Level: 800mVpp/75Ohm.
• Data Rate: Up to 2.97Gbps.
• Controls: Contact closure remote control, input default selection switch.
• Coupling: AC.
• Power Source: 5V DC, 400mA.
• Dimensions: 4.7" x 2.8" x 1.0" (12cm x 7.2cm x 2.4cm) W, D, H.
• Weight: 0.66 lbs (0.3 kg).
• Accessories: Power supply, mounting bracket.
• Options: RK-3T 19" rack adapter.
