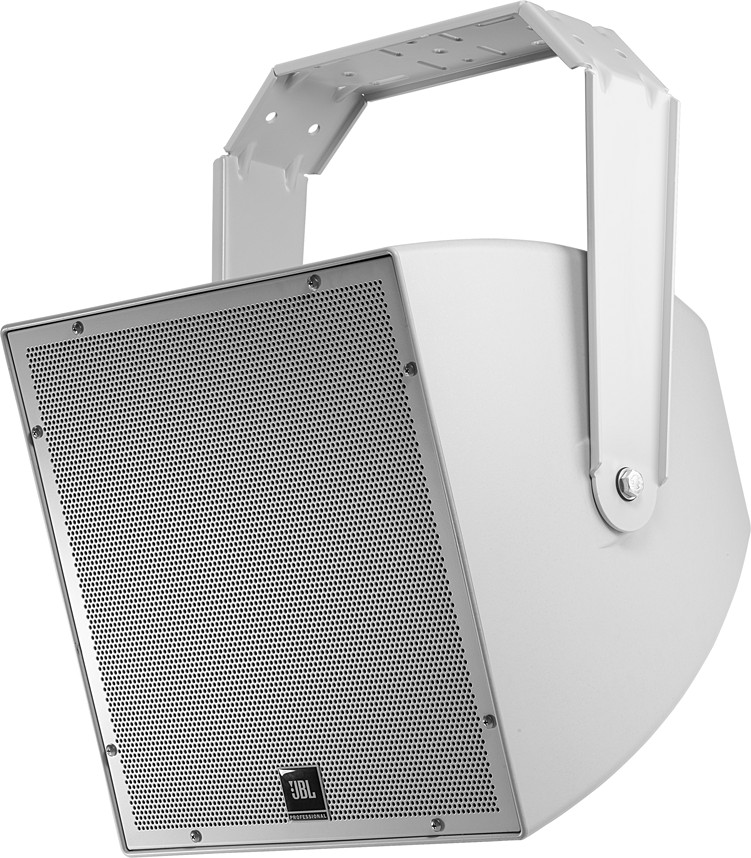

JBL AWC129 All-Weather Coaxial, 12” 2-Way, Light Gray Image 1
JBL AWC129 All-Weather Coaxial, 12” 2-Way, Light Gray
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The JBL AWC129 is a compact, coaxial-driver, 2-way, highly weather-resistant full-range loudspeaker system which is ideal for speech and music in a wide variety of applications, including sports facilities, race tracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music/paging systems, swimming pools, and a wide variety of other outdoor or indoor venue types.

JBL AWC129 Features:

  • Highly weather-resistant IP56 rating
  • Consistent 90° x 90° broad band pattern control
  • Components:
    • 300 mm (12 in) woofer with Kevlar-reinforced cone and 75mm (3 in) voice coil.
    • 25 mm (1 in) exit compression driver with unique patented design and high temperature polymer diaphragm.
  • Extraordinary clarity for speech, with extended frequency response for music.
  • Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
  • 400 Watt power handling (average continuous pink noise) with high sensitivity provides high SPL capability.
  • High-power passive crossover network.
  • Overload protection
  • 55 Hz – 20 kHz frequency response.
  • 200 Watt 70V/100V multi-tap (built-in transformer) direct 8 ohm low-impedance.

JBL AWC129 Specifications:

  • Frequency Range (-10 dB): 55 Hz – 20 kHz
  • Frequency Response (±3 dB): 80 Hz – 20 kHz
  • Coverage Pattern: 90° x 90°
  • Directivity Factor (Q): 10.1 (1 kHz – 16 kHz)
  • Directivity Index (DI): 9.5 dB (1 kHz – 16 kHz)
  • Long-Term System Power Rating (IEC): 400 W (1600 W peak), 2 hrs. 250 W (1000 W peak), 100 hrs
  • Sensitivity (2.83V @ 1m): 96 dB (Ave. 80 Hz –20 kHz)
  • Maximum SPL: Direct 8 ohm: 122 dB (peaks of 128dB) 200 W Tap: 119 dB
  • Crossover Network: 1.5 kHz, 3rd order (18dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF
  • Nominal Impedance: 8 ohms
  • Transformer Taps:
    • 70V: 200W, 100W, 50W, 25W
    • 100V: 200W, 100W, 50W
  • Low Frequency Driver: Kevlar-reinforced cone with weather treatment, 75 mm (3 in) voice coil.
  • High Frequency Driver: 25 mm (1 in) diaphragm and voice coil diameter, high temperature polymer diaphragm, patented design, fluid-cooling.
  • HF Driver Protection: Minimum audibility SonicGuard™ HF overload protection
  • Enclosure: ABS with Glass enclosure, heavily braced
  • Attachment: Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel.
  • Grille: Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3- layer assembly with foam and woven poly mesh backing.
  • Input Connection: CE-compliant covered barrier strip terminals. Barrier terminals accept up to 9 mm outside 4 mm inside open-lug (#6, #8 or #10) plus bare wire up to 2.5 mm 2 (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with round-jacketed cables with outside diameters between 4.0mm (0.16") and 9.0 mm (0.36")
  • Environmental: IP56 per IEC529, with a minimum 5° downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for salt spray (168 hrs).
  • Dimensions:
    • 15.8 x 15.8 x 17.5 in (402 x 402 x 445mm), cabinet
    • 18.5 in (470 mm) depth with gland nut
    • 21.4 in (542 mm) including bracket extending to back
  • Net Weight: 35.0 lbs (15.9 kg) 41.5 lbs (18.9kg) with u-bracket
  • Shipping Weight: 51.5 lbs (23.4 kg)
  • Included Accessories: U-bracket, matches loudspeaker color (light grey or black), zinc-rich extra thick powder coated steel.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Product Documents

Click to download

Product Reviews

Reviewed by 1 customer
(0 are Verified Buyers.)

Write a Review

There are no reviews to display with the selected filters.

Mark P on 10/17/2018

We've only had these speakers a few months now, but they seem to be an excellent buy. Very well built (typical JBL quality), and they sound great! We'll see how they fair after a Seattle winter, but with an ip56 rating, I think we're going to be very happy with this purchase.
