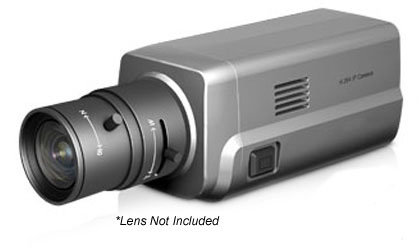

Marshall Electronics VS-6300
3 MP IP Box Camera

OUR PART #:  VS-6300

Note:   Lens is not included.
Learn More
Our Price: $599.00
List Price: $699.00
Call for Special Sale Price!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Marshall Electronics VS-6300
Qty:
In Stock

Similar Products

Note:  Lens is not included.

Features:

  • 3 MP 1/3" 2048 x 1536 CMOS Image Sensor
  • High Resolution Video streaming 2048 x 1536 @ 15fps
  • H.264 & H.264 MJPEG Dual Streaming
  • C/CS Lens Mount
  • True Day & Night (Motorized IR Cut Filter)
  • Auto Iris (DC) lens control
  • Integrated Video Motion Detection
  • Built-in PoE (Power Over Ethernet: 802af)
  • SD™ Card Recording
  • Two-Way Audio Communication (G.711/AAC)
  • Motion Sensor Input & Alarm Output
  • Transmission of Video Bitrate Control (32kbps ~ 10Mbps)

Specifications:

Network

  • Network Interface:  Ethernet 10/100Base-T (RJ-45)
  • Network Protocol:  TCP/IP, UDP, Multicast, DHCP, SMTP, HTTP, SNMP, RTP, RTSP

Camera

  • Image Sensor:  1/3" CMOS Image sensor
  • Lens:  C/CS Mount selectable (Lens is not included)
  • Max. Aperture Ratio:  1:1.8
  • Motion Image Stablizer:  On/Off
  • Back Light compensation:  On/Off
  • Flip:  Vertical Flip, Horizontal Flip
  • Exposure:  Flickerless, Metering, Mode, Aperture, Shutter Speed, Brightness
  • Focus:  Focus Range, Zoom Tracking
  • White Balance Index:  Auto, Indoor, Outdoor
  • Image Quality:  Sharpness, DNR, Chroma CR, Chroma CB, Hue CR, Hue CB
  • Motion Detection:  On/Off

Video

  • Standards:
    - Main Stream: H.264
    - Secondary Stream: H.264/MJPEG
  • Resolution:  2048 x 1536, 2048 x 1080 ~ 176 x 120
  • Max Frame Rate:
    - MJPEG: 25fps @ 2048 x 1536, 30fps@2048 x 1080 ~ 176 x 120
    - H.264: 15fps @ 2048 x 1536, 30fps @ 2048 x 1080 ~ 176 x 120
  • Bitrate:  32 ~ 10,240 Kbps

Audio

  • Algorithm:  G.711, AAC
  • Input:  1 x Line-In (Mini-Stereo)
  • Output:  1 x Line-Out (Mini-Stereo)
  • Sample Rate:  G.711: 8kHz / AAC: 32kHz
  • Bitrate:  G.711: 64Kbps / AAC: 64Kbps, 128Kbps

Serial

  • Port:  1 x RS-485
  • Data Rate:  2,400bps ~ 115,200bps

Sensor/Alarm/etc.

  • Sensor Input:  1 x NO Contact
  • Alarm Output:  1 x NO Contact
  • Reset Button:  1 x Factory Reset Button

User Interface

  • System Status:  LED

Software

  • True NVR/CMS:  Live Monitoring, Recording, Search & Playback, Backup

Physical

  • Dimensions (WLH):  4.1 x 2.8 x 2.8 in. (103.5 mm x 70.3 mm x 70.6 mm)
  • Weight (without Lens):  15.4 oz (437.0 g)
  • Power Source:
    - DC 12V/0.5A
    - PoE: 802.3af
  • Power Consumption:  Max 6W
