Doug Fleenor Designs DMX2DAL DMX to DALI Interface
TB Pin

OUR PART #:  DMX2DAL

The DMX2DALI interface has an opto-isolated DMX512 input and two DALI output ports. Each output port is capable of individually addressing 64 DALI devices.
Learn More
Our Price: $625.32
List Price: $772.00
You save 19%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Doug Fleenor Designs DMX2DAL DMX to DALI Interface
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

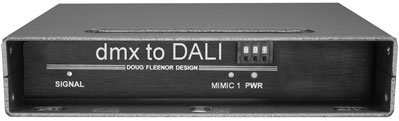

The DMX2DALI interface has an opto-isolated DMX512 input and two DALI output ports. Each output port is capable of individually addressing 64 DALI devices. There are modes to allow for single channel control of all ballasts (broadcast mode), stand alone operation, and a simple fixture addressing facility.

The DMX512 input is received via three-position two-part terminal block connector. The DALI protocol is output via three-position two-part terminal block connector. LED indicators display DMX input signal, power and a Mimic of channel one. A three-digit thumbwheel switch is provided to set the starting address. A test feature allows bringing any output to full by setting the front panel switch to 601 - 728.

Doug Fleenor Designs DMX2DAL DMX to DALI Interface Specifications:

  • DMX Input signal:  250 Kilobaud, 0.2 volts minimum, 12 voltsmaximum
    DMX Input circuit:  ESD protected EIA-485 transceiver(LT1785)
    DMX Input connector:  Three-position two-part terminalblock
    Option jumpers:
     -  INSTALLED
          *  JP1  DMXtimes out in 1 second (Default)
         *  JP2  Normal addressing(Default)
          *  JP3 Unused
     -    REMOVED
         *  Hold last look
          *  1channel broadcast mode
         *  Unused
  • Output circuit:  DALI compliant 16V (nominal)250ma
  • Output connectors:  Three-position two-partterminal block
  • Output Pinout:
      -  Pin 1 = Common
      - Pin 2 = N/C
      -  Pin 3 = DALI signal
  • Power input:  100 - 120 volts, 50/60 hertz, 12watts (208 - 240 volt optional)
  • Color:
      -  Top, bottom and sides: Silver hammertone.
     -  Front and back: Black.
  • Size and weight:  6.5" deep, 1.7" high, 8" wide, 2.7 pounds (19" rackadapter available)
