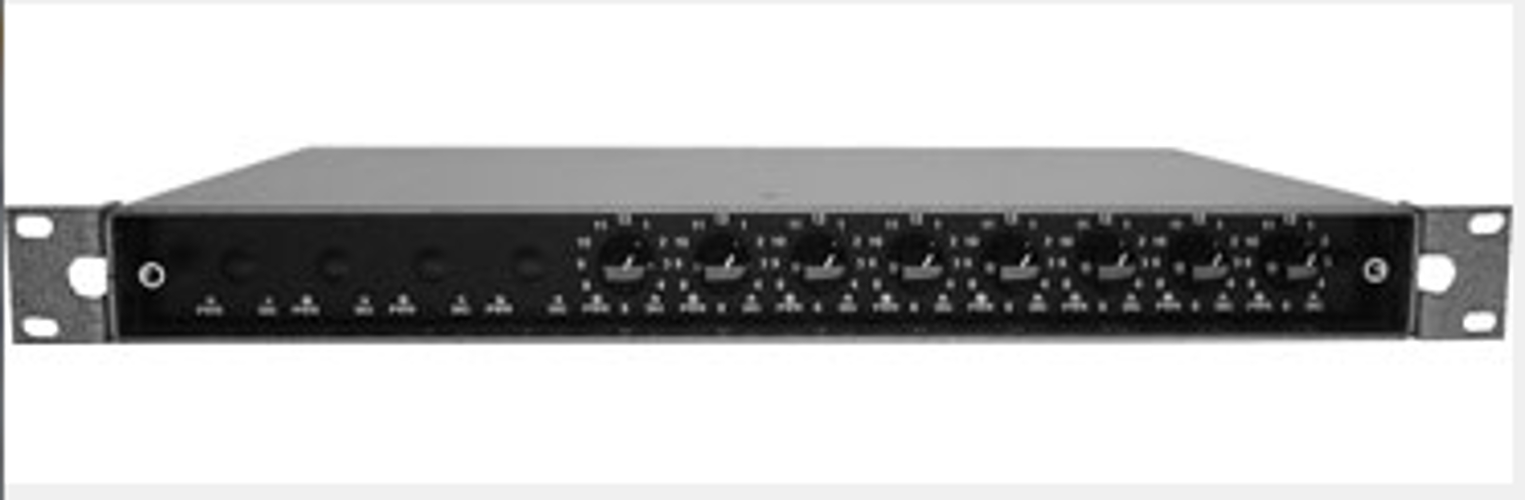

Doug Fleenor Designs RR-I/O DMX Rotor-Router
Mixed In/Out

OUR PART #:  RR-I/O

The Rotor-Router is a DMX512 distribution system featuring up to 12 inputs and an unlimited number of outputs.
Learn More
Selected Model Price: $2,291.71
List Price: $2,984.00
Save up to 23%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Doug Fleenor Designs RR-I/O DMX Rotor-Router
Select a Model: (shipping times are approximate)
Qty:

Similar Products

The Rotor-Router is a DMX512 distribution system featuring up to 12 inputs and an unlimited number of outputs. A system typically consists of an input module and one or more output modules. Both modules are 1.7"h x 19"w x 12"d and are normally rack mounted. A plexiglass security cover is included to prevent accidental switch changes.

NOTE:  This product uses slew-rate-limited output drivers. Slew-rate-limited drivers minimize EMI and reduce reflections caused by improperly terminated cables.

Doug Fleenor Designs RR-I/O DMX Roto-Router Specifications:

  • Input Module
    • Input circuit: EIA-485 receiver with 120 ohm termination resistor between +Data and -Data.
    • Input connectors: Gold plated 5 pin male Neutrik D-1 series (terminal connections optional).
    • Output circuit: EIA-485 transmitter with 60 ohm series (source) termination (DMX512 signals on a non-standard connector).
    • Output connector: DB-25P. (male)
  • Output Module
    • Input circuit: EIA-485 receiver. A termination plug is required if the output module is separated from the input module by more than six feet.
    • Input connector: DB-25P (male)
    • Output circuit: EIA-485 transmitter
    • Output connectors: Gold plated 5 pin female Neutrik D-1 series (terminal connections optional)
    • Isolation: 2500 volt optical coupler, 1500 volt split bobbin transformer
    • Power input: 100 - 120 volts, 50/60 hertz, 12 watts (208- 240 volt optional)
    • Size (HxWxD): 1.74" x 19" x 12"
    • Weight: 9 pounds
