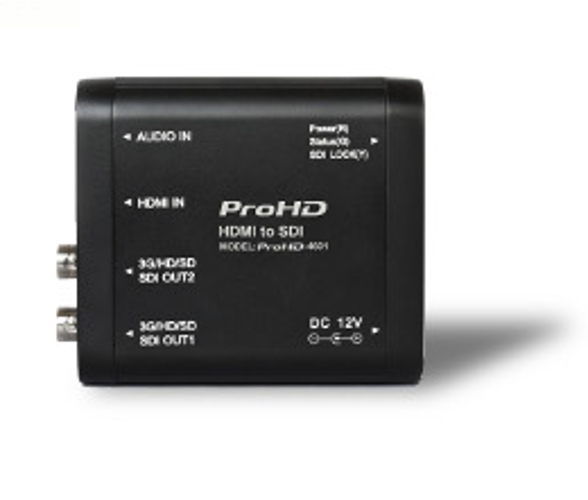

JVC PROHD-4601
HDMI to SDI Converter

OUR PART #:  PROHD-4601

The JVC PROHD-4601 is a miniature high quality converter, which converts digital uncompressed HDMI signals into HD/SD-SDI signals with embedded audio.
Learn More
Our Price: $288.26
List Price: $325.00
You save 11%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

JVC PROHD-4601
Qty:
In Stock

Similar Products

The JVC PROHD-4601 is a miniature high quality converter, which converts digital uncompressed HDMI signals into HD/SD-SDI signals with embedded audio. It is fully compatible with HDMI V1.3 and recognizes (and will not pass) signals with HDCP copy protection.

This is an ideal accessory for JVC models that accept HD-SDI but not HDMI inputs (such as the SR-HD2500US) or models that offer HDMI but not HD-SDI outputs (GY-HM100/150).

JVC PROHD-4601 Features:

  • Converts HDMI 1.3 to SD/3GHD-SDI
  • One HDMI input, two SDI outputs
  • 2-channel embedded SDI audio from HDMI
  • Supports HDCP copy protection

JVC PROHD-4601 Specifications:

  • Input: HDMI(1.3) x 1, Analog audio (3.5mm) x 1
  • Output: 3G/HD/SD-SDI x 2
  • Video Format:
    • HDMI - 480i / 576i / 720p (60 / 59.94 / 50) /1080i (60 / 59.94 / 50) / 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 /23.98)
    • SDI - SMPTE-425M - 1080p (60 / 59.94 / 50); SMPTE-274M - 1080p (30/ 29.97 / 25 / 24 / 23.98) / 1080i (60 / 59.94 / 50); SMPTE-296M - 720p (60/59.94 / 50); ITU-R BT.656 - 576i (50); SMPTE-125M - 480i (59.94)
  • Audio Format: 48KHz sync
  • Power: less than or equal to 3W
  • Working Voltage: DC 6-18V
  • Working Environment: Temperature 0°C - +70°C
    • Humidity: 10%-90%
  • Dimension: 5.5 x 2.95 x 1.18" (140x75x30 mm)
  • Net Weight: 0.3 lbs (138.5g)
