Atlas Sound Q4412
Speaker Enclosure, 12" 2 Cubic Feet

OUR PART #:  Q4412

Our Price: $198.99
List Price: $248.99
You save 20%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Atlas Sound Q4412
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

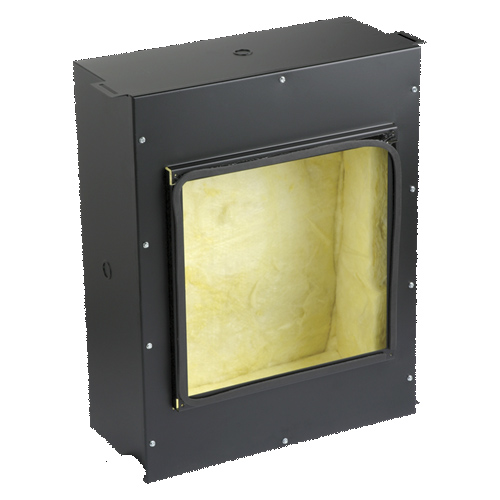

This 12" Q Series enclosure has a unique acoustical fiber board permanently affixed to the inner walls of the enclosure which effectively eliminates the "hangover" and vibration normally associated with large metal enclosures.

To achieve additional rigidity, unique ribs are formed on the back side of the enclosure. In addition, the inner walls are lined with 1 1/2" (38mm) thick fiberglass with a 1 1/2 lb./cu.ft. density to control unwanted resonances in the high end of the frequency spectrum.

The "Q" Series enclosures are constructed of 18 gauge cold rolled steel. Compound 1/2" - 3/4" (13mm-19mm) knockouts are furnished on all four sides. The front mounting panel of the enclosure is constructed of sturdy 18 gauge steel and incorporates the baffle mounting plaster ring. This panel is isolated by means of a foam gasket to prevent metal to metal contact.

Two sets of slotted mounting tabs are welded on parallel sides to accept Model QR30 mounting channels (optional) for mounting the enclosure in the ceiling. These mounting tabs may also be used for any specific mounting technique developed by the installer. It is important that the sound contractor take particular note of the weight of these enclosures to determine suitable mounting procedures.

The entire metal enclosure is finished in black textured epoxy.

Features:

  • 2 Cubic Foot Capacity - Matches Well With C12BT60 Driver
  • High Performance Enclosure For 12" Loudspeakers
  • Requires 164-12A (White) or 164-12A-052 (Black) Baffle
  • Fiberboard must be removed from the bottom of the enclosure to provide sufficient clearance for the 12CX or 12CXT60 speakers

Specifications:

  • Height: 8" (20.32 cm)
  • Width: 23" (58.42 cm)
  • Depth: 18" (45.72 cm)
  • Shipping Weight: 28.30 lbs (12.84 kgs)
  • Mounts Baffle: 164-12
  • Speaker Size: 12
