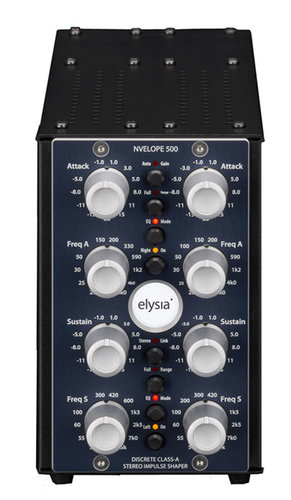

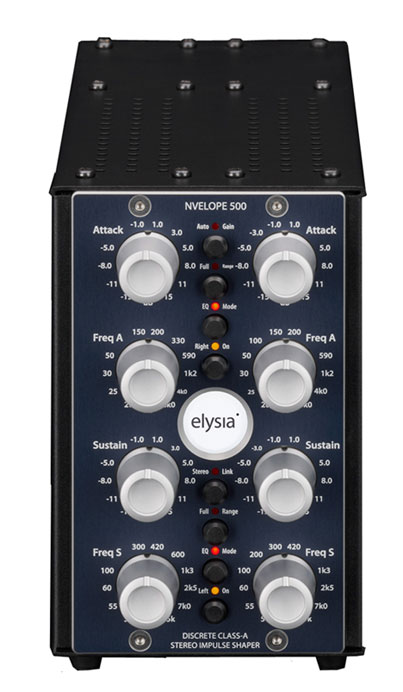

Elysia NVELOPE500
Audio Processor, Impulse Shaper


The nvelope 500 is a powerful audio processor capable of making subtle or drastic changes to a sound by providing control over its attack and sustain characteristics.
Learn More
Our Price: $975.00
List Price: $1,049.00
You save 7%!
Write the first review.
Elysia NVELOPE500
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The nvelope 500 is a powerful audio processor capable of making subtle or drastic changes to a sound by providing control over its attack and sustain characteristics. This is extremely useful for reshaping all sorts of individual tones, and is a wonderful tool in any mixing situation as well.

The nvelope 500 operates independently of the specific level of a signal, and (unlike with compressors) you do not have to spend a lot of time trying to balance a set of complex controls to quickly get the results you seek.

With its unique Dual Band mode, the nvelope 500 gives you enhanced control over processing, and can easily handle complex program material. Additionally, its dynamics sections can be bypassed, allowing it to function as a flexible high/low shelf EQ...


  • Discrete Class-A Topology - As a true elysia specialty, the audio path of the nvelope 500 is completely based on discrete circuitry and does not use any integrated circuits at all.
  • Full Range Mode - In Full Range mode, the attack and sustain intensity of a signal can be raised or reduced fast and efficiently with just two controllers.
  • Dual Band Mode - This mode functions basically the same as Full Range, but it provides more tweakability by assigning the attack and sustain controls to individual frequency selectors.
  • EQ Mode - The nvelope 500 can mutate into a two band equalizer with a high/low shelf characteristic, and even here the channel link for processing stereo material can be activated.
  • Mixed Mode - When Stereo Link mode is not active, the two individual channels can be used as completely different processors at the same time.
  • Dual Mono/Stereo Link - For ultimate flexibility, the nvelope 500 offers true dual mono and linked stereo operation as well – no matter if you are using it in Full Range, Dual Band or EQ mode.
  • Auto Gain - Should distortion or huge jumps in level occur as an unwanted side effect of the attack processing, the Auto Gain function will compensate and get the level right.
  • Stepped Potentiometers - The frequency potentiometers have 41 steps for an easy recall, while the gain pots have a center detent for finding their neutral position at once.


  • Frequency response:  <10 Hz - 400 kHz (-3.0 dB)


  • @ 0 dBu, 20 Hz - 22 kHz   0.006 %
  • @ +10 dBu, 20 Hz - 22 kHz   0.01 %

Noise floor A-weighted:

  • 20 Hz - 20 kHz (Full Range, EQ)  -90.0 dBu
  • 20 Hz - 20 kHz (Dual Band)  -87.0 dBu
  • Dynamic range:
      -  20 Hz - 22 kHz  112 dB
  • Maximum level:
      -  Input  +21 dBu
      -  Output  +21 dBu
  • Impedance:
      -  Input  10 kOhm
      -  Output  68 Ohm
  • Power consumption:
      -  Total   200 mA
      -  Per slot 100 mA
