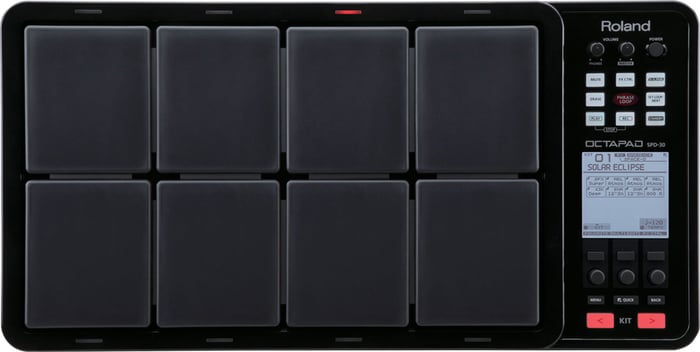

Roland SPD-30
OCTAPAD® Digital Percussion Pad in Black


Our Price: $699.00
List Price: $799.00
You save 13%! (Low Price Guarantee)
In Stock

The original Roland OCTAPAD was adopted by musicians worldwide and set the standard for future percussion pads.  The OCTAPAD SPD-30 combines cutting-edge drum and percussion sounds with the latest triggering technology, a Phrase Loop function, USB MIDI, and much more.


  • Includes new percussion sounds from around the world, plus 30 types of multi-effects
  • The latest pad-sensing technology developed for V-Drums® provides even and accurate pad triggering with excellent isolation between pads
  • Four dual-trigger inputs, plus hi-hat controller for adding pads to create a mini kit, or for connecting triggers from acoustic drums
  • Phrase Loop function inspires your creativity; record your playing in real time and overdub up to three layers
  • USB connectivity for MIDI and memory storage
  • Large backlit LCD and pad indicator lights for easy operation in low-light conditions

World Class Sounds

The OCTAPAD SPD-30 includes more than 600 drum and percussion sounds from around the world suited to cover any musical style.  Arranged in 50 kits, the sounds are dynamic and expressive, and range from traditional to contemporary to exotic.  You can customize the sounds with the onboard controls for tuning, muffling, attack, pitch sweep, and more.  You can also layer two sounds per pad to create an infinite number of sound combinations.


Based on Roland's world-leading effects technology, the SPD-30's multi-effects engine will take your performances to another level.  There are 30 types of internal multi-effects onboard, plus EQ, limiter, and seven Ambience types.

Phrase Loop Function

The onboard Phrase Loop function is a powerful creative tool that lets you quickly record your playing in real time.  You can overdub up to three layers per phrase, and store 50 phrases internally.  Connect optional footswitches for seamless recording and hands-free operation.  You can also save your phrase data to optional USB memory.

Advanced Triggering Technology

The OCTAPAD SPD-30 benefits from Roland's most advanced V-Drum triggering technology.  Each pad is a separate, isolated unit, providing the ultimate in sensitivity with complete crosstalk rejection.  In addition, you can connect four dual-trigger inputs, plus a hi-hat controller (compatible with Roland FD-8, VH-11) to create a mini drum set with external pads (Roland KD-/PD-/PDX-/CY-series).  The OCTAPAD SPD-30 is also compatible with Roland RT-Series acoustic drum triggers for even more flexibility.


  • Pads*: Built-in Pads: 8
    *Four external trigger inputs are provided, allowing you to connect Pads.
  • Instruments: 670
  • Kits: 50
  • Kit Chain: 8 chains (20 steps per chain)
  • Instrument Parameters: Tuning, Muffling, Soft Attack, Tone Color, Pitch Sweep, Volume, Pan, Reverse
  • Effect Types: Ambience (7 Types), Equalizer, Limiter, Multi Effect (30 Types)
  • Phrase Loop: Phrases: 50, Parts: 3, Tempo: 40 to 260, Resolution: 480 ticks per quarter note, Recording Method: Real-time,
    Maximum Note Storage: approx. 10,000 Notes
  • Display: 160 x 160 dots Graphic Type LCD (Backlit LCD), Pad Status Illumination x 8 (LED)
  • Connectors: PHONES Jack (Stereo 1/4" phone type), OUTPUT Jacks (L (MONO), R) (1/4" phone type), MIX IN Jack (Stereo 1/4" phone type), EXTERNAL TRIGGER INPUT Jacks x 4, HH CTRL Jack, FOOT SW Jack (1/4" TRS phone type), MIDI Connectors (IN, OUT), USB MEMORY Connector (for USB Memory), USB MIDI Connector (for USB MIDI)
  • Output Impedance: 1.0 k ohms
  • Power Supply: AC Adaptor (DC 9 V)
  • Current Draw: 600 mA
  • Accessories: Owner's Manual, AC Adaptor (PSB-1U), Screws (M5 x 12 mm) x 4
  • Options (sold separately): Pads (PD series, PDX series), Cymbals (CY series), Kick Triggers (KD series), Hi-Hats (VH-11), Hi-Hat Control Pedal (FD series), Pad Stand (PDS-10), All-Purpose Clamp (APC-33), Acoustic Drum Trigger (RT-10K, RT-10S, RT-10T), Pedal Switch (DP-2), Foot Switch (FS-5U, FS-6), Personal Drum Monitor: PM-10, PM-30, V-Drums Accessory Package: DAP-3, V-Drums Mat: TDM-10, USB memory*
    *Use USB memory sold by Roland.  Roland cannot guarantee operation if other products are used.
  • Dimensions: 21-5/16" W x 10-3/4" D x 3-1/2" H (541 x 272 x 88 mm)
  • Weight (excluding AC adaptor): 8 lbs. 7 oz. (3.8 kg)
