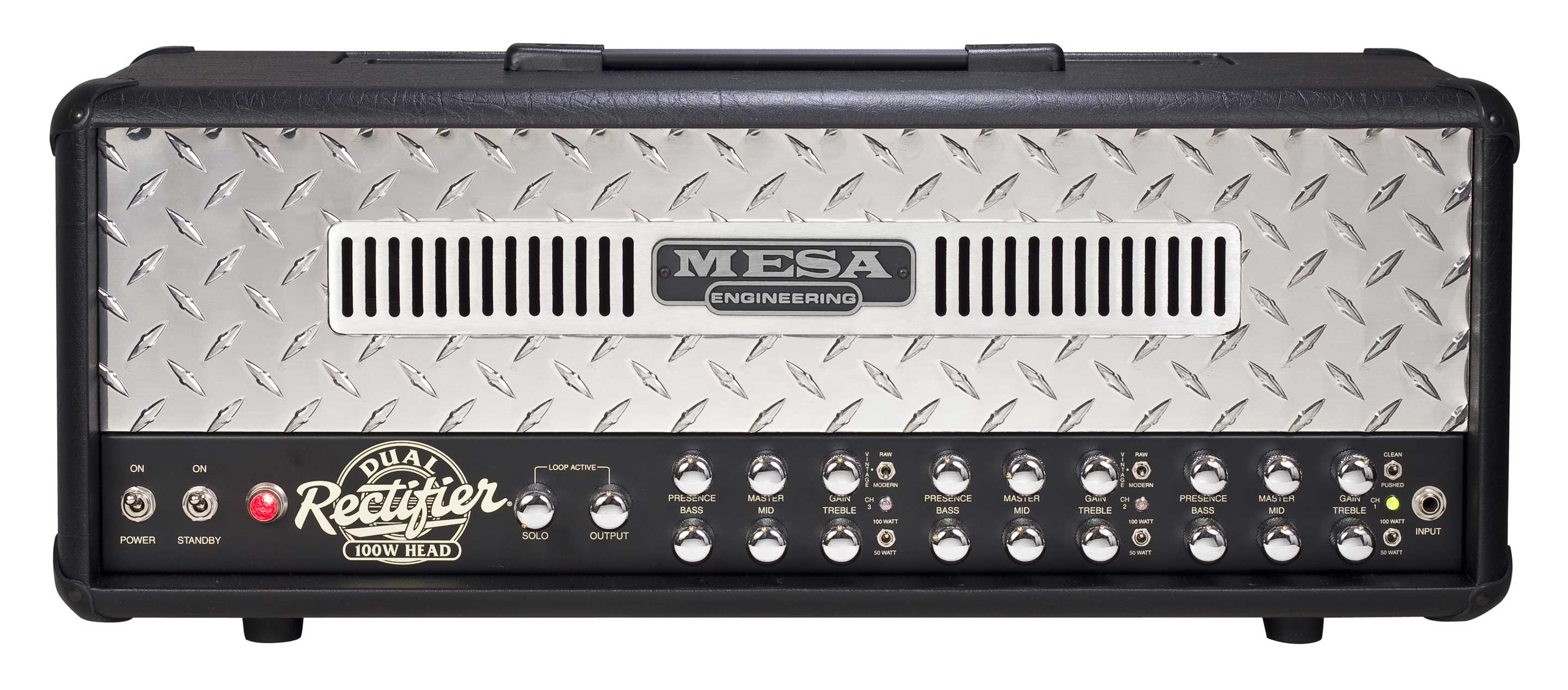

Mesa Boogie DUAL-RECTIFIER-HEAD Dual Rectifier 100W 3-Ch Tube Guitar Amplifier Head Image 1
Mesa Boogie DUAL-RECTIFIER-HEAD Dual Rectifier 100W 3-Ch Tube Guitar Amplifier Head Image 2
Mesa Boogie DUAL-RECTIFIER-HEAD Dual Rectifier 100W 3-Ch Tube Guitar Amplifier Head Image 3
Mesa Boogie DUAL-RECTIFIER-HEAD Dual Rectifier 100W 3-Ch Tube Guitar Amplifier Head Image 4
Mesa Boogie DUAL-RECTIFIER-HEAD Dual Rectifier 100W 3-Ch Tube Guitar Amplifier Head
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

A decade ago the Recto® underwent a massive facelift that greatly expanded its versatility and took what was a 2 Channel amp aimed squarely at high gain only – to a 3 Channel amp capable of roaming any style confidently.

On the eve of its 20th Birthday, with still the widest, deepest footprint in heavy music and now a long list of chart topping devotees outside the world of heavy, the Recto has been re-worked, re-tuned and refined again.

Now with patented Multi-Watt™ Channel Selectable Power, an Improved Effects Loop, Channel Assignable Rectifier Choices with RECTIFIER TRACKING™, a TUNER OUT jack with SILENT TUNE feature and an all new Footswitch, the new Dual and Triple are more menacing than ever.

Multi-Watt™, Channel Assignable Power Amp (Patent 7,602,927) allows you to assign either 2 or all 4 Power Tubes to each Channel for Power Ratings of 50 or 100 Watts of Class A/B Power via independent 50/100 Watt Power Switches / 4x6L6 (or 4xEL-34), 5x12AX7, 2x5U4

Mesa Boogie Ltd. DUAL-RECTIFIER-HEAD Specifications:

  • Bias Select Switch (6L6/EL34) • Fixed Bias for Consistent, Maintenance Free Performance
  • 3 Fully Independent Channels with 8 modes (Channel 1 = Clean or Pushed, Channel 2 & Channel 3 = Raw, Vintage High Gain or Modern High Gain)
  • Each Channel features: Multi-Watt Power Switch (50/100 Watt), Independent Gain, Treble, Mid, Bass, Presence, Master, Channel Assignable Dual Rectification with Recto Tracking™ (Diode or Tube Tracking – Patents 5,168,438& 7,193,458)
  • Footswitchable or Completely Bypass-able Fully Buffered FX Loop with Send Level Control
  • Output Level Control (over all channels when activated)
  • Footswitchable Solo Level Control (Patent 6,724,897 - over all channels when activated)
  • Bold/Spongy “Variac” Switch (Patent 5,091,700)
  • True “Hard” Bypass Switch that removes FX Loop, Output Level & SoloLevel Controls from signal path
  • Tuner Output w/Footswitchable Mute
  • Slave Out w/Level Control
  • External Switching Jacks for Channels 2, 3 (Ch 1 is default), Solo &FX Loop
  • New 3x3 - 6 Button Footswitch (Bottom Row: Channel 1, Channel 2, Channel3, Top Row: Tuner Mute, FX Loop & Solo)
  • Slip Cover
  • Head (Width 25 1/2”)
