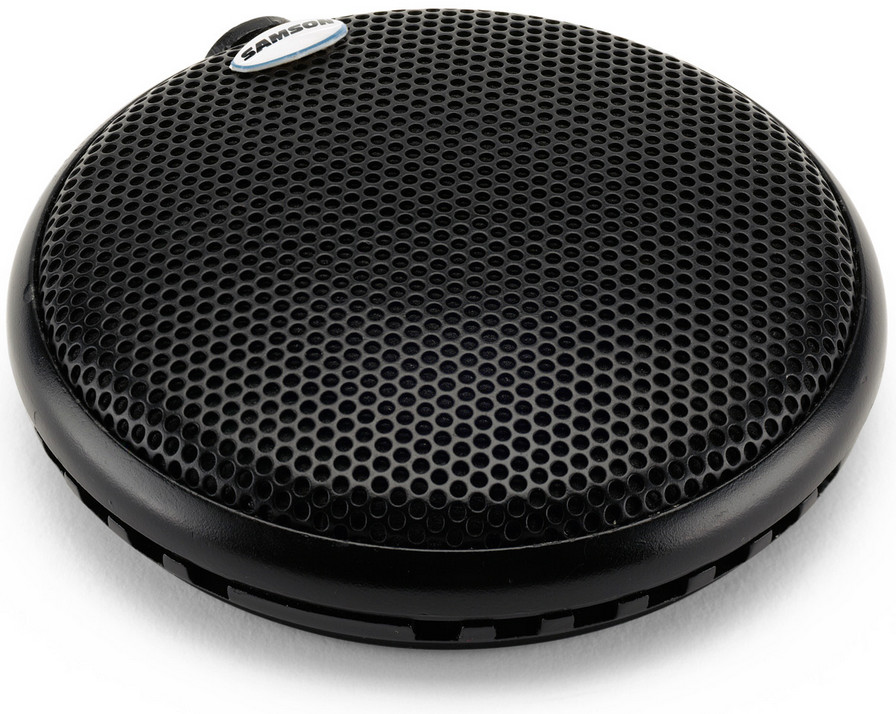

Samson CM11B Omni Boundary Microphone

The Samson CM11B is a low profile, surface-mount boundary microphone that features a permanently-charged condenser element with an omnidirectional pickup pattern. Because the CM11B is omnidirectional, it provides linear pickup in a 360-degree pattern, allowing the unit to be placed on the center of a conference table to pick-up everyone seated. Although the CM11B is very small in size, all the electronics are contained within the body, eliminating the need for any external electronics pack. The CM11B is fitted with a standard 3-pin miniature male XLR connector, and a 30 ft mini XLR to standard XLR cable is included. The CM11B operates on standard 9 through 52 Volt phantom power. A heavy Neoprene rubber pad is added to the bottom of the unit to decouple the microphone from the surface helping reduce unwanted pick-up noise. The CM11B is built using heavy-duty die-cast construction with a reinforced steel grill screen. Convenient mounting holes and hardware for hanging on walls or ceilings is included. A low reflectance, matte black finish enhances the stylish minimalist look.

Samson CM11B Boundary Microphone Features:

• Condenser element
• Half Omni Pickup Pattern
• Internal Hi-pass filter
• Mini XLR connector
• Includes 30 ft cable with mini to standard XLR connectors
• 9-52 Volt Phantom Power Operation

Samson CM11B Boundary Microphone Specifications:

• Element Type: Fixed charge condenser
• Polar Pattern: Omnidirectional
• Frequency response: 30 Hz - 18 kHz
• Sensitivity: -39dBV/Pa
• Rated impedance: 600 ohms
• Max. SPL: 127dB
• Dynamic range: 103dB
• S/N ratio: 70dB
• Power Supply: 9~52V phantom supply
• Power consumption: 4mA
