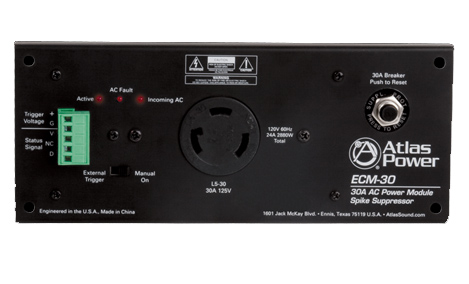

Atlas IED ECM-30 AC Power Module Spike Supressor

The Atlas Power ECM-30 is an Electrical Control Module (ECM) 30A Power Conditioner and AC Spike Suppressor that is designed to be used as a

stand-alone unit or in conjunction with an ECS-6RM Controller up to 1000ft away. The ECM-30 features electrical supression circuitry that can suppress up to 6kV or 3000A voltage spikes. Additionally the unit features Extreme Voltage Shutdown (EVS) when used in conjunction with an ECS-6RM controller. This enables the unit to be shut off during High or Low AC line conditions in order to protect electronics plugged into the unit.

Features:

• Single 30A Outlet
• Manual/Auto On/Off Switch
• Incoming AC Present LED
• Active and AC Fault LEDs
• Clamping Spike & Surge Suppression EVS Circuitry

Specifications:

• Current Rating: 30 Amps
• Operating Voltage: 102-132VAC
• Minimum Spike Clamping Voltage: 460 VRMS @ 3000A
• Maximum Spike Clamping Voltage: 6,000V
• Power Consumption: .5 Watts
• Power Requirements: 120V 60Hz
• Height: 3.0" (76.2mm)
• Length: 8.5" (215.9mm)
• Depth: 3.5" (88.9mm)
• Weight: 1.25 lbs. (.68 kg)
• Certifications: MET (UL 1449)

Note:

Unit must be used in conjunction with either the ECM-RACEWY1, EMC-RACEWY3, or ECM-RACEWY6 mechanical, rack mountable housing.
