Electro-Voice EVU-1082/95-BLK 8" 2-Way Loudspeaker, Black

OUR PART #: EVU-1082/95-BLK MFR #: F.01U.216.253

Copied to clipboard

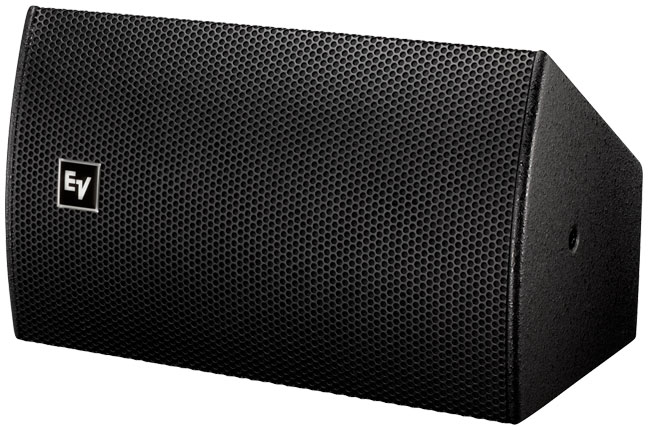

Electro-Voice EVU-1082/95-BLK 8" 2-Way Loudspeaker, Black Image 1
Electro-Voice EVU-1082/95-BLK 8" 2-Way Loudspeaker, Black
Our Price: $572.82
List Price: $795.00
You save 28%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$16/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 5-9 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The Electro-Voice EVU series is a compact high power 2-way loudspeaker system used in a variety of applications where high-quality sound reinforcement is required in an ultra compact light-weight enclosure. The enclosure design utilizes asymmetrical angles to maintain tight clearances to wall and ceilings while providing optimal coverage patterns making it ideal to blend into surroundings.

This design is optimized for wall, stage lip and under balcony applications. The EVU series incorporates the ICT (Install Compact Transducer), a high-output 1.3in titanium compression driver coupled to a Constant Directivity*1 90 x 50 rotatable waveguide. The EVU woofers are developed using FEA (Finite Element Analysis) optimization to provide the highest sensitivity while achieving the highest level of speech intelligibility.

The crossover designs uses 18dB per octave slopes with equalization for very smooth response in the vocal range, linear off-axis response and a protection circuit for long term reliability. The EVU line is constructed of multi-ply hardwood plywood enclosure with six (6) integral M8 suspension points to support a wide variety of mounting positions.

This EVU system is finished in textured paint available in black. Each EVU system includes a universal u-bracket to facilitate mounting. The u-bracket provides for a 330° unobstructed, translation of the loudspeaker. Additional mounting points are located on the back of the enclosure for use with an Omnimount*1 type bracket, available from Omnimount Inc. An available 60W transformer kit is easily mounted over the input panel for use in distributed systems. An NL-4 cover plate accessory is available to simplify use as a portable system. All of these features give you the flexibility to address a large range of venues, quickly and precisely supporting customer requirements.

Electro-Voice EVU-1082/95-BLK Features:

  • Ultra compact 10 x 16 inch enclosure
  • High power handling for size: 175 W continuous
  • High sensitivity: 95 dB (1 W / 1 m)
  • One 8-inch ICT-8-8 woofer

Electro-Voice EVU-1082/95-BLK Specifications:

  • Axial Sensitivity (SPL, 1 W @ 1 m): 95 dB
  • Color: Black
  • Finish: Textured paint
  • Nominal Impedance: 8 ohms
  • Waveguide: 6 in. x 6 in., rotatable
  • Frequency Response (-3 dB): 110 Hz - 16kHz Half Space
  • Frequency Response (-10 dB): 65 Hz - 20 kHz Half Space
  • Recommended High-Pass Frequency: 90 Hz
  • Max. SPL/1m (calc): Continuous: 117, Peak: 123dB
  • Coverage (Nominal -6 dB) H: 90 °
  • Coverage (Nominal -6 dB) V: 50 °
  • System Power Handling (Continuous/Program/Peak):
    • Continuous: 175 Watts
    • Peak: 700 Watts EIA RS-426A (eight hours)
  • LF Transducer: One 8-inch (203 mm) ICT-8-8 woofer
  • HF Transducer: One 1.3-inch (33 mm) diaphragm ICT-1-8 compression driver
  • Minimum Impedance: 6 ohms
  • Connector Type: 4-pin Phoenix/Euroblock screw terminals (up to 10 AWG wire)
  • Enclosure Material: 9-ply hardwood plywood
  • Grill: 18-gauge steel with cloth behind
  • Suspension: (6) M8 threaded points
  • Height: 9.72" (247 mm)
  • Width: 16.1" (409 mm)
  • Depth: 9.33" (237 mm)
  • Weight Net: 16.31 lbs (7.4 kg)
  • Shipping Weight: 22.71 lbs (10.3 kg)
