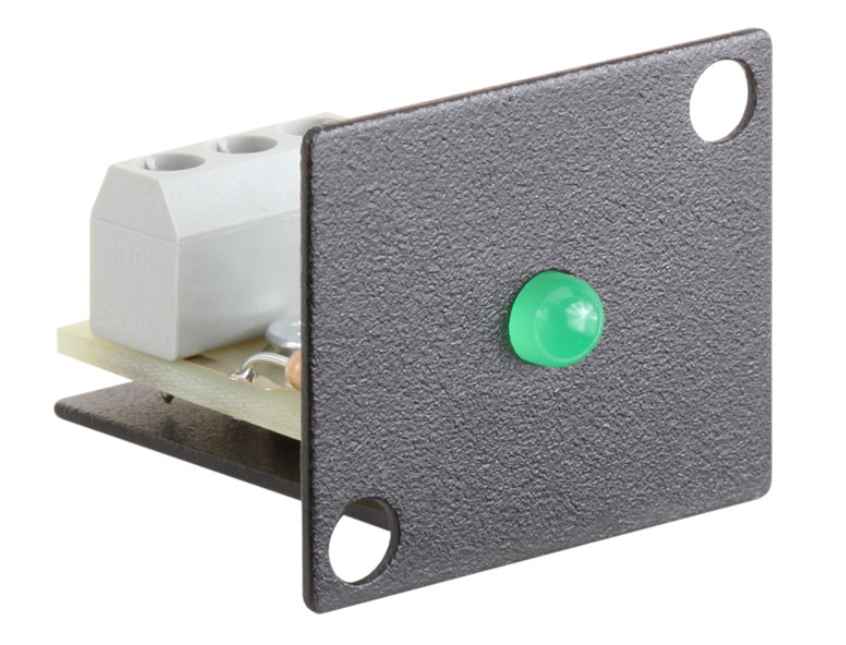

Radio Design Labs AMS-LEDG
Green LED Indicator for use with AMS-UF1, RMS-4, or SR-4

OUR PART #  AMS-LEDG

Our Price: $13.13
List Price: $15.49
You save 15%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Radio Design Labs AMS-LEDG is an accessory with a green LED indicator that mounts in AMS mounting frames and in standard D-style cutouts. A high quality terminal block is provided for the connections. The LED is powered from an external 24 Vdc. The input is protected against reverse voltage. The front plate and bracket are constructed of black satin powder coated steel. A black plastic bezel is provided to finish the D-style cutout hole when the accessory is mounted. These accessories are designed to mount behind the front panel of industry products that provide D-style cutouts.

Radio Design Labs AMS-LEDG Features:

  • Mounts in D-Style Standard Cutouts
  • Mounts in all RDL AMS Mounting Frames
  • Mounts in RDL Decora-Style Wall Plates
  • Availability of a Wide Variety of Associated AMS Accessories
  • Bezel Provides Professional Aesthetic Appearance
  • Provides Flexibility for Connections and Controls

Radio Design Labs AMS-LEDG Specifications:

  • Mounting: AMS mounts; D-Style cutouts
  • Depth (behind the panel): 1.35 in
  • Ambient Operating Environment: -20° C to 70° C
  • Input Voltage Range: 12 Vdc to 26 Vdc
  • 24 Vdc power supply current: 8 mA, Ground-referenced orfloating
  • Package Type: Bag
  • WEEE Weight: 0.045 lbs
  • Shipping Weight: 0.06 lbs

Radio Design Labs AMS-LEDG
Green LED Indicator for use with AMS-UF1, RMS-4, or SR-4

OUR PART #  AMS-LEDG

Product Information:

The Radio Design Labs AMS-LEDG is an accessory with a green LED indicator that mounts in AMS mounting frames and in standard D-style cutouts. A high quality terminal block is provided for the connections. The LED is powered from an external 24 Vdc. The input is protected against reverse voltage. The front plate and bracket are constructed of black satin powder coated steel. A black plastic bezel is provided to finish the D-style cutout hole when the accessory is mounted. These accessories are designed to mount behind the front panel of industry products that provide D-style cutouts.

Radio Design Labs AMS-LEDG Features:

  • Mounts in D-Style Standard Cutouts
  • Mounts in all RDL AMS Mounting Frames
  • Mounts in RDL Decora-Style Wall Plates
  • Availability of a Wide Variety of Associated AMS Accessories
  • Bezel Provides Professional Aesthetic Appearance
  • Provides Flexibility for Connections and Controls

Radio Design Labs AMS-LEDG Specifications:

  • Mounting: AMS mounts; D-Style cutouts
  • Depth (behind the panel): 1.35 in
  • Ambient Operating Environment: -20° C to 70° C
  • Input Voltage Range: 12 Vdc to 26 Vdc
  • 24 Vdc power supply current: 8 mA, Ground-referenced orfloating
  • Package Type: Bag
  • WEEE Weight: 0.045 lbs
  • Shipping Weight: 0.06 lbs
