Atlas Sound 510-4
Bidirectional Baffle, 4"

OUR PART #:  510-4

Our Price: $203.99
List Price: $254.99
You save 20%!
Write the first review.
Atlas Sound 510-4
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

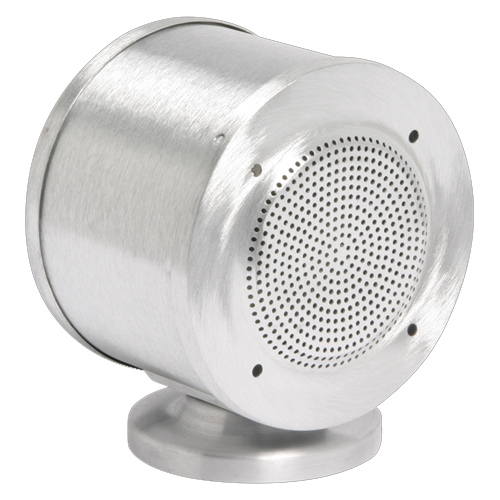

This compact aluminum baffle/enclosure is identical to the 410 Series with the addition of a circular mounting canopy complete with mounting hardware and second grille to enable bi-directional sound dispersion. Model 510-4 mounts a standard 4" (102mm) loudspeaker. Aluminum housing is patch-jute lined and undercoated to allow clear, audible loudspeaker performance by preventing mechanical and acoustic resonance. One grille per unit includes studs for convenient loudspeaker mounting. Complete assembly installs to a 4" (102mm) octagon E.O. box (by others). Finished in satin brushed aluminum.


  • Attractive, Non-Rusting Aluminum Construction
  • Bi-directional Models for 4" (102mm) Loudspeakers
  • Ideal for Corridor Applications Where Surface Mounting Space is Limited


  • Depth 4 3/4" (12.065 cm)
  • Diameter 6" (15.24 cm)
  • Shipping Weight 1.17 lbs (0.53 kgs)
  • Speaker Size 4

To be the first to review this item, click here.
