Receiver for IR702T


Our Price: $88.78
List Price: $109.87
You save 19%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

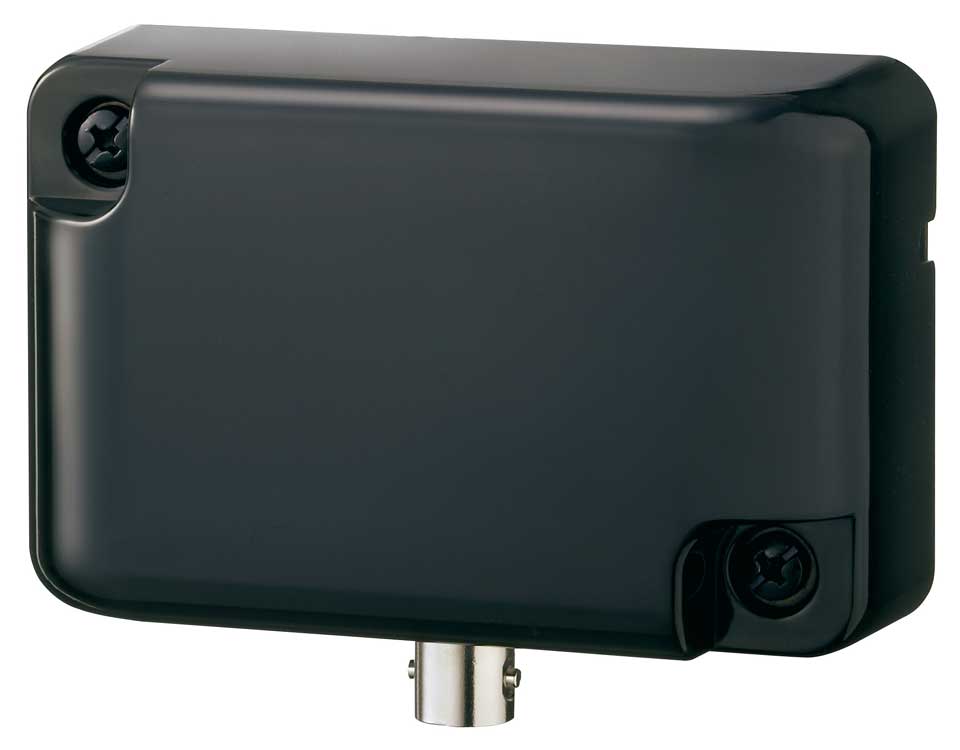

The IR-520R Infrared Wireless Receiver is designed for exclusive use with the IR-702T Infrared Wireless Tuner. It can be mounted to a wall or a microphone stand.


  • Mountable on a wall and on a microphone stand
  • Stand-Mount Brackets included
  • Equipped with power indicator LED
  • Reception area is up to approximately 49', line of sight



  • Power Source: 24VDC (supplied from the IR-702T)
  • Current Consumption: Max. 30mA
  • Connection Terminal: 75Ohm BNC jack
  • Operating Temperature: 32 degrees F to 104 degrees F
  • Operating Humidity: 30% to 85% RH
  • Finish: Filter Section: Polycarbonate, opitcal cut filter
  • Dimensions: 3.33" x 2.5" x 1.26"
  • Weight: 0.22lb
  • Accessories: Stand mounting bracket (1), Bracket mounting screw (2)

Infrared Detector

  • Wavelength: 870nm
  • Carrier Frequency: Channel A: 3.100MHz // Channel B: 3.350MHz
  • Reception Area: Approx. 50' in a space without any obstacles
