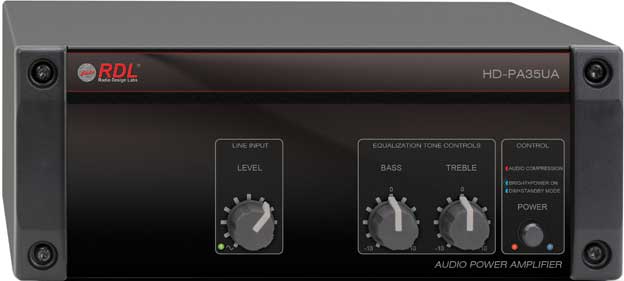

Radio Design Labs HD-PA35UA
35 Watt Power Amplifier - 25, 70, 100V, with Power Supply

OUR PART #  HD-PA35UA

Our Price: $239.20
List Price: $319.98
You save 25%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

Radio Design Labs' HD-PA35UA is a single input audio amplifier for systems demanding the highest energy efficiency.  It may be used as a single zone amplifier fed from a variety of RDL or OEM mixers.  It is ideal for providing one or more additional zones to a mix originating from another RDL HD series mixer amplifier.  The 35 watt power amplifier output is driven from a high-efficiency Class D amplifier stage. The amplifier normally shuts down (standby "sleep" mode) when audio is absent and automatically turns on when needed.  The amplifier output level may be VCA controlled using various optional RDL remote controls, or by industry standard 0 to 10 Vdc or 0 to 10k ohm controls.  The amplifier provides a constant voltage output (25 V, 70 V or 100 V).

The HD-PA35UA is engineered, tested and manufactured in the U.S.A. to strict energy conservation standards.  The unit consumes less than 1 watt of mains power in standby mode, and meets power amplifier efficiency specifications with an analog-filtered Class-D digital output stage.

The HD-PA35UA provides a front-panel control to set the input gain.  An optional remote control connected to the rear-panel RJ45 jack provides for remote adjustment of the output level.  The tone controls adjust the equalization at the amplifier output.

The presence of a signal at the input causes the HD-PA35UA to fully turn on, activating the power amplifier and all associated equalization and compressor circuitry.  When an input signal is absent, a delay timer is initiated.  Rear-panel DIP switches are provided to set the power-down delay timer to a value between 10 minutes and 2 hours in 10 minute increments.  After the time-out period, the HD-PA35UA enters the sleep mode until an input signal is received.  The switches may be set to disable the sleep mode for systems specifying continuous amplifier operation.

The amplifier includes an analog compressor/limiter for audio fidelity noticeably superior to conventional class D amplifiers with digital limiting.  Increasing the input gain can substantially increase the average output power beyond that of a standard 35 watt amplifier.  A red front-panel LED flashes when the compressor is preventing output clipping.  Normal audio level signals remain unaffected by the compressor thereby preserving audio dynamics.  The audio is compressed according to three dynamic time constants providing aural transparency while maintaining clean, unclipped amplified audio for input overloads of up to 20 dB.  The HD-PA35UA, with compression, is capable of producing average audio output levels and clarity normally expected from amplifiers with a much higher output power rating.

During power-up and power-down, the amplifier output is protected against clicks, pops and thumping by internal soft-start solid-state switches.

A blue POWER LED illuminates when the HD-PA35UA is powered from its external 24 Vdc power supply (included).  The power LED is dim when the amplifier is in the standby mode, and is bright when the amplifier is fully active.  A front-panel pushbutton is provided to manually cycle between standby and active modes.  The power amplifier is equipped with both thermal and output short-circuit protection.  The high-efficiency Class D output stage produces minimal heat for all levels of expected voice or music modulation.

Radio Design Labs HD-PA35UA Features:

  • One input with front-panel volume control
  • Bass and Treble tone controls
  • Designed as a single zone amplifier
  • Master volume VCA controlled with remote adjustmentcapability
  • Amplifier output on detachable terminal block
  • Unbalanced summing inputs on RCA jacks
  • Includes power supply
  • Automatic sleep mode meets strictest energy saving standards

Radio Design Labs HD-PA35UA Specifications:

  • Rated Power: 35 W RMS
  • Audio Input: Unbalanced stereo summing input on RCAjacks
  • Maximum Input Level: + 5 dBV (+11 dBV, one input);(for 1% THD+N at output)
  • Input level: -15 dBV (180 mV), (to cross compressorthreshold equaling 23 W amplified output, both input jacks driven)
  • Noise: <-75 dB (max gain)
  • THD+N: < 0.5% (1 kHz at compressor threshold)
  • Compressor: Threshold 2 dB below rated output,automatically adjusting attack and release times
  • Frequency Response: ± 3 dB (50 Hz to 18 kHz)
  • Tone Controls: ±10 dB @ 10 kHz, ±9 dB @ 100 Hz(front-panel) with center detent
  • Power Amplifier Output: 35 W RMS (25, 70 or 100 V);<1% THD+N
  • Indicators (3): Front-panel: Signal present (green),Compressor activity (red), Power (bright=on, dim=standby, blue)
  • VCA: Output level, 0 to 10 Vdc control, RJ45(compatible with RDL VCA wall controls)
  • Front-panel controls (4): Input, EQ (2, bass andtreble), Power (momentary pushbutton, toggle on/standby)
  • Rear-panel controls (4): Sleep (standby) mode delay (4binary switches)
  • Efficiency Standard Used: "Energy Star® ProgramRequirements for Audio/Video" Version 2.0
  • Sleep Mode Power Consumption: < 1 W (amplifier andincluded power supply)
  • Sleep Mode Delay: 10 minutes to 2 hours(switch-selectable in 10 minute increments)
  • Sleep Mode Disable: Selectable
  • Active Mode Delay: 2 seconds (nominal) after inputaudio detected
  • Audio Detector Threshold: -42 dBV
  • Ambient Operating Environment: 0° C to 50° C Maximum;20° C Recommended
  • Power Supply (included): 100 to 240 Vac, 50-60 Hz, 50W; 24 Vdc output to amplifier chassis
  • Dimensions (HxWxD): 3.5" x 8.5" x 10" (8.89 x 21.6 x25.4 cm)
  • Weight: 7.3 lbs (3.3 kg)
24VDC, 2A Universal Power Supply with North American Plug-End CordRadio Design Labs PS24V2A 24VDC, 2A Universal Power Supply with North American Plug-End Cord

Radio Design Labs' PS24V2A is a 24 volt DC Switching Power Supply, with North American cord, 2 Amp output and DC Plug. Input:  100 to 240 VAC Output:  24 Vdc, 2 A (UL, CSA) Dimensions:  2 in. (5 cm) x 1.33 ...

Usually ships in 7-14 business days.
Need it sooner? Call us!

Our Price:$70.79List Price: $94.71You save 25%!

Radio Design Labs HD-PA35UA
35 Watt Power Amplifier - 25, 70, 100V, with Power Supply

OUR PART #  HD-PA35UA

Product Information:

Radio Design Labs' HD-PA35UA is a single input audio amplifier for systems demanding the highest energy efficiency.  It may be used as a single zone amplifier fed from a variety of RDL or OEM mixers.  It is ideal for providing one or more additional zones to a mix originating from another RDL HD series mixer amplifier.  The 35 watt power amplifier output is driven from a high-efficiency Class D amplifier stage. The amplifier normally shuts down (standby "sleep" mode) when audio is absent and automatically turns on when needed.  The amplifier output level may be VCA controlled using various optional RDL remote controls, or by industry standard 0 to 10 Vdc or 0 to 10k ohm controls.  The amplifier provides a constant voltage output (25 V, 70 V or 100 V).

The HD-PA35UA is engineered, tested and manufactured in the U.S.A. to strict energy conservation standards.  The unit consumes less than 1 watt of mains power in standby mode, and meets power amplifier efficiency specifications with an analog-filtered Class-D digital output stage.

The HD-PA35UA provides a front-panel control to set the input gain.  An optional remote control connected to the rear-panel RJ45 jack provides for remote adjustment of the output level.  The tone controls adjust the equalization at the amplifier output.

The presence of a signal at the input causes the HD-PA35UA to fully turn on, activating the power amplifier and all associated equalization and compressor circuitry.  When an input signal is absent, a delay timer is initiated.  Rear-panel DIP switches are provided to set the power-down delay timer to a value between 10 minutes and 2 hours in 10 minute increments.  After the time-out period, the HD-PA35UA enters the sleep mode until an input signal is received.  The switches may be set to disable the sleep mode for systems specifying continuous amplifier operation.

The amplifier includes an analog compressor/limiter for audio fidelity noticeably superior to conventional class D amplifiers with digital limiting.  Increasing the input gain can substantially increase the average output power beyond that of a standard 35 watt amplifier.  A red front-panel LED flashes when the compressor is preventing output clipping.  Normal audio level signals remain unaffected by the compressor thereby preserving audio dynamics.  The audio is compressed according to three dynamic time constants providing aural transparency while maintaining clean, unclipped amplified audio for input overloads of up to 20 dB.  The HD-PA35UA, with compression, is capable of producing average audio output levels and clarity normally expected from amplifiers with a much higher output power rating.

During power-up and power-down, the amplifier output is protected against clicks, pops and thumping by internal soft-start solid-state switches.

A blue POWER LED illuminates when the HD-PA35UA is powered from its external 24 Vdc power supply (included).  The power LED is dim when the amplifier is in the standby mode, and is bright when the amplifier is fully active.  A front-panel pushbutton is provided to manually cycle between standby and active modes.  The power amplifier is equipped with both thermal and output short-circuit protection.  The high-efficiency Class D output stage produces minimal heat for all levels of expected voice or music modulation.

Radio Design Labs HD-PA35UA Features:

  • One input with front-panel volume control
  • Bass and Treble tone controls
  • Designed as a single zone amplifier
  • Master volume VCA controlled with remote adjustmentcapability
  • Amplifier output on detachable terminal block
  • Unbalanced summing inputs on RCA jacks
  • Includes power supply
  • Automatic sleep mode meets strictest energy saving standards

Radio Design Labs HD-PA35UA Specifications:

  • Rated Power: 35 W RMS
  • Audio Input: Unbalanced stereo summing input on RCAjacks
  • Maximum Input Level: + 5 dBV (+11 dBV, one input);(for 1% THD+N at output)
  • Input level: -15 dBV (180 mV), (to cross compressorthreshold equaling 23 W amplified output, both input jacks driven)
  • Noise: <-75 dB (max gain)
  • THD+N: < 0.5% (1 kHz at compressor threshold)
  • Compressor: Threshold 2 dB below rated output,automatically adjusting attack and release times
  • Frequency Response: ± 3 dB (50 Hz to 18 kHz)
  • Tone Controls: ±10 dB @ 10 kHz, ±9 dB @ 100 Hz(front-panel) with center detent
  • Power Amplifier Output: 35 W RMS (25, 70 or 100 V);<1% THD+N
  • Indicators (3): Front-panel: Signal present (green),Compressor activity (red), Power (bright=on, dim=standby, blue)
  • VCA: Output level, 0 to 10 Vdc control, RJ45(compatible with RDL VCA wall controls)
  • Front-panel controls (4): Input, EQ (2, bass andtreble), Power (momentary pushbutton, toggle on/standby)
  • Rear-panel controls (4): Sleep (standby) mode delay (4binary switches)
  • Efficiency Standard Used: "Energy Star® ProgramRequirements for Audio/Video" Version 2.0
  • Sleep Mode Power Consumption: < 1 W (amplifier andincluded power supply)
  • Sleep Mode Delay: 10 minutes to 2 hours(switch-selectable in 10 minute increments)
  • Sleep Mode Disable: Selectable
  • Active Mode Delay: 2 seconds (nominal) after inputaudio detected
  • Audio Detector Threshold: -42 dBV
  • Ambient Operating Environment: 0° C to 50° C Maximum;20° C Recommended
  • Power Supply (included): 100 to 240 Vac, 50-60 Hz, 50W; 24 Vdc output to amplifier chassis
  • Dimensions (HxWxD): 3.5" x 8.5" x 10" (8.89 x 21.6 x25.4 cm)
  • Weight: 7.3 lbs (3.3 kg)
24VDC, 2A Universal Power Supply with North American Plug-End CordRadio Design Labs PS24V2A 24VDC, 2A Universal Power Supply with North American Plug-End Cord

Radio Design Labs' PS24V2A is a 24 volt DC Switching Power Supply, with North American cord, 2 Amp output and DC Plug. Input:  100 to 240 VAC Output:  24 Vdc, 2 A (UL, CSA) Dimensions:  2 in. (5 cm) x 1.33 ...

Usually ships in 7-14 business days.
Need it sooner? Call us!

Our Price:$70.79List Price: $94.71You save 25%!

Add to Cart

We're sorry, only of this item available



Call a Sales Pro at 800-356-5844 for more information
