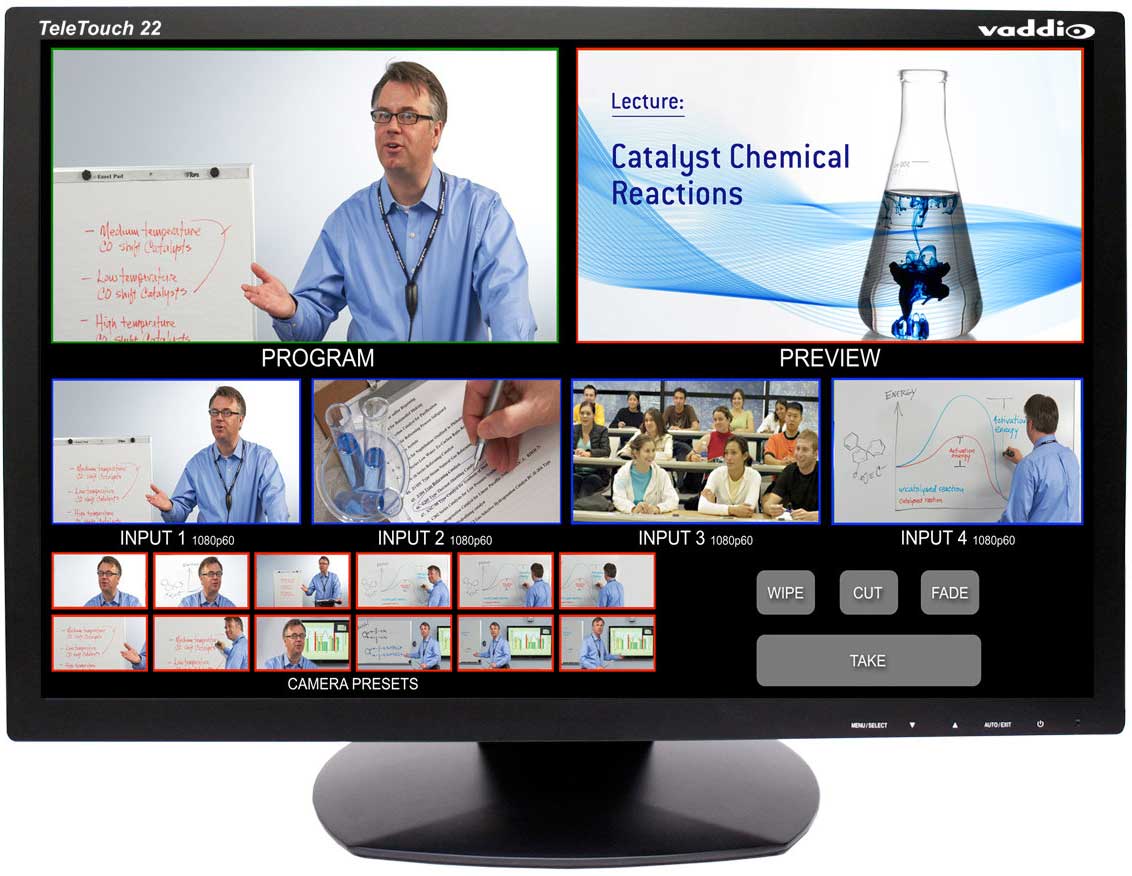

Vaddio 999-5520-022 22" Teletouch HD Touch Screen LCD Monitor

The TeleTouch 22" Touch Screen LCD Monitor with base works in conjunction with the ProductionVIEW HD MV with built-in multiviewer. The touchscreen allows all presets and camera positions to be displayed and activated by touching the image itself. The multiviewer can be configured to display up to six input windows and two larger "Preview" and "Program" windows with red and green tally window borders. In addition, each camera input can have up to 12 stored "video thumbnail" preset camera shots.

FEATURES

• 1080p/60 and 1080p/50 input resolutions
• 22" diagonal resistive touch screen surface
• DVI and RS-232 cables included
• World wide power cord set included (North America, Euro & UK)

SPECIFICATIONS

• LCD Panel 22” TFT Color
• Touch Screen Type 5-Wire Resistive Touch
• Control Interface RS-232 (DB-9F)
• Resolutions 1080/60p & 1080/50p
• Video Format/Input DVI-D DVI-D
• Aspect Ratio 16:10
• Brightness 300 nit (cd/m2 )
• Contrast Ratio 1000:1
• Pixel Pitch 0.282mm
• Display Colors 16.7 Million
• Viewing Angle 170° (H) x 160° (V)
• Power Supply 12VDC, 5.0A with NA, Euro and UK Power Cord Set
• Mounting Base or 100mm x 100mm VESA Hole Pattern
• Dimensions(W x H x D) 20.1”x13.3”x2.4”
• Weight 13.4 lbs
• Supplied Cables DVI and RS-232 (DB-9 M to F)
