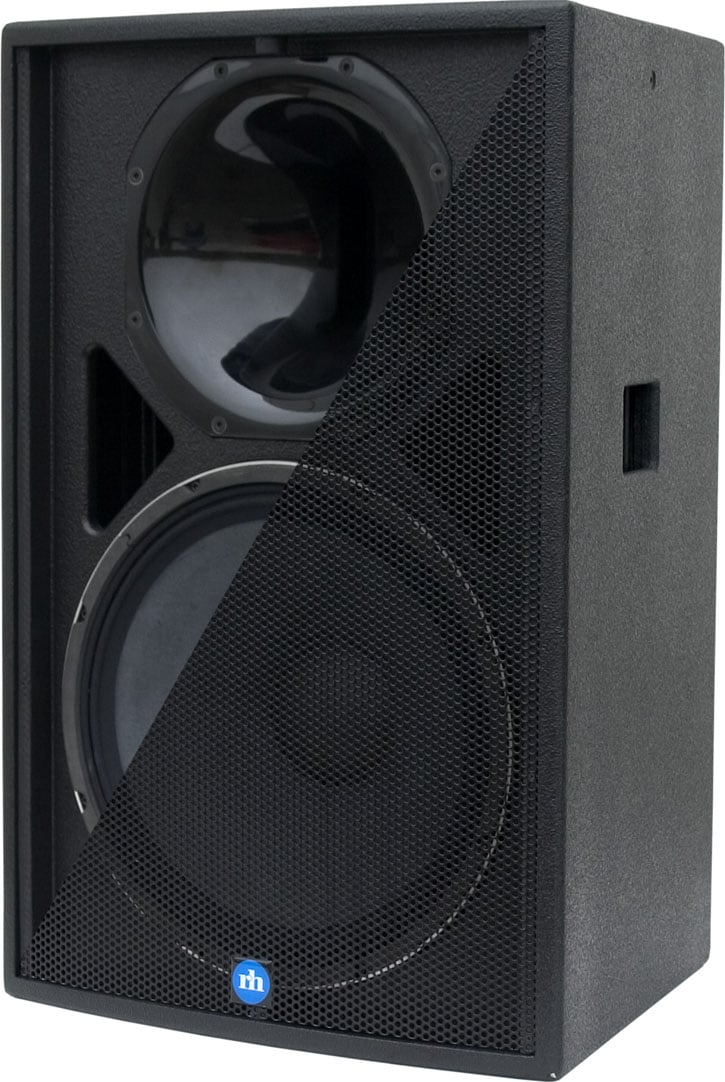

Renkus-Heinz CFX151-M10
2-Way Passive 15" Speaker with M10 Threads

OUR PART #  CFX151-M10

Selected Model Price: $759.00
List Price: $1,000.00

Save up to 24%! (Low Price Guarantee)
Select model: (shipping times are approximate)

NOTE: Shown above in black, comes in white or black.  Please specify desired color before purchase.

Every CF & CFX Series loudspeaker is engineered by Renkus-Heinz to unrivaled standards of quality and innovation.  Before they ship them, your loudspeakers have to meet our exacting requirements, for performance that will make you proud and durability that will keep you sounding great.


  • Compact Design: Outstanding, full-range ± 3 dB, 60 Hz to 18 kHz performance in a compact, space-saving design.
  • RHAON Renkus-Heinz Audio Operations Network: All self-powered CF151 series cabinets are available with RHAON for flexible digital signal distribution, loudspeaker management and control.
  • Exclusive 90° by 40° Complex Conic Design: Provides constant beamwidth/directivity without the problems of conventional rectangular horns; can be rotated 90° within the cabinet for wide or deep listening spaces.
  • 2" Extended Range Titanium HF Driver: Provides smooth, low distortion, high frequency performance to18 kHz.
  • Heavy-Duty 15" Woofer: Easily handles 700 Watts of program power.


  • Sensitivity: 100 dB (1W/1m)
  • Max. SPL: 131 dB peak
  • Dispersion: 90° H by 40° V
  • Frequency Response: ± 3 dB, 60 Hz to 18 kHz
  • HF Driver: 2" SSD203-8F driver, 40 W RMS, 80 W pgm
  • LF Driver: 15" model SSL15-15F, 350 W RMS @ 4 Ohms,
    700 W pgm; exceptfor CFX151-8 which uses
    model SSL15-19, 8 Ohm, 350W RMS woofer.
  • Enclosure: Hardwood, perforated metal grille
  • Connectors: Screw terminals & looping Neutrik 4-pin, SpeakOn style connectors
  • Finish: Black or white paint
  • Hardware:
    - 6-point univ. mtg. hdw. (Metric M10 threads)
    - U-bracketattachment points
    - 35 mm (1 3/8”) tripod socket
  • Dimensions: 29-3/8" H x 19" W x 16-7/8" D (74.6 cm x 48.3 cm x 42.8 cm)
  • Net Weight: 70.2 lbs (31.8 kg)
