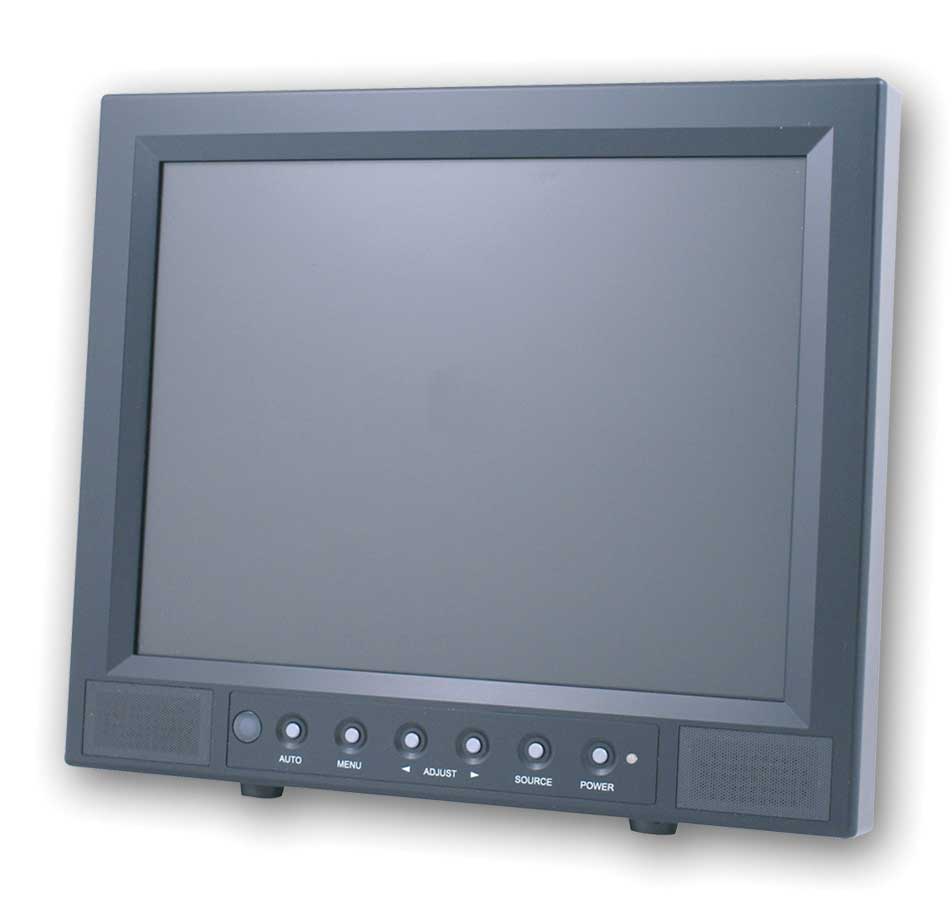

Speco Technologies VM10LCD
Monitor 10" LCD


Speco Technologies' VM10LCD is a 10" TFT LCD monitor designed for use in video security applications.
Learn More
Our Price: $1,081.50
Write the first review.
Speco Technologies VM10LCD
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

Speco Technologies' VM10LCD is a 10" TFT LCD monitor designed for use in video security applications.


  • Professional TFT LCD for surveillance with multiple connections
  • Compatible with VGA (640x480)
  • Picture-in-Picture feature that allows multi-picture display (in VGA mode)
  • High brightness level and contrast ratio with super wide viewing angle
  • Built-in 3D comb filter and 3D de-interlace for display picture performance
  • Fast response time and refresh rate
  • Provides 6500K and 9300K color temperature selection for user's preference
  • Provides Key Lock and power memory function for easy management
  • CCD mode control auto-adjusts incoming video signal level
  • Video looping output supports 75 ohm auto termination
  • Audio and live-out function with stereo phone jack output
  • Remote controller included
  • Video inputs support NTSC/PAL standards
  • VESA standards bracket compatibility (75mm x 75mm)


  • Panel Size: 10.4"
  • Aspect Ratio: 4:3
  • Resolution/Scan: 640 x 480
  • Brightness: 350cd/m2
  • Contrast Ratio: 300:1
  • Viewing Angle (H/V): 70\70\40\70
  • Response Time: 6ms (typ.)
  • Sync. Format: NTSC/PAL
  • Frequency (Horizontal): PC: 31.5K
  • Frequency (Vertical): PC: 60Hz - 75Hz, Video: 50/60Hz
  • Video Interface: D-SUB 15IN x 1,Video In x 2 (BNC),Video Out x 2 (BNC), S-Video In x 1
  • Audio Interface: In x 2, Audio Out x 2, PC-Audio In x 1
  • Input Power: DC In x 1
  • Termination: 75 Ohm (auto termination)
  • Built-In Speakers: Yes (2pcs)
  • Front Panel Button: Power, Source, Up, Down, Menu, Auto
  • OSD Language: Mulitple Languages
  • VESA Mounting: VESA 75mm x 75mm
  • Weight: 6.4lbs
  • Dimensions: 10.3" x 8.8" x 2.5"
  • Power: 12VDC
  • Power Consumption (max): 17.2W
  • Operating Temperature: 14 degrees F to 122 degrees F
  • Humidity: 20% to 80%
  • Included Accessories: Power Cord, User Manual, Remote Control
