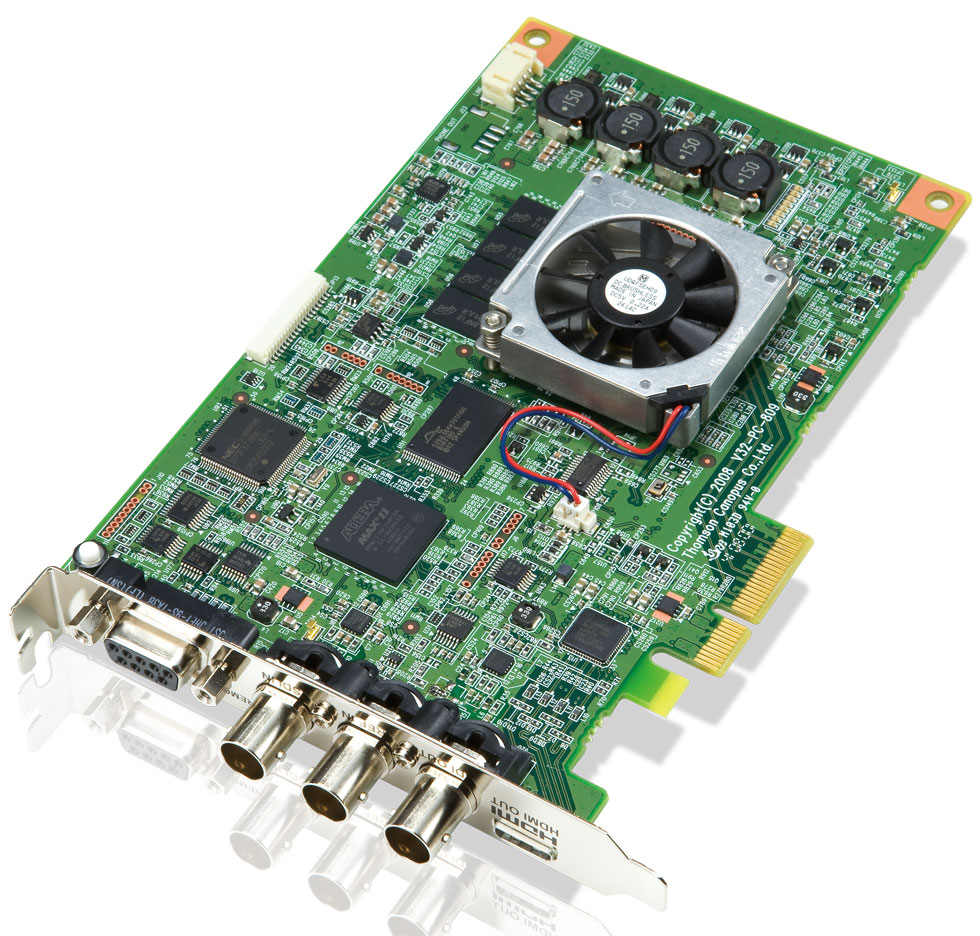

Grass Valley STORM3G
PCIe Card with Edius Software

OUR PART #:  STORM3G

Our Price: $1,764.00
List Price: $1,999.00
You save 12%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Grass Valley STORM3G
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The STORM 3G hardware is a high-quality solution for multi-format editing - one that supports 3G-SDI-based editing and tapeless workflows and the ability to preview projects in real time, using afforable HDMI monitors.  Based on the PCI Express form factor, it includes EDIUS nonlinear editing software, 3G-SDI inputs and outputs, an HDMI video output for full-resolution, real-time preview monitoring, and embedded HDMI audio for high-quality audio monitoring.

STORM 3G ships with a full version of EDIUS 6 software.

Features:

  • 3G-SDI input and output with embedded audio and timecode
  • HDMI output for full-resolution, real-time monitoring from the included EDIUS NLE software
  • Embedded HDMI audio output for high-quality audio monitoring
  • Video and audio output stays perfectly in sync, with editing windows for accurate editing and trimming
  • Reference input supports bi-level or tri-level syn
  • RS-422 master or slave machine-control support (slave function required the EDIU VTR Emulation option, available separately.
  • Edit any mix of SD and HD resolution video content together in real time
  • Works with many different native video formats, including AVCHD, AVC-Intra, and MPEG-2, uncompressed, and more
  • Supports newer file-based formats, including Infinitely JPEG 2000, XDCAM HD and XDCAM EX, P2 (DVXPRO and AVC-Intra), and GFCam

Specifications:

  • Bus Interface: PCI Express Rev. 1.2 x4 lane
  • Video Formats (Input/Output):
    - 1920x1080i50/59.94
    - 1920x1080p50/59.94
    - 1920x1080psF23.98/24/25/29.97
    - 1280x720p50/59.94
    - 720x486i59.94
    - 720x576i50
  • Video Formats (Output):
    - 1920x1080i50/59.94
    - 1920x1080i50/59.94
    - 1280x720p50/59.94
    - 720x480i59.94
    - 720x576i50
    - 720x480p59.94
    - 720x576p50
  • Video Output Connector:
    - Video: SMPTE-292M, SMPTE-259M-C
    - Audio: SMPTE-299M, SMPTE-272M-A
    - Timecode: LTC/VITC Packet (HD), D-VITC (SD)
  • Mini HDMI 1 port:
    - Video: YCbCr 4:2:2 or RGB 4:4:4 (8-bit/10-bit)
    - Audio: LPCM 8-channel (24-bit/48 kHz)
  • Audio Formats: LPCM 48 kHz/24-bit
  • Audio Output Connectors: Mini HDMI LPCM 8-channel; 3G-SDI embedded audio
  • Reference Input: BNC, black burst or tri-level sync
  • Machine Control: 9-pin D-Sub RS-422A
  • Power Requirements: +12V: 1.6A, +3.3V: 0.5A
  • Physical Dimensions: 4.375 x 6.6 inches

Minimum System Requirements:

  • CPU: Any Intel Core 2 or Core iX CPU.  Intel or AMD singel core CPU with a 3 GHz processor speed or faster (multiple CPUs and/or multi-core CPUs are recommended).  SSE2 and SSE3 instruction set supported.
  • Memory: 1 GB RAM (4 GB or more recommended)
  • One free PCI Express x1 bus slot
  • A grphics card with at least 256 MB or graphics memory (512 MB recommended) with support for Direct3D 9.0c or later, and PixelShader Model 3.0 or later is required.
  • Sounds card with WDM driver support required
  • DVD-ROM drive is required for software installation
  • Free USB port is required for security key
  • Windows XP, Windows Vista or Windows 7
