Leviton CTP-7-0096 Innovator 48/96 Lighting Console, 120/240V

Leviton CTP-7-0096 Innovator Lighting Console Features:

• Maximum 384 stage channels
• 512 dedicated moving light channels
• Operates in both two-scene manual and multi-scenememory modes
• Trackball and seven encoder wheels for simplifiedmoving light control
• Pre-programmed or user defined moving lightattributes
• 48 (or 96) individual channel faders
• Video and LCD display (video monitor sold separately)
• Dual monitor option
• Built-in alphanumeric labeling capability
• Controls up to 256 automated devices
• Proportional soft patching with custom dimmerprofiles
• Advanced cue and submaster parameters
• MIDI compatible (MIDI show control and standard MIDIcommands)
• Real-time clock
• Three (3) DMX universes, (1536 Dimmers)
• ColorNet® compatible
• UL listed and C-UL listed

Leviton CTP-7-0096 Innovator Lighting Console Specifications:

• 48 channels x 2 scenes (manual) or maximum 384channels (memory)
• Maximum 600 cues per show
• Maximum 500 groups per show
• 512 moving light channels
• 96 channel faders
• 24 submaster faders with 8 pages(maximum 192submasters)
• 1,536 dimmers
• Memory Functions:
  • 3.5" HD disk drive - 1.44 MB disk memory
  • Operating system user-updated via floppy disk
  • Selective data retrieval from disk
  • Maximum 500 user-programmable macros
  • Alphanumeric naming of cues, Effects, Groups, Subsand Shows
  • Pre-programmed library of user definable moving light attributes
• Patch Capability:
  • 1,536 dimmers
  • Proportional levels assignable to each dimmer
  • Custom profiles assignable to each dimmer
• Cue Functions:
  • Multi-part cues: 8 parts per cue
  • Links with other cues
  • Custom cue fade profiles
  • Delay parameter
  • Follow parameter
  • Cue macros
  • Effects fade in, out of cues
• Submasters/Effects:
  • Submasters individually programmable as Pile-on,Inhibitive, or Effect
  • Submaster Fade times (separate Up, Down and Dwelltimes)
  • Submaster Toggle Mode allows for sustained
• Submasters:
  • 600 effects per show maximum
  • 100 steps per effect
  • Effect, fade and hold times
  • Effect patterns: Forward, Reverse, Bounce and Random
  • Effect steps can be assigned groups, subs, cues or channel levels
• Playback Controls:
  • Grandmaster fader
  • 2 pairs of assignable playback faders with TakeControl buttons
  • 7 encoder wheels
  • Load key for executing cues out of sequence
  • 8 display select keys
  • 8 screen function (“soft”) keys
  • 8 programmable macro keys
  • Trackball for rate, level, position hold and backbuttons
  • Blackout switch
  • Cue check function
• Output/Interfaces:
  • DMX512 or CMX dimmer protocols
  • Handheld remote port
  • Printer port
  • MIDI In/Out/Through - MIDI and MIDI show controlcommands, MIDI time code
  • VGA color monitor(s) (sold separately)
  • 2 AC convenience outlets
  • 100 - 240VAC 50/60 Hz power supply
  • DMX input
  • 8 external macro inputs
  • ColorNet® RJ45 and AUI
• Warranty:
  • Two year warranty
  • Free software upgrades during warranty period

Note

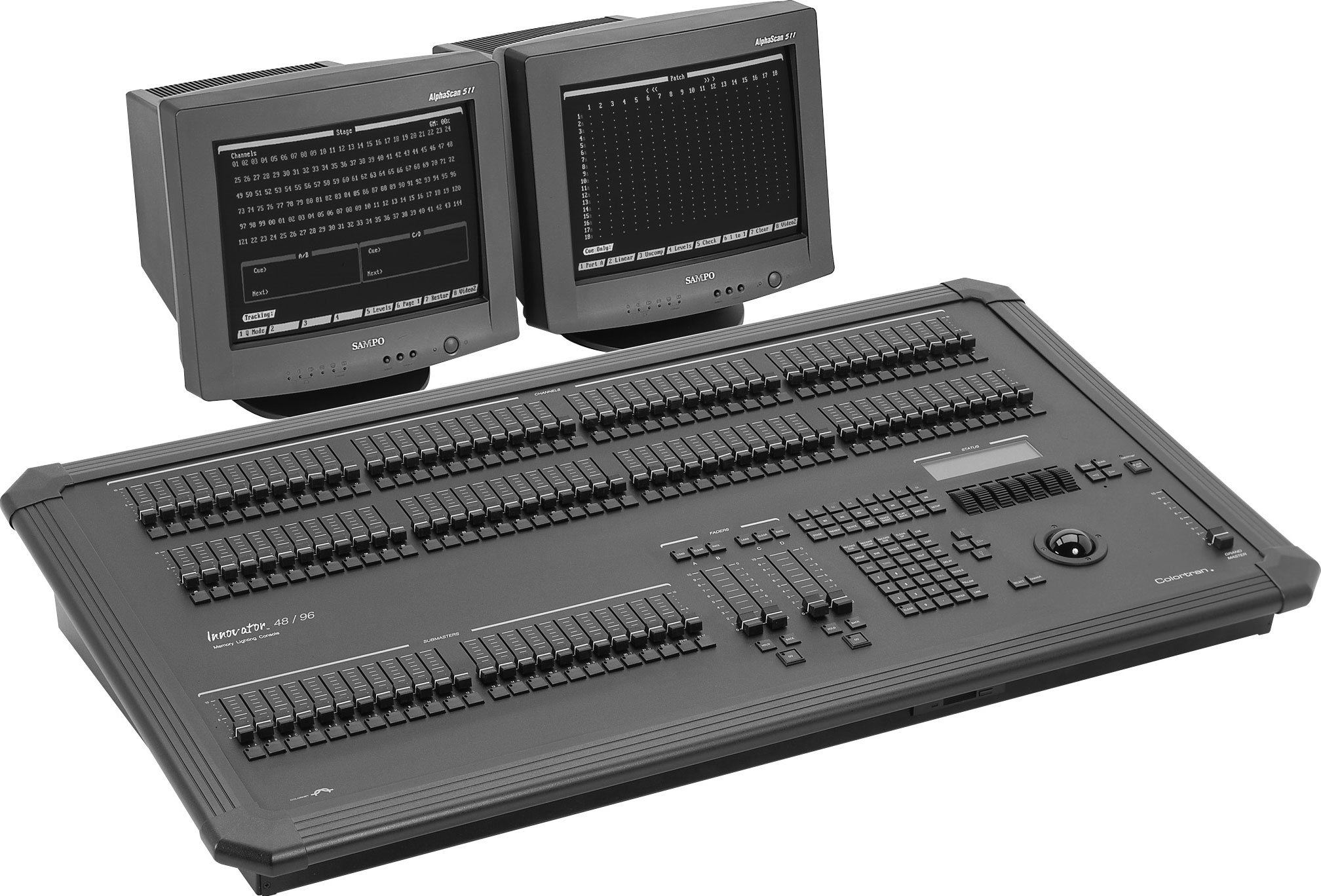

NOTE: Monitors shown in the picture above do NOT come with purchase of the CTP-7-0096.
