Philips Color Kinetics 116-000025-02
White ColorBlast 12 LED Fixture with 10° Beam Angle

OUR PART #:  116-000025-02

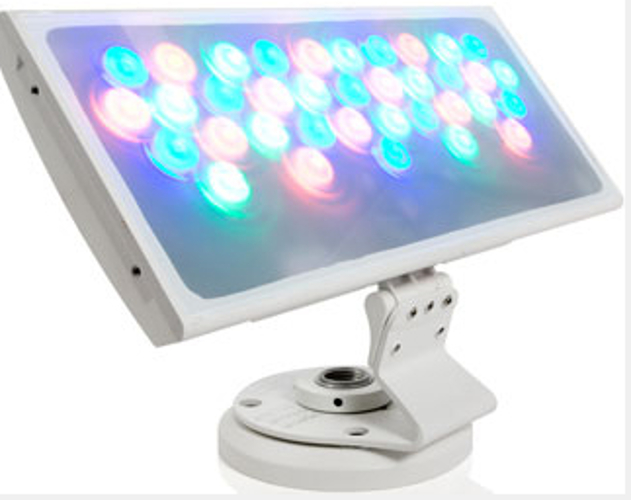

NOTE: Shown above in white, comes in BLACK .
Learn More
Similar Products

NOTE: Shown above in white, comes in BLACK .

Philips Color Kinetics' ColorBlast® 12 LED fixtures generate rich, saturated colors and color-changing effects for a range of wall-washing and floodlighting applications.  Designed with the needs of lighting designers, architects, and retail window directors in mind, ColorBlast 12 can be used in both indoor and outdoor installations.  High-intensity LEDs produce superior light output of over 1200 lumens.  ColorBlast 12 also offers full pan and tilt rotation, flexible mounting options, two beam angles, and superior control through Philips or third-party DMX controllers.

Philips Color Kinetics ColorBlast Features:

  • Comes with a clear glass lens (10° beam angle) affords extended light projection.
  • Outdoor rated – Fully sealed for maximum fixture lifeand IP66-rated for outdoor applications, ColorBlast 12 fixtures meet or exceed specifications for use in wet locations. Rugged, die-cast aluminum housing isavailable in white or black powder-coated finish.
  • Flexible mounting options – The versatile fixture canopy base can be mounted to a junction box or directly to a wall, ceiling,or floor. A liquid-tight cable fitting seals the canopy opening for use in damp or wet environments.
  • Versatile light positioning – The locking canopy base offers friction-free rotation of up to 350°, and 110° fixture tilting lets installers quickly aim the fixture without special tools.
  • Unified power and data cable – Each ColorBlast 12 fixture comes with a 60ft (18.3 m) unified power and data cable to minimize wiring. ColorBlast 6 is intended for use with PDS-150e and PDS-60 24V power / data supplies.

Philips Color Kinetics ColorBlast Specifications:

  • Beam Angle: 10°
  • Lumens: 1207
  • Color Range: 16.7 million additive RGB colors; continuously variable intensity
  • Mixing Distance: 6" (152 mm) to uniform light
  • Lumen Maintenance*: 50,000+ hours L50 @ 50° C (full output)
    *L50 = 50% maintenance of lumen output. (When light output drops below 50% of initial output.) Ambient temperature specified.
  • Input Voltage: 24 VDC
  • Power Consumption: 50 W maximum at full output, steady state
  • Interface:
    • PDS-150e 24V (DMX / Ethernet)
    • PDS-60 24V (Pre-programmed or DMX /Ethernet)
  • Control System: Philips full range of controllers, including Light System Manager and iPlayer 3, or third-party DMX controllers
  • Dimensions (HxWxD): 8.4" x 12.6" x 5.1" (213 x 320 x 130 mm)
  • Weight: 4.2 lbs (1.9 kg)
  • Housing: Die-cast aluminium, black or white powder-coated finish
  • Lens: Clear glass
  • Fixture Connections: 60 ft (18.3 m) unified power /data cable
  • Operating Temperature: -40° – 122° F (-40° – 50° C)
  • Startup Temperature: -4° – 122° F (-20° – 50° C)
  • Humidity: 0 – 95%, non-condensing
  • Maximum Fixture Run Length:
    • 60 ft (18.3 m) standard
    • 150 ft (45.7 m)maximum
    • 400 ft (121.9 m) total per power / data supply
  • Certification: UL / cUL, CE, PSE
  • LED Class: Class 2 LED product
  • Environment: Dry / Damp / Wet Location, IP66
