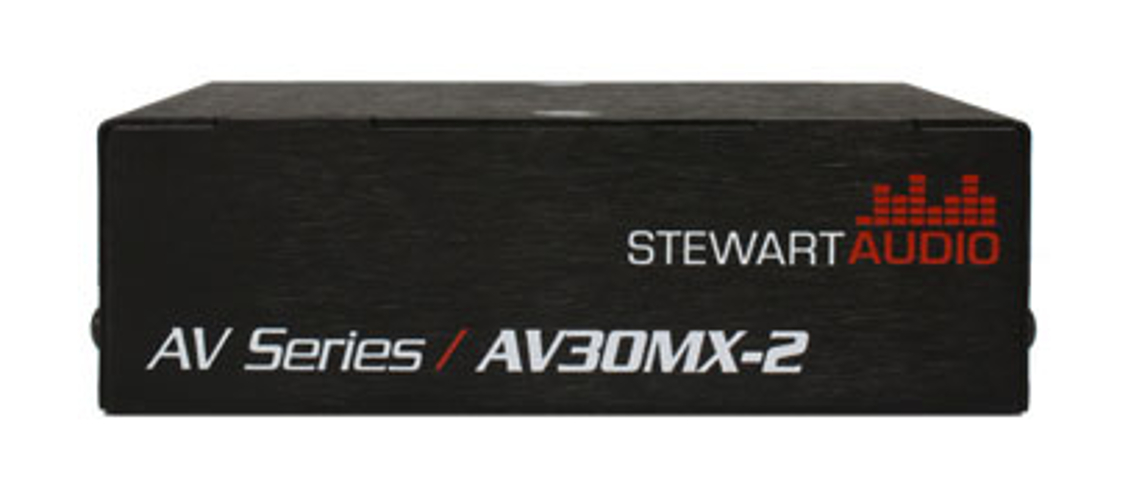

Stewart Audio AV30MX-2
Mixer Amp 30w x 2 @ 4/8 Ohms

OUR PART #  AV30MX-2

Our Price: $215.00
List Price: $250.00
You save 14%! (Low Price Guarantee)
In Stock

Stewart Audio's subcompact AV30MX-2 is built to meet the demands of high-quality commercial, industrial and Pro Audio sound installations. Low cost, lightweight and convection cooling make this Class D mixer amplifier flexible enough for a broad range of applications requiring quiet amplification. With an extremely compact form factor, the AV30MX-2 allows amplification to be located in places off-limits to normal mixer amplifiers without compromising sound or power. Like all Stewart products, the AV30MX-2 is designed for sonic accuracy, high efficiency and extended duty cycles. Our Signal Sense Power Technology™ (SSPT ™) ensures the amplifier is only powered when there is a signal present, saving energy and extending product life.

Stewart Audio AV30MX-2 Features:

  • Music and fire alarm muting
  • Clean full-range dynamic power
  • Signal detect trigger for sleep and wake up
  • Multiple mounting options
  • External inline power supply

Stewart Audio AV30MX-2 Specifications:

  • 4 Ohm Stereo Power: 30W
  • 8 Ohm Stereo Power: 30W
  • Frequency Response (+/- 3dB, 1W): 30Hz-20kHz
  • THD+N: <.1% @ 1W
  • Signal-to-Noise Ratio: > 100dB
  • External Mute: 5-12VDC
  • Slew Rate: 30V/microsecond
  • Input Sensitvity: .5V (-3dBV)
  • Standard Voltage Gain: 28X (26.5dB)
  • Input Impedance (Unbalanced): 10k Ohms
  • Standby, Idle Current Draw, 1/8 Power Draw: 0.005/0.01/0.15 Amps
  • Class: D
  • Input Connectors: 1/8" Stereo, Dual RCA
  • Output Connectors: Euro Block
  • Power Supply: External in-line 48VDC(included)
  • Cooling: Convection-Cooling (No Fans)
  • Controls: 2 Independent Level Controls
  • LED Indicators: Power, Signal Present & Clip
  • Construction: Aluminum Chassis
  • Dimensions: 1.25" x 4.35" x 3.2"
  • Weight: < .37lbs
  • Warranty: 3 Year Manufacturer's
  • Plenum Rating: UL 2043 Approved

[See data sheet for more information]

Click to download

Stewart Audio AV30MX-2
Mixer Amp 30w x 2 @ 4/8 Ohms

OUR PART #  AV30MX-2

Product Information:

Stewart Audio's subcompact AV30MX-2 is built to meet the demands of high-quality commercial, industrial and Pro Audio sound installations. Low cost, lightweight and convection cooling make this Class D mixer amplifier flexible enough for a broad range of applications requiring quiet amplification. With an extremely compact form factor, the AV30MX-2 allows amplification to be located in places off-limits to normal mixer amplifiers without compromising sound or power. Like all Stewart products, the AV30MX-2 is designed for sonic accuracy, high efficiency and extended duty cycles. Our Signal Sense Power Technology™ (SSPT ™) ensures the amplifier is only powered when there is a signal present, saving energy and extending product life.

Stewart Audio AV30MX-2 Features:

  • Music and fire alarm muting
  • Clean full-range dynamic power
  • Signal detect trigger for sleep and wake up
  • Multiple mounting options
  • External inline power supply

Stewart Audio AV30MX-2 Specifications:

  • 4 Ohm Stereo Power: 30W
  • 8 Ohm Stereo Power: 30W
  • Frequency Response (+/- 3dB, 1W): 30Hz-20kHz
  • THD+N: <.1% @ 1W
  • Signal-to-Noise Ratio: > 100dB
  • External Mute: 5-12VDC
  • Slew Rate: 30V/microsecond
  • Input Sensitvity: .5V (-3dBV)
  • Standard Voltage Gain: 28X (26.5dB)
  • Input Impedance (Unbalanced): 10k Ohms
  • Standby, Idle Current Draw, 1/8 Power Draw: 0.005/0.01/0.15 Amps
  • Class: D
  • Input Connectors: 1/8" Stereo, Dual RCA
  • Output Connectors: Euro Block
  • Power Supply: External in-line 48VDC(included)
  • Cooling: Convection-Cooling (No Fans)
  • Controls: 2 Independent Level Controls
  • LED Indicators: Power, Signal Present & Clip
  • Construction: Aluminum Chassis
  • Dimensions: 1.25" x 4.35" x 3.2"
  • Weight: < .37lbs
  • Warranty: 3 Year Manufacturer's
  • Plenum Rating: UL 2043 Approved

[See data sheet for more information]

Click to download
