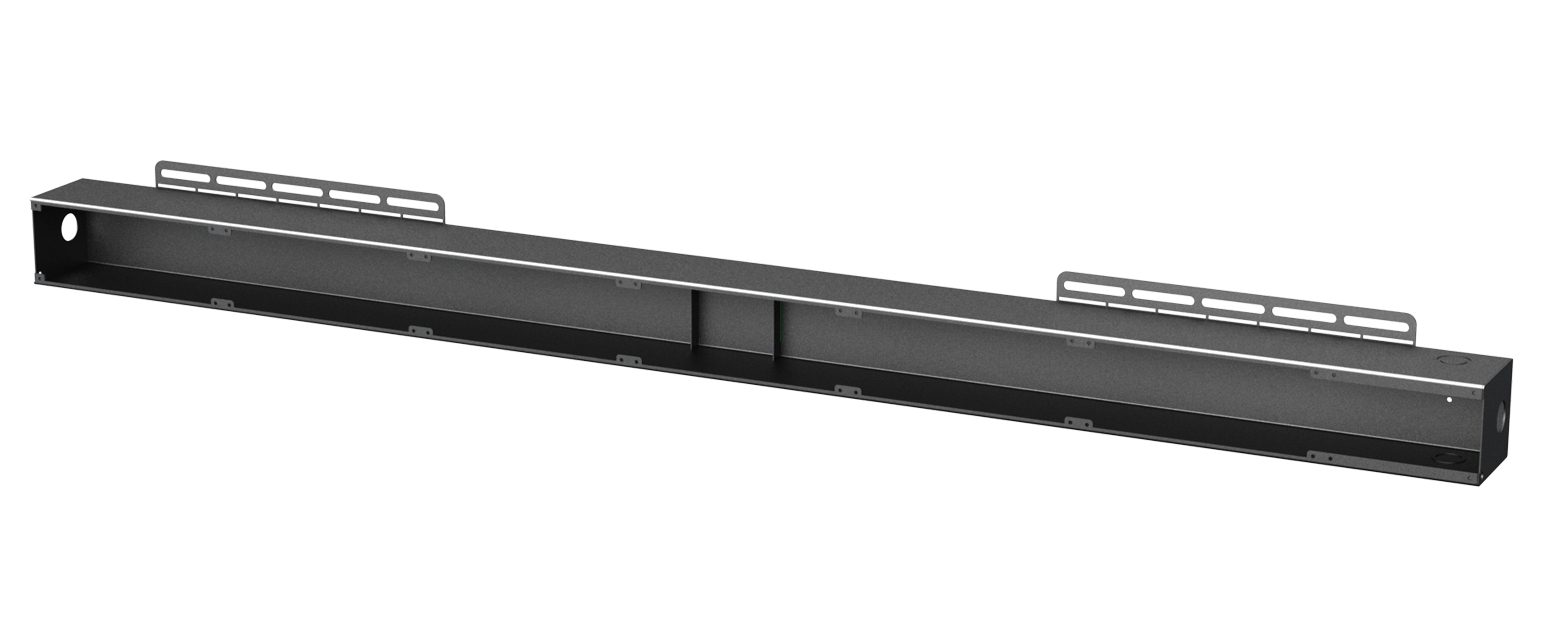

Atlas IED ECM-RACEWY6 Raceway, for x6 ECM20 or ECM20M

The ECM-RACEWY6 is designed to house up to six ECM-20/M modules to provide up to six separate 20A AC legs for up t 120A of power distribution. There are four ½" and ¾" dual knockouts that support standard electrical conduit components for wiring 120V AC mains into the raceway housing from the electrical panel. If six sequenced sections are not needed, two ECM-3BP blank plates are included to cover unused ECM module slots. Other blank plates are available as an accessory item (ECM-3BP).

The ECM-RACEWY6 can be mounted into most racks that have at least 60" internal height and the Raceway has breakaway mounting tabs that make it convenient to secure the Raceway in most applications.

Atlas Sound ECM-RACEWY6 Features:

• Housing for Up to 6 ECM Modules
• 4 Electrical Inlets
• Finished in Black Paint

Atlas Sound ECM-RACEWY6 Specifications:

• Height 3.0" (7.6cm)
• Length 56.5" (143.5cm)
• Depth 3.375" (8.5cm)
• Weight 11.75 lbs. (5.32 kg)
