Innovox Audio SLA-4.1 Tilt
Asymmetrical Line Array Speaker with 4x 4" LF Drivers

OUR PART #:  SLA-4.1-TILT-BLK

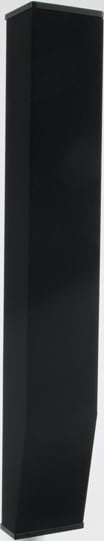

The Innovox Audio SLA-4.1 Tilt loudspeaker is an ultra-compact 2-way asymmetrical line array.
Learn More

Call for price! Not available online.

Similar Products

The Innovox Audio SLA-4.1 Tilt loudspeaker is an ultra-compact 2-way asymmetrical line array.  It features a ribbon tweeter with a 10-degree down angle, matched with four low-profile 4" woofers.  Designed for wall or column mounting, the SLA-4.1 Tilt features a vertical coverage pattern with an integral 10-degree down angle.  This allows the loudspeaker to be mounted tightly to the wall plane above the listener's ear level, while placing the listener within the vertical coverage pattern.  A slotted split-U bracket is included which allows the unit to either pivot or to be mounted tight to the wall.

Innovox Audio SLA-4.1-TILT Features/Specifications:

  • Frequency Response: 120 Hz - 20 kHz
  • Sensitivity: 95 dB @ 2.8 volts / 1 meter
  • Impedance: 4 ohms (70V version available)
  • Power Handling: 175 watts, program
  • Maximum Output: 122 dB peak @ 1 meter
  • Nominal Coverage Angles: 120° H x 25° V with built-in 10° down angle
  • Dimensions: 29.75" H x 4.50" W x 3.25" D
  • Net Weights: 10.4  lbs.
  • System Configuration: Compact frequency-shaded line array with down-angled HF element
  • Components and Loading: (4) 4" cone LF drivers; (1) 5" ribbon HF tweeter
  • Recommended High Pass Filter:  00 Hz, 4th order
  • Cabinet Type: Sealed low-profile column
  • Enclosure Material: Cold-rolled steel, composite endcaps
  • Connectors: Speakon NL4, dual binding-head screws
  • Suspension Hardware: Split U-bracket, Six 1/4-20 threaded holes in endcaps and back, Omni Mount 30.0-series compatible pattern
  • Grill: Integral fabric wrap
