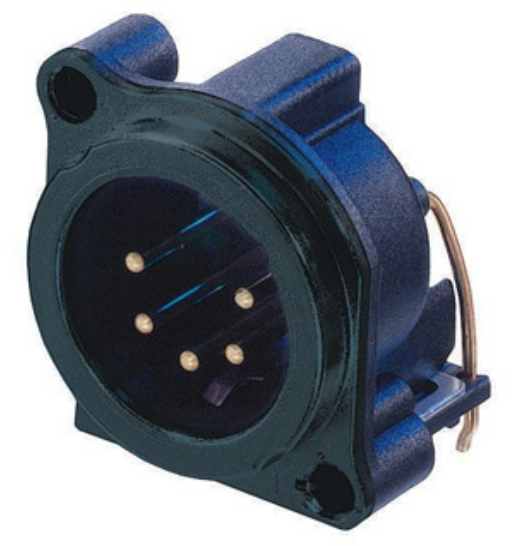

Neutrik NC5MBH-B
5-Pole XLR-M Panel Mount Receptacle

OUR PART #:  NC5MBH-B

The Neutrik NC5MBH-B is a 5-pole male XLR receptacle, grounding: separate ground contact to mating connector shell and front panel, horizontal PCB mount...
Learn More
Our Price: $4.82
List Price: $6.85
Save up to 41% when you order by quantity!
  • Buy 25: $4.36 each.
  • Buy 50: $4.20 each.
  • Buy 100: $4.05 each.
Write the first review.

Related Products

The Neutrik NC5MBH-B is a 5-pole male XLR receptacle, grounding: separate ground contact to mating connector shell and front panel, horizontal PCB mount, black chrome shell

Same as A series with exception of a metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC practice.

Neutrik NC5MBH-B Features:

  • Smallest XLR receptacles, highest packing density
  • Metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC and RF protection
  • Housing flammability UL94HB

Neutrik NC5MBH-B Specifications:

  • Electrical:
    • Capacitance between contacts: </= 7 pF
    • Contact resistance: </= 5 mOhm (inner)
    • Dielectric strength: 1.5 kVdc
    • Insulation resistance: > 10 GOhm (initial)
    • Rated current per contact: 3 A
    • Rated voltage: 50 V
    • Grounding Options: Separate ground contact connected to mating connector shell and front panel, no connection to Pin 1
  • Mechanical:
    • Insertion force: </=20 N
    • Withdrawal force: </=20 N
    • Lifetime: > 1000 mating cycles
    • Wiring: Horizontal PCB mount
    • Locking device: Latch lock
    • Mounting direction: rear
    • Chassis shape: B
    • Mounting: A-Screw
  • Material:
    • Contacts: Brass (CuZn35Pb2)
    • Insert: Polyamide (PA 6.6 30 % GR)
    • Locking element: Steel Ck67
    • Ring: Zinc diecast (ZnAl4Cu1)
    • Flange: Black Chromium
  • Environmental:
    • Flammability: UL 94 HB
    • Standard compliance: IEC 61076-2-103
    • Protection class: IP 40
    • Solderability: Complies with IEC 68-2-20
    • Temperature range: -30 °C to +80 °C
