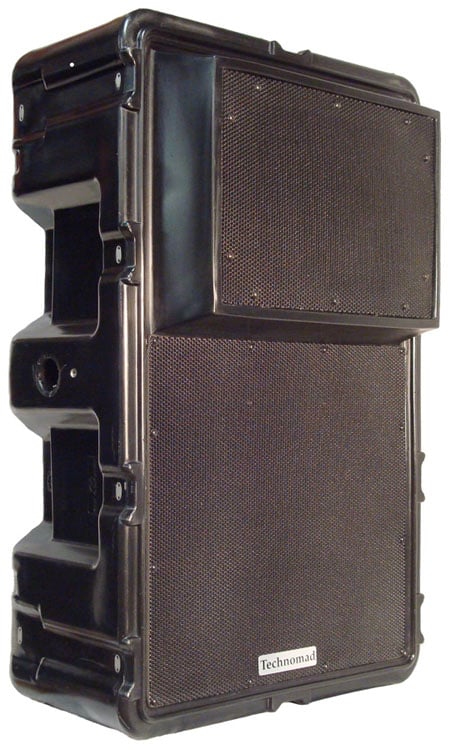

Technomad BERLIN-INSTALL-9040
500W 90x40° Passive 2-Way Speaker


Our Price: $2,541.26
List Price: $2,989.72
You save 15%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Powerful, IP56 weatherproof, 2-way full-range loudspeaker, with two narrow dispersion patterns.  Ideal for applications requiring constant-directivity coverage. The Berlin 90/40 was designed for use in abusive, real-world situations, both on the road or in permanent installations. Combining super-rugged, U.S. Armed Forces road case technology with a number of acoustic innovations, the Berlin 90/40 is a powerful and musically accurate loudspeaker

The Berlin 90/40 is the perfect unit for any application where compact size, high frequency dispersion control and high power are required. The 2" compression driver used in the Berlin provides clean, defined sound in any environment. Technomad's unique cabinet tuning delivers exceptional bass extension, articulation, and pitch. The Berlin is extremely EQ compliant and offers the user unrivaled control over every type of program material. Only the highest quality metalized polypropylene capacitors and heavy gauge inductors are used in Technomad networks, minimizing insertion loss and resulting in smooth response throughout the operating bandwidth. Both high and low frequency drivers are ferro-fluided for longer lifespan and better power handling.


  • Constant directivity 90x40° horn
  • Superb audio quality
  • Fully weatherproof construction
  • Available in bi-amped configuration
  • One-piece, 1/2" thick molded cabinet
  • Molded-in colors will not crack or fade
  • Comprehensive warranty
  • Yoke and bracket mounting points
  • Self-draining cabinet
  • Twelve (12) optional cabinet colors
  • Available in 70v


  • Size: 32.9" x 20.9" x 14.2"
  • Weight: 90 lbs
  • Dispersion: 90 x 40 degrees
  • Freq. Response: 50 Hz - 18 KHz (+/- 2 dB)
  • Sensitivity: 102 dB SPL (1W/1M, swept sine)
  • Continuous Power: 500 Watts (based on EIA test 426B)
  • Impedance: 8 ohms (nominal)
  • Connector: 2 x Speak-On
  • HF Driver: 2" horn-loaded compression driver
  • LF Driver: 15" custom cone driver
