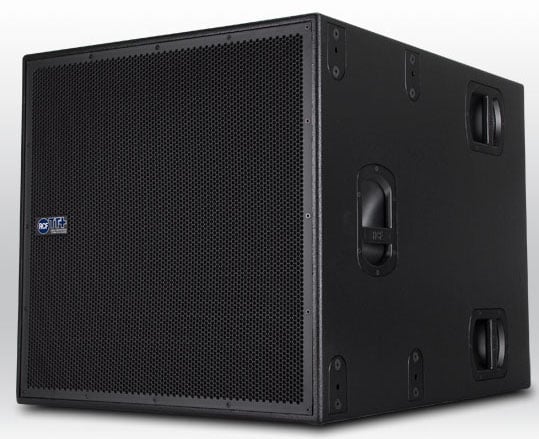

2x18" Reference Subwoofer


Call for price! Not available online.
List Price: $6,795.00

Recommended Accessories

RCF's TTS28-A is a reference, high output, 2 x 18" bass reflex subwoofer module ideal for touring applications. With the digital switching amplifiers, neodymium woofers and well designed structure, it is one of the smallest and lightest double 18" systems available.

A unique feature is the semi charged horn design which at low frequencies around 40 Hz operates as a conventional bass reflex cabinet. However at slightly higher frequencies in the 80 to 100 Hz area, the system operates as a semi charged horn loaded design which provides around 3 to 4 dB more efficiency.


  • Very compact size
  • Maximum output per size available on market
  • Minimum weight
  • 2 x high power full neodymium 18" transducers
  • 2000 Watt switching amplifier
  • XLR in/out, Powercon input
  • Baltic birch cabinet


  • Touring sound reinforcement for large and mid-sized venues
  • Medium to large theatres and night clubs
  • Stadiums, arenas, concert halls and other fixed venue installations
  • Large-scale event reinforcement


Frequency Response -3 dB: 30 Hz √∑ 110 kHz
Max SPL: 139 dB
Woofer: 2 x 18" neo, 100 mm voice coil

Input signal: Bal/unbal
Input connectors: Stereo XLR
Output connectors: Stereo XLR
Input sensitivity: - 2 dBu / +4 dBu

Crossover frequencies: 80 Hz/110 Hz
Protections: Thermal
Limiter: Fast limiter
Controls: 80/110 add crossover phase

Total power: Switching 2000 Watts
Low frequencies: D/2000 Watts
Cooling: Convection
Connections: Powercon in/out

Cabinet Material: Baltic birch
Hardware: Fittings ready
Handles: 6 on side
Pole Mount/Cap: Yes
Colour: Black

Height: 700 / 27.56 mm/inch
Width: 700 / 27.56 mm/inch
Depth: 920 / 36.22 mm/inch
Net Weight: 73 / 160.6 Kg/Lbs
