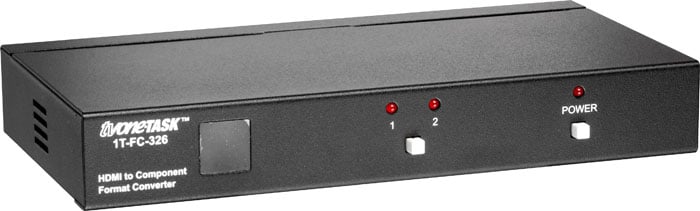

OUR PART # 1T-FC-326
The 1T-FC-326 is a high quality device that allows selection of either of its two HDMI inputs for conversion to an analog YPbPr or YUV output. Very wide video bandwidth insures that the analog output is capable of showing the fine detail present in most HDMI signals. The audio output includes Coaxial Digital and Analog Stereo (R/L) that has been de-embedded from the HDMI digital signal stream.
The unit may be operated either from the front panel buttons or the IR Remote Control. LEDs on the front panel indicate which of the two inputs is selected and if HDCP (Content Protection) is present. It accommodates cables with either standard or locking type connectors. Provisions are made for securing locking type HDMI connectors to the case. The unit requires external 5VDC and an AC Adapter is provided. It has a locking DC connector for added security.
Note: Since this device is HDCP Compliant, a content protected HDMI input may result in no output.
