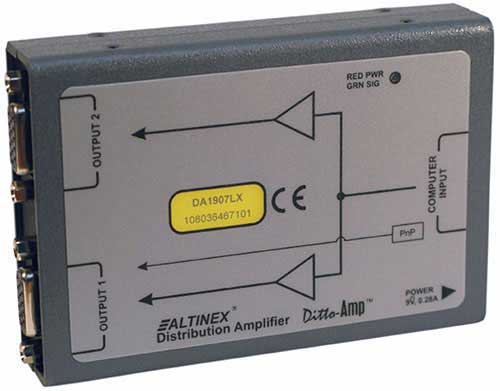

Altinex DA1907LX 1-In 2-OutVGA Distribution Amplifier

The DA190LX (Ditto-Amp) is a high resolution, 1-in 2-out Distribution Amplifier designed to allow the connection of a single VGA-UXGA source to up to two scan-rate compatible displays. Very high-resolution video signals are able to pass without degradation in the image quality.

The DA190XL offers a female 15-pin HD input featuring native plug & play compatibility with output 1. An internal plug & play memory option may be selected at purchase for applications where using the plug & play feature of the remote device is not desired.

Compact and easy to use, the DA190LX is perfect for audio-visual installations where a single computer needs to be connected to a projector (or presentation monitor) and a local monitor simultaneously. The DA190LX has female 15-pin HD (VGA-type) connectors on all input and output connectors so it can be used with readily available standard VGA type cables. If desired, the input and/or output of the DA190LX can be easily adapted to 5BNC connectors through Altinex adapter cables.

The DA190LX is compatible with RGsB, RGBS, and RGBHV signal types, and using the proper cable type the DA190LX can be used with MAC, SUN, or SGI platform computers.

Altinex DA1907LX Distribution Amplifier Features:

• Two buffered outputs
• Ideal for use with LCD/Plasma/DLP Projectors
• VESA DDC (EDID) pass through output #1
• Comes with 3-foot male to male VGA input cable
• Compact design
• Solid metal enclosure
• PNP internal/By-pass
• External Power Supply (9V 500mA) included)
• Includes: (1) power adapter, 3ft male-to-male VGA cable

Altinex DA1907LX Distribution Amplifier Specifications:

• Input Connector: 1 x 15-pin HD female
• Outputs 1 & 2: 2 x 15-pin HD female
• DC Power: 1 x 2.5mm jack
• Compatibility
  • Signal Types: RGB, RGsB, RGBS, RGBHV, YPbPr, MAC, SUN,SGI
  • VideoSignal Resolution: VGA-UXGA; 480p-1080i
• Input Video Signal
  • Analog Signal Level: 1.5V p-p max
  • Impedance: 75ohms
  • Coupling: DC
• Input Sync Signal
  • Horizontal/Vertical or Composite: TTL (+/-)
  • Syncon Green: -0.3V
  • Impedance:10k ohms
• Output Video Signals
  • Gain: 0dB +/-0.5dB
  • Impedance: 75ohms
  • Coupling: DC
• Output Sync Signals
  • Horizontal/Vertical or Composite: TTL (+/-)
  • Syncon Green: -0.3V
  • Impedance:10k ohms
• Power Consumption
  • ExternalAdapter: 9VDC, 280mA (2.5W max.)
• Dimensions (W x H x D): 4.5" x 3" x 1"
• Weight: 0.5 lbs (1 lb shipping)
• Material: 0.1" aluminum
• Finish: Gray
• Top Panel: Lexan
• Operating Temperature: 10°C-35°C
• Maximum Temperature: 45°C
• Humidity: 90% non-condensing
• MTBF (cal.): 40,000 hours
• Accessories Included:
  • 1 x Power Adapter, 1.1A
  • 1 x 3ft Video cable (15-pin HDM-M)
• Optional: MB1001 "L" shaped mini-brackets
