ART PRO-MPA-II
Tube Mic Preamp, 2 Channel

OUR PART #:  PRO-MPA-II

The ART ProMPA II is the next generation in affordable high performance microphone preamp technology.
Learn More
Our Price: $299.00
List Price: $379.00
You save 21%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

ART PRO-MPA-II
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

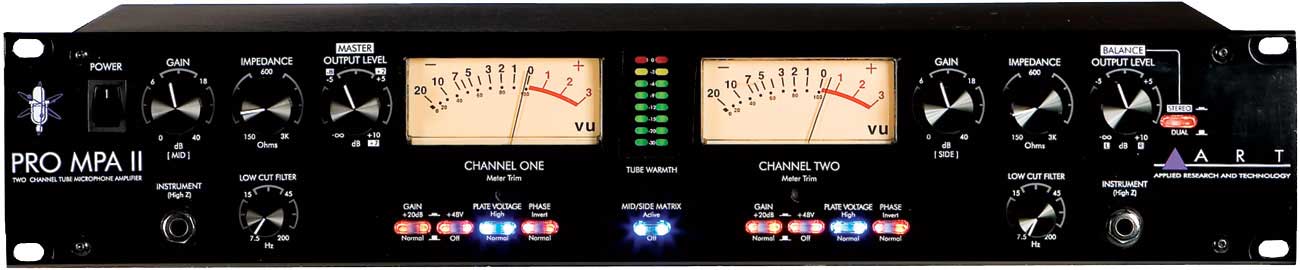

The ART ProMPA II is the next generation in affordable high performance microphone preamp technology. Each microphone input circuit, with selectable 48V phantom power, features variable input impedance which can radically vary the overall performance of any high quality dynamic or ribbon microphone. The ProMPA II can be configured for dual mono or stereo operation with selectable mid/side mic support, summing the adjacent channel, to decode left/right signals.

The ProMPA II can operate at either a low or high plate voltage on the two integrated hand-selected 12AX7 tubes for wider variation of preamp tone and performance. Large back-lit analog VU output meters display input or output levels while multi-colored LED arrays, with average or peak hold, show tube gain.

Housed in a standard 2U rack-mountable steel chassis, with CNC routed black anodized aluminum face panel, the ProMPA II is designed to deliver years of realiable operation in the studio, production facility, or on the road for live sound entertainment.

Features

  • Variable input impedance for flexible microphone voicing (150 ohms to 2400 ohms)
  • Selectable plate voltage
  • Large VU meters
  • Backlit function switches
  • Discrete Class-A input microphone preamplifier
  • Low noise at lower gain settings
  • Extremely low total harmonic distortion (THD)
  • Wide frequency response
  • Additional front mounted instrument input jack
  • Supports mid/side micing technique
  • Operates at +4dBm/-10dBv output
  • Selectable stereo/dual operation of output controls
  • Automatic instrument input selection

Specifications

  • Frequency Response: 15Hz-48kHz (+0, -1dB) @ normal plate voltage; 15Hz-120kHz (+0,-1dB) @ high plate voltage
  • Dynamic Range: >110dB ("A" weighted)
  • CMRR: >90dB
  • THD: <0.005% (typical)
  • Equivalent Input Noise: -129dBu (XLR, "A" weighted)
  • Maximum Input Level: +19dBu (cannon)
  • Maximum Instrument Input: +17dBu
  • Input Impedance: 150-300 ohms adjustable (XLR); >800k ohms (instrument)
  • Maximum Output Level: +27dBu (XLR)
  • Output Impedance: <47 ohms (XLR)
  • Maximum Gain: 75dB
  • Meter Calibration: 0VU = +4dBu output (+4dBu mode); 0VU = -10dBV output (-10dB mode)
  • High Pass Filter: single pole, 10-200Hz adjustable
  • Power Requirements: 105-125 VAC/60Hz (Export units configured for country of destination)
  • Dimensions (H x W x D): 3.5" x 19" x 8.75"
  • Weight: 10.5 lbs
