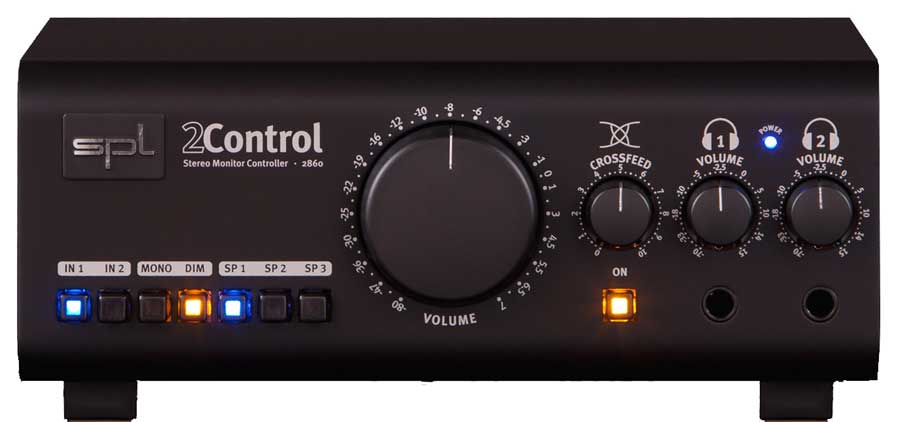

SPL Sound Performance Lab 2CONTROL
Speaker/Headphone Controller

OUR PART #  2CONTROL

Our Price: $779.00
List Price: $879.00
You save 11%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The 2Control combines loudspeaker and headphone monitoring in a compact, user-friendly and high quality control device. Any studio based on a digital audio workstation (DAW) can benefit from its important and essential monitoring functions.

The 2Control with its unique Crossfeed control allows it to judge a stereo panorama on headphones just like with loudspeakers. The unit's concept is consequently based upon duality: two channels, two sources, two loudspeaker sets, two headphones. Control near-field monitors, full-range speakers and headphone monitoring for two listeners from one central unit!

At home, engineers now have an alternative to full range monitors for judging stereo imaging in their mixes. Furthermore, the headphone monitoring is not restricted for analytical listening only, but can serve as full stereo monitoring alternative. And the compact housing makes it easy to transport the 2Control to have familiar monitoring conditions in foreign places. In addition to two stereo speaker sets, you can also connect a mono speaker or a subwoofer.

Specifications:

Inputs & Outputs:

  • Electronically balanced instrumentation amplifiers
  • Input sockets: XLR
  • Output sockets: XLR, Stereo TRS
  • Nominal input level: IN 1: +4dBu, IN 2: +4dBu/-10dBV
  • Input impedance: 22kOhm
  • Output impedance: 75Ohm/Headphones: 22Ohm
  • Max. input level: 21,3dBu
  • Max. output level: 21,3dBu
  • Volume control range: -80dB to +6,6dB
  • Headphones: -65dB to +14,9dB

Measurements:

  • Frequency range: 10Hz to 100kHz (-3dB)
  • CMRR: ›60dB (@1kHz, 0dBu input level, unity gain)
  • THD&N: 0,002% (@1kHz, 0dBu input level, unity gain)
  • Signal to noise ratio: -96dB/Headphones: -85dB (A-weighted)
  • Crosstalk L/R: ›70dB (@1kHz)
  • Dynamic range: 116dB
  • Power consumption: ca. 25W

Power Supply:

  • Features: Toroidal transformer with voltage selector
  • Fuses (slow blow): 230V/50Hz: 315mA, 120V/60Hz: 630mA

Dimensions and Weight:

  • Housing (BxHxT): 215x80x220mm
  • Depth w. controls & sockets: 245mm
  • Height with feet: 95mm
  • Front height w. opened feet: 126mm
  • Weight: 2.1kg



SPL Sound Performance Lab 2CONTROL
Speaker/Headphone Controller

OUR PART #  2CONTROL

Product Information:

The 2Control combines loudspeaker and headphone monitoring in a compact, user-friendly and high quality control device. Any studio based on a digital audio workstation (DAW) can benefit from its important and essential monitoring functions.

The 2Control with its unique Crossfeed control allows it to judge a stereo panorama on headphones just like with loudspeakers. The unit's concept is consequently based upon duality: two channels, two sources, two loudspeaker sets, two headphones. Control near-field monitors, full-range speakers and headphone monitoring for two listeners from one central unit!

At home, engineers now have an alternative to full range monitors for judging stereo imaging in their mixes. Furthermore, the headphone monitoring is not restricted for analytical listening only, but can serve as full stereo monitoring alternative. And the compact housing makes it easy to transport the 2Control to have familiar monitoring conditions in foreign places. In addition to two stereo speaker sets, you can also connect a mono speaker or a subwoofer.

Specifications:

Inputs & Outputs:

  • Electronically balanced instrumentation amplifiers
  • Input sockets: XLR
  • Output sockets: XLR, Stereo TRS
  • Nominal input level: IN 1: +4dBu, IN 2: +4dBu/-10dBV
  • Input impedance: 22kOhm
  • Output impedance: 75Ohm/Headphones: 22Ohm
  • Max. input level: 21,3dBu
  • Max. output level: 21,3dBu
  • Volume control range: -80dB to +6,6dB
  • Headphones: -65dB to +14,9dB

Measurements:

  • Frequency range: 10Hz to 100kHz (-3dB)
  • CMRR: ›60dB (@1kHz, 0dBu input level, unity gain)
  • THD&N: 0,002% (@1kHz, 0dBu input level, unity gain)
  • Signal to noise ratio: -96dB/Headphones: -85dB (A-weighted)
  • Crosstalk L/R: ›70dB (@1kHz)
  • Dynamic range: 116dB
  • Power consumption: ca. 25W

Power Supply:

  • Features: Toroidal transformer with voltage selector
  • Fuses (slow blow): 230V/50Hz: 315mA, 120V/60Hz: 630mA

Dimensions and Weight:

  • Housing (BxHxT): 215x80x220mm
  • Depth w. controls & sockets: 245mm
  • Height with feet: 95mm
  • Front height w. opened feet: 126mm
  • Weight: 2.1kg
