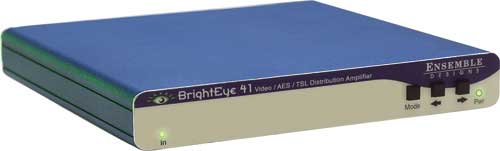

Ensemble Designs BrightEye 41
Video/AES/Tri-Level Sync Distribution Amplifier

OUR PART #:  BE-41

The BrightEye 41 is a distribution amplifier that accepts analog video, AES, or HD Tri-Level Sync signal. It provides unity gain fan out over a frequency range of DC to 10MHz.
Learn More
Our Price: $237.50
List Price: $250.00
You save 5%!
Write the first review.
Ensemble Designs BrightEye 41
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The BrightEye 41 is a distribution amplifier that accepts analog video, AES, or HD Tri-Level Sync signal. It provides unity gain fan out over a frequency range of DC to 10MHz. It can handle composite and component analog video, coaxial AES digital audio, or a High Definition Tri-Level Sync signal.

When using a digital to analog video converter and multiple outputs are needed, BrightEye 41 can be used to distribute and provide those additional output signals. BrightEye 41 works well with video converters BrightEye 10 and BrightEye 16. BrightEye 41 is also useful in conjunction with the BrightEye 54 sync pulse generator and test signal generator for distributing Tri-Level Sync, AES and composite signals.

This is a simple device with no USB port and no interface for BrightEye Mac or PC software. Front panel indicators show the presence of an input signal and power.

Applications

  • Use with Converter and SPGs in order to have more outputs
  • DA for Analog Video Signals
  • DA for High Definition Tri-Level Sync
  • DA for AES Digital Audio

Input Signal

  • Number: One, terminating
  • Signal Type: NTSC/525, PAL/625
    Composite video, AES digital audio or HD Tri-Level Sync
  • Impedance: 75 ohms
  • Return Loss: >40dB to 5MHz

Output Signal

  • Number: Four
  • Signal Type: Follows Input
  • Impedance: 75 ohms
  • Return Loss: >40dB to 5MHz
  • DC Offset: Follows input +/-50mV
  • Delay: 10 ns (14 deg. NTSC, 17 deg. PAL)
  • Frequency Response:
    +/-0.1 dB, 0 to 5.5 MHz
    +/-0.3 dB, 0 to 10 MHz
  • Signal to Noise: 68dB
  • K Factor: 2T pulse <0.25%
  • Differential Phase: 10-90% apl <0.1 deg
  • Differential Gain: 10-90% apl <0.15%
  • Gain Stability: <0.2dB variation over operating temp

General Specifications

  • Size (W x H x D): 5.625" x 0.8" x 5.5", including connectors
  • Power: 12V, 1W (100-230 VAC modular power supply)
  • Temperature Range: 0 to 40 deg. ambient
  • Relative Humidity: 0 to 95 non-condensing
