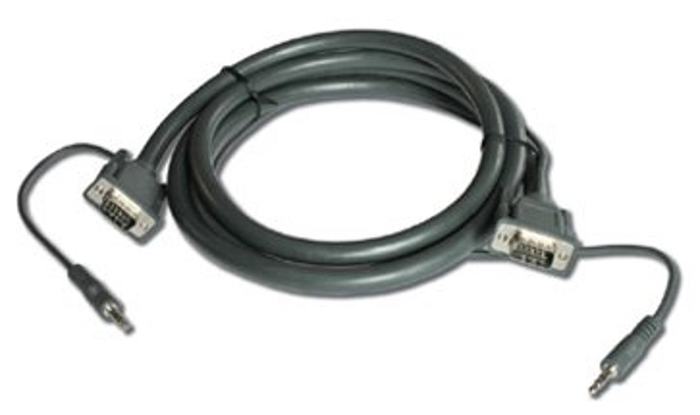

Kramer C-GMA/GMA-10
A/V Cable, 15-Pin to 15-Pin VGA & 1/8" Male to 1/8" Male, 10 Feet

OUR PART #:  C-GMA/GMA-10

Kramer’s GMA series are high performance cables with male 15-pin HD and 3.5mm stereo audio connectors at each end.
Learn More
Our Price: $16.00
List Price: $20.00
You save 20%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Kramer C-GMA/GMA-10
Qty:
Similar Products

Kramer’s GMA series are high performance cables with male 15-pin HD and 3.5mm stereo audio connectors at each end. They are perfect for computer graphics video to display installations which require an audio signal as well.

Features:

  • Quality Construction - Constructed using our rugged and flexible 14 conductor cable.
  • Easy Connection - Pre-terminated with molded 15-pin HD connectors (male to male), gold plated pins and thumbscrews for easy connection and a 3.5mm stereo mini jack.
  • Easy Installation - Audio leads extend 8 inches (20 cm) beyond the 15-pin HD connector on one end and 24 inches (61 cm) on the other.
  • Cable Specs - See Kramer BC-3X2T7S for detailed cable specs.

Coax Specifications:

  • Conductor: 26 AWG 7/34 tinned copper.
  • Dielectric: Foam polyethylene with red, green, blue color coding.
  • Inner Jacket: PVC.
  • Jacket Colors: Black.
  • Shield:
       * (A) 90% spiral 38 AWG tinned copper.
       * (B) aluminum-foil/mylar 25% overlap rate.

Diameter:

  • Center Conductor: 0.019 inches, 0.48mm.
  • Dielectric: 0.076 inches, 1.95mm.
  • Individual Coax: 0.102 inches, 2.6mm.

Electrical Specifications:

  • Attenuation (dB/100 ft.):
       * -0.5 dB @ 1MHz.
       * -1.3 dB @ 5 MHz.
       * -1.9 dB @ 10 MHz.
       * -4.0 dB @ 50MHz.
       * -5.7 dB @ 100MHz.
       * -8.0 dB @ 180MHz.
       * -14.0 dB @ 400MHz.
  • Capacitance: 17.3pF per foot, 57pF per meter.
  • DC resistance: 45 ohms per 1000ft, 148 ohms per km.
  • Impedance: 75 ohms
  • Temperature: 68° to 167° fahrenheit, - 20° to 75° celsius.

General Specifications:

  • Outer Diameter: 0.393 inches, 10.0mm.
  • Outer Jacket Color: Dark gray w/white lettering.
  • Outer Jacket: PVC.
  • Shield:
       * (A) 85% braid 36 AWG tinned copper.
       * (B) aluminum-foil/mylar 25% overlap rate.

Regulatory Specifications:

  • CSA: C(UL) CL2.
  • UL: CL2.

Shielded Pair Specifications:

  • Conductor: 26 AWG 7/34 tinned copper.
  • Diameter: 0.34 inch, 0.88mm.
  • Jacket Colors: White & white/black, red & red/black.
  • Jacket: HD Polyethylene.
  • Shield:
       * (A) 85% braid 36 AWG tinned copper.
       * (B) mylar 25% overlap rate.

Single Strand Specifications:

  • Conductors: 26 AWG 7/34 tinned copper.
  • Diameter: 0.34 inch, 0.88mm.
  • Jacket Colors: Red, orange, brown, yellow, black, red/black.
  • Jacket: HD-polyethylene.
