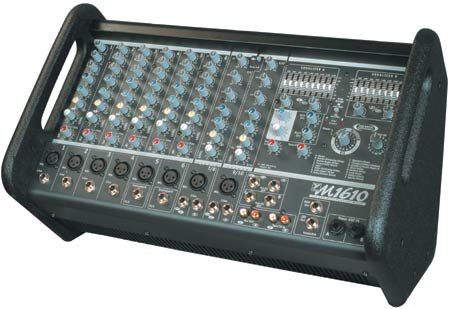

Yorkville M1610-2
Powered Mixer, 16Ch, 800W

OUR PART #:  M1610-2

The M1610 is the most versatile compact powered mixer on the market.
Learn More
Our Price: $999.00
List Price: $1,399.00
You save 29%!
Write the first review.
Yorkville M1610-2
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The M1610 is the most versatile compact powered mixer on the market. The convenient, lightweight and compact box mixer with the tilt-back visibility and channel control access of a desk mixer makes it an ideal high power, high quality solution. High-powered, high-efficiency class-H power amplifiers, advanced input strips, on-board DSP, effective master EQ section and ten very useful and usable input channels complete the wedge mixer package.

The 1600-watt M1610 has two integrated 800-watt power amplifiers that can be assigned as stereo mains, or mono main and mono monitor. Each amplifier is attached to an innovative master EQ section designed specifically for these new mixers. The master EQ has a 9-band graphic EQ with additional high and low shelving EQ’s at either end of the frequency band. The nine graphic sliders are essentially all of the middle bands of a 15-band graphic EQ with the low and high frequency bands covered by separate shelving controls. This gives the user more control over the feedback-prone mid frequency bands; with high and low tone-shaping frequencies controlled by additional simple +/- 15 dB trim controls.

The M1610 has 10 input channels. The first six channels have balanced XLR microphone and TRS balanced inputs, input trim control, three-band EQ, master volume and trim set light. The mono line inputs on channels 5 and 6 are pre-EQ’d for Hi-Z instrument level input, making them an ideal place to start when looking for that perfect live acoustic guitar or direct bass sound. When the input trim level is properly set, users will have ample overall gain while taking full advantage of the new clip elimination circuit which makes it virtually impossible to distort the input of the microphone and instrument channels.

Yorkville Box Mixers feature 15mm plywood and heavy-gauge metal construction to withstand all the rocking and rolling associated with life on the road. Inside we use high quality epoxy circuit boards coated with thick copper laminate and precision, low noise components. A large heatsink and a variable speed fan ensure that the mixers keep their cool. Of course MicroMIX™ mixers also come with Yorkville's standard two year (even if you break it!) transferable warranty in the USA and Canada. These are just a few of the characteristics which make MicroMIX™ mixers the "Best Bang for the Box".


  • 10 Channels
  • 800 watts per channel @ 4 ohm (Assignable Left/Right or Main/Monitor)
  • Gold plated dual contact XLR connectors (all channels)
  • TRS balanced inputs (dual inputs for stereo channels 7/8 and 9/10)
  • Set LED's for easy and proper adjustment of Trim control
  • 3 bands of EQ on channel strips
  • 9 band graphic EQ for each output with shelving EQ for precise control
  • Built in Digital Effects
  • Footswitch jack for bypassing effects
  • Mute switch (channels 1-8) for quick change-over between band and DJ
  • Dual RCA Tape/CD In and Rec Out jacks


  • Number of Channels 10
  • Mono Channel EQ Low, Mid, High
  • Stereo Channel EQ Low, Mid, High
  • Channel Effects All Channels
  • Monitors Effects Yes
  • Balance Controls Ch. 7 - 10
  • Pan Controls Ch. 1 - 6
  • Channel Overload Protection Ch. 1 - 6
  • Inputs - XLR (bal) 8
  • Inputs - 1/4" 10
  • Inputs - RCA (unbal) 1 Pair
  • Mute Switches Global 1 - 8
  • Activity / Solo LED Trim Set Ch. 1 - 6
  • Clip /Mute LED All Channels
  • Phantom Power 48V + LED Indicator
  • Internal Effects 24 Bit stereo, 16 Effects with Parameter Pot
  • Auxiliary Sends Effect - Monitor
  • Effects Send Yes
  • Effects Return Internal
  • Effects Return to Main Yes
  • Effects Return to Monitor Yes
  • Reverb / Effects Footswitch Yes
  • Record Outputs Stereo RCA Pair
  • Max Gain to Line Out -Mic Input (dB) +84
  • Max Gain to Line Out -Line Input (dB) +82
  • Master EQ -1 (type /Channels /Range - dB) Graphic 9 band (160hz-6.3khz) +2 band Shelving
  • Monitor EQ -1 (type /Channels /Range - dB) Graphic 9 band (160hz-6.3khz) +2 band Shelving
  • Main Outputs ( Line Level) 2 x 1/4inch TRS
  • Main Amp Inputs (Line Level) 2 x 1/4inch TRS
  • Monitor Outputs (Line Level) 1 x 1/4inch TRS
  • Outputs - Amp A - 1/4" Jacks 2
  • Outputs - Amp A - Speakon 4-pin 1
  • Outputs - Amp B - 1/4" Jacks 2
  • Outputs - Amp B - Speakon 4-pin 1
  • Mixer - Signal to Noise Ratio (dB) 101
  • Mixer - Frequency Response (Tone and EQ Flat,+/-2dB) 20 - 20,000
  • Mixer - Input Referred Noise to line out, @ 150 Ohms (dBv) -119
  • Mixer THD (Main out w/ -10dB input) 0.01%
  • Amp A - Power Output @ 8 Ohms (0%1"THD, 1kHz) 600
  • Amp A - Power Output @ 4 Ohms 800
  • Amp A - Power Output -other 600 @ 2 ohms
  • Amp B - Power Output @ 8 Ohms (0%1"THD, 1kHz) 600
  • Amp B - Power Output @ 4 Ohms 800
  • Amp B - Power Output -other 600 @ 2 ohms
  • THD - 1kHz (dB) 0.1%
  • THD - 20Hz-20kHz (dB) 0.5%
  • Hum and Noise (un / Aweight -dB) -101
  • Typical crosstalk -1 kHz (dB) better than -60db
  • Input Impedance - Bal/Unbal (Ohms) 20k / 10k ohms
  • Input Sesitivity (Vrms Sine) 1.4
  • CMRR @ 60Hz (min/typ) -37db / -60db
  • Max Votage Gain (dB) 32
  • Power Consumption (typ/max) 6.4A @ 60hz / 3.3A @ 50Hz
  • Protection Thermal, Short Circuit, Current, Clip
  • Cooling 2 x 80mm Fans
  • Transformer Type Toroidial
  • Finish Grey and Black Powder Coat
  • Chassis Construction Steel and Aluminum
  • Rackmount Yes (Kit Available - 6U)
  • Other Features Tiltback or Upright Wedge Angles
  • Dimensions (DWH, inches) 11.1 x 18.6 x 11
  • Dimensions (DWH, cm) 28 x 47 x 28
  • Weight (lbs/kg) 31.3 / 14.2

* Specifications subject to change without notice
