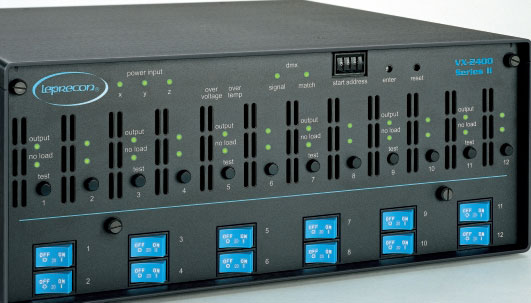

Leprecon VX2400ULX/WP
VX Series 12-Channel Dimmer Pack (with ULX Load Panel Option)

OUR PART #:  VX2400ULX/WP

Our Price: $4,051.00
List Price: $4,765.71
You save 15%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Leprecon VX2400ULX/WP
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Leprecon's VX Series II digital dimmers' solid design and construction assure that they will handle the most demanding conditions on the road and at home in any theatrical installation.

Leprecon VX2400ULX/WP Dimmer Pack Features:

  • Front accessible power devices
  • DMX signal & DMX signal match indicators
  • ULX load panel option: U Ground outlets, 2 per channel (24 total)

Leprecon VX2400ULX/WP Dimmer Pack Specifications:

  • Load Capability: 12 Channel (2.4 kW per channel, 28.8kW total)
  • Power Input (Term Lug): 105-124VAC 60HZ
    240VACAvailable
  • Three Phase–Single Phase Optional: Three 80 Amp Circuits
  • Three Phase/Single Phase (Switchable): Three 80 AmpCircuits
    (Stage Pin / U-Ground Models) (SCLX Models): Two 120 AmpCircuits
  • DMX-512 (In-Out): 5 Pin XLR Connector
  • Optional Analog Input (8 CJC 2 each): Input Impedance-200Kohm
  • Analog Control Range: Maximum +5 to 24 Volts
  • Cooling: 100% Duty Cycle
  • Minimum Load (For Proper Function): 15 Watts Per Channel
  • Full On Test Switch: Locking
  • Easy Access Front Removable Power Devices (No Tools Required):12 Removable SCR Modules
  • Magnetic Circuit Breakers: 20 Amp Breaker
  • Overtemp Protection: LED Indication
  • Snapshot Memories: 10
  • Curve: Within 5% of "Square Law"
  • Filtering-Rise Time: 400 Microseconds
  • Output Range: 97.5% of Line Voltage
  • Output Indicator (per Channel): LED
  • No Load Indicator (per Channel): LED
  • Conduction Angle Range: 0-180°
  • SAVX-Kit Stand Alone Kit: Optional
  • Dimensions: 7"H x 19"W x 17" D
    (E.I.A. 19” Standard RackMount)
  • Net Weight: 54 lbs.
